SGE SilFlow™ Stainless Steel Micro-Fluidic Platform

SGE SilFlow™ Stainless Steel Micro-Fluidic Platform
Hover over image to zoom

Improves your Gas Chromatography Connectivity

Description

SGE's SilFlow™ is an innovation in design and fabrication resulting in a highly efficient and reliable micro fluidic platform that improves your GC connectivity to enable maximum chromatography performance. SilFlow is a microchannel device (MCD) with options for 3 port GC splitters (allowing flow splitting options with three different configurations), 4 port GC splitters (offering similar configuration flexibility as the 3 port solution), and a Dean's switch MCD, perfect for multidimensional analyses.

Application

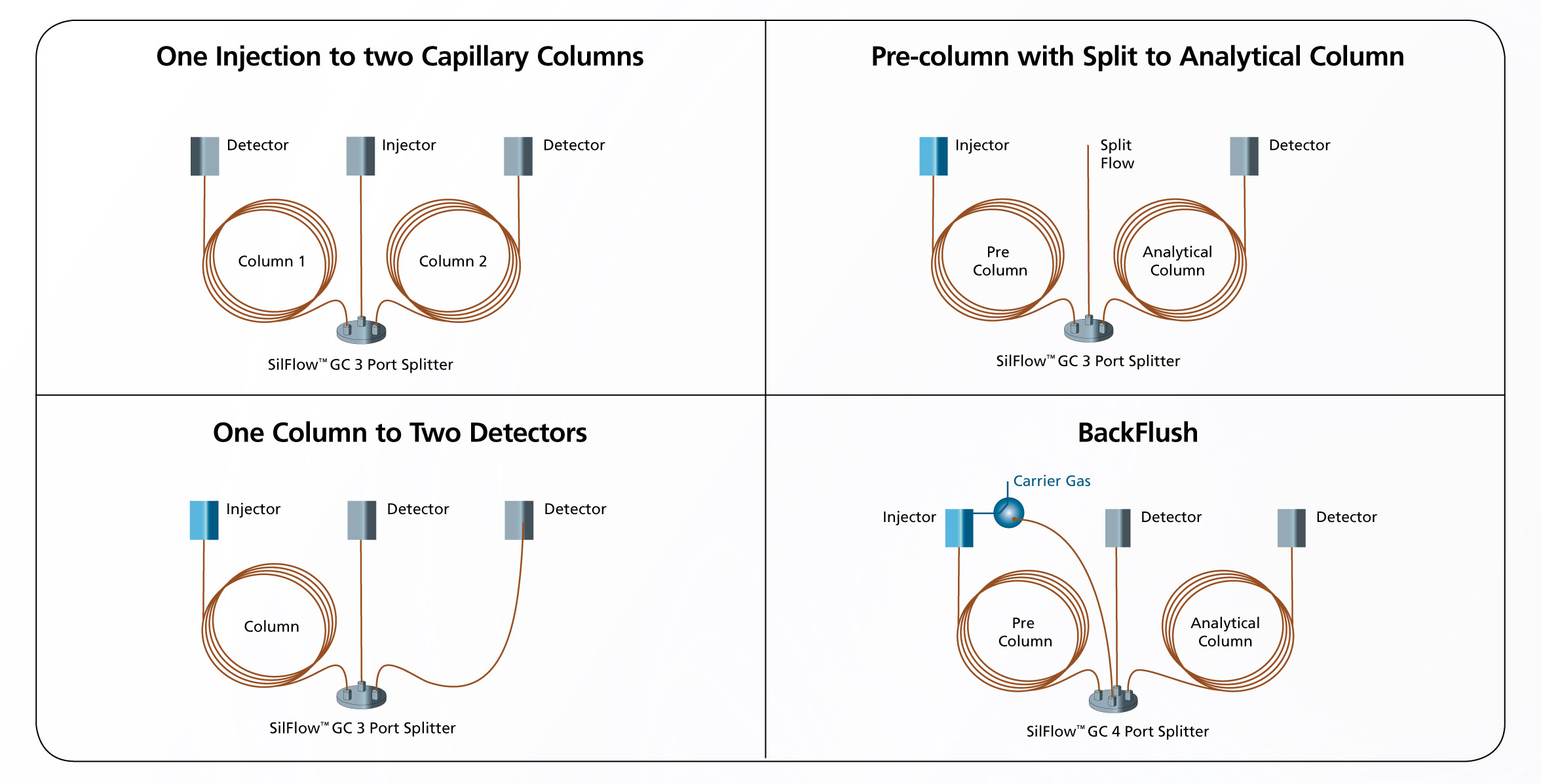

Some suggested application configurations for use with SGE's SilFlow splitters.

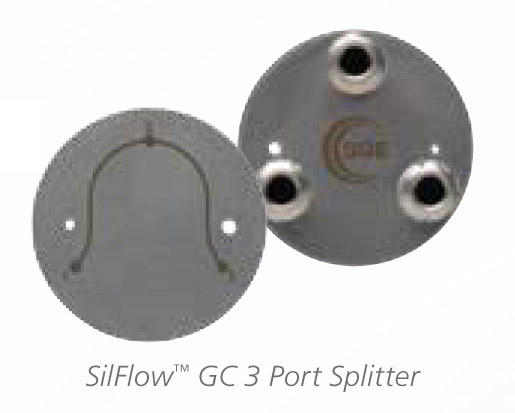

SilFlow™ 3 Port Splitter GC

The SilFlow™ three port splitter is ideal for splitting one injection to two columns, on column to two detectors, or for use in connecting a pre-column to and analytical column.

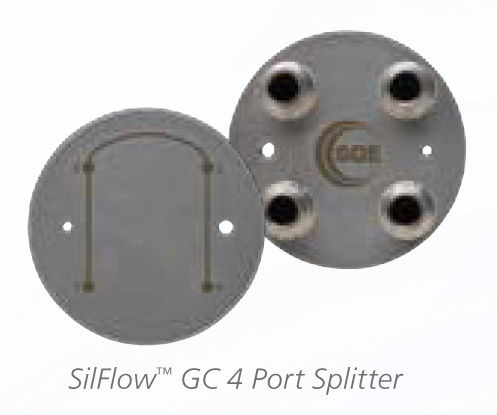

SilFlow™ 4 Port Splitter GC

The SilFlow™ four port splitter has the added flexibility for incorporating additional gas flows (such as in back flushing) or adding additional detector capability. The four port splitter can function like a three port splitter simply by blocking off one of the ports.

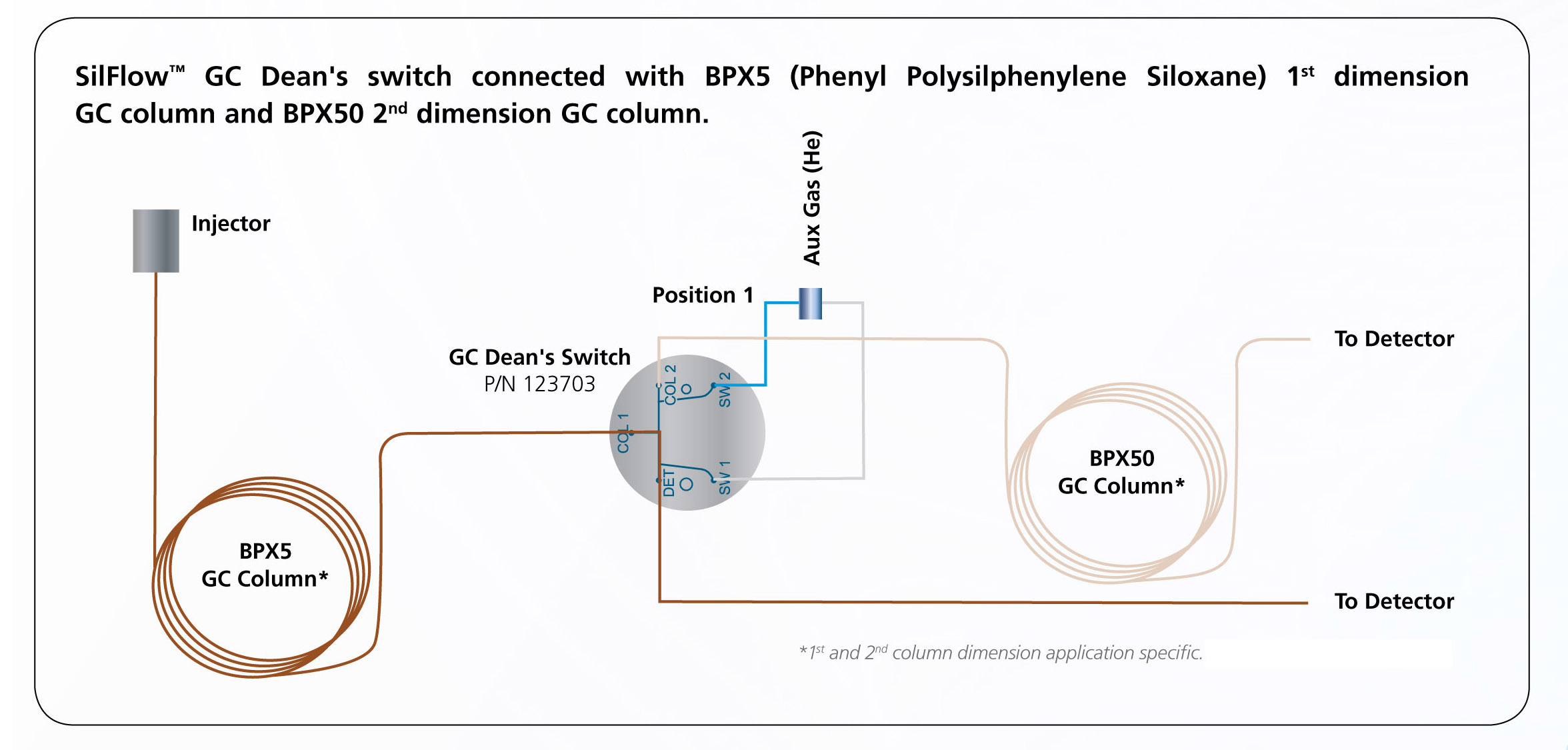

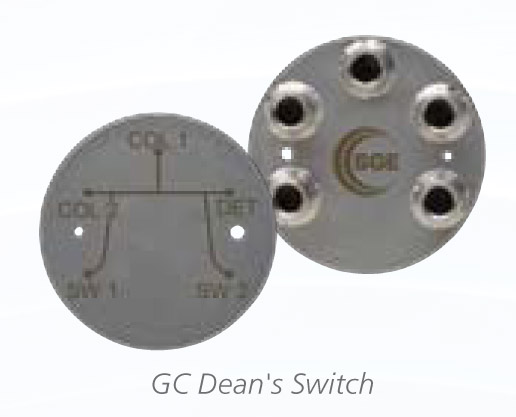

SilFlow™ GC Dean's Switch

The SilFlow™ Deans Switch MCD is specifically designed for GC x GC configurations where separations take place on a first dimension GC column and analytes of interest are further resolved on a second dimension GC column. The design of the MCD allows for effective modulation between these two dimensions using and auxiliary gas flow.

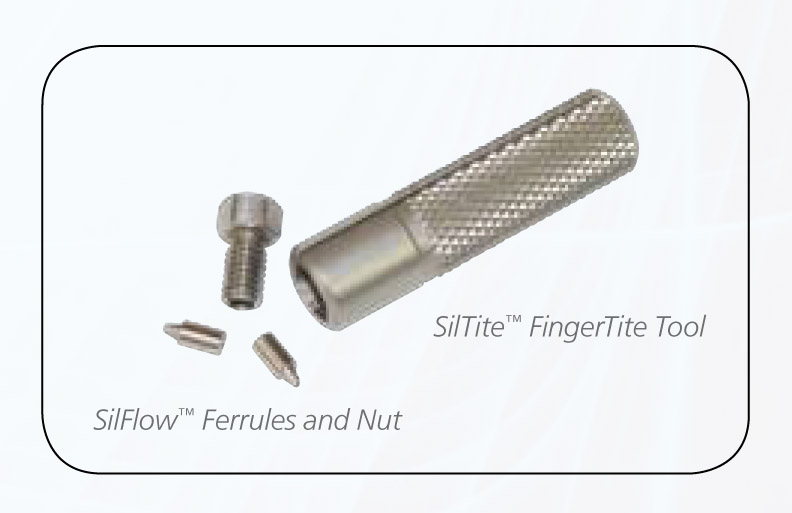

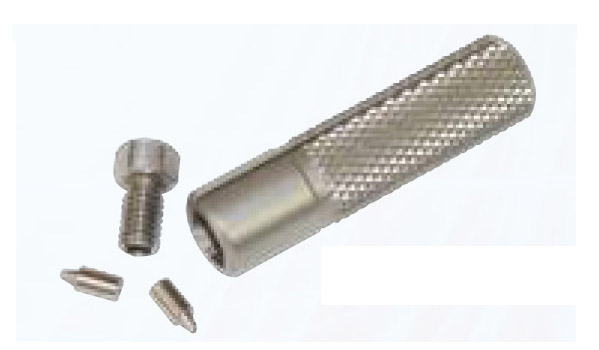

SilFlow™ Replacement Parts

The following are consumable items for the SilFlow™ wafers. Nuts, ferrules and FingerTite tool.

Features

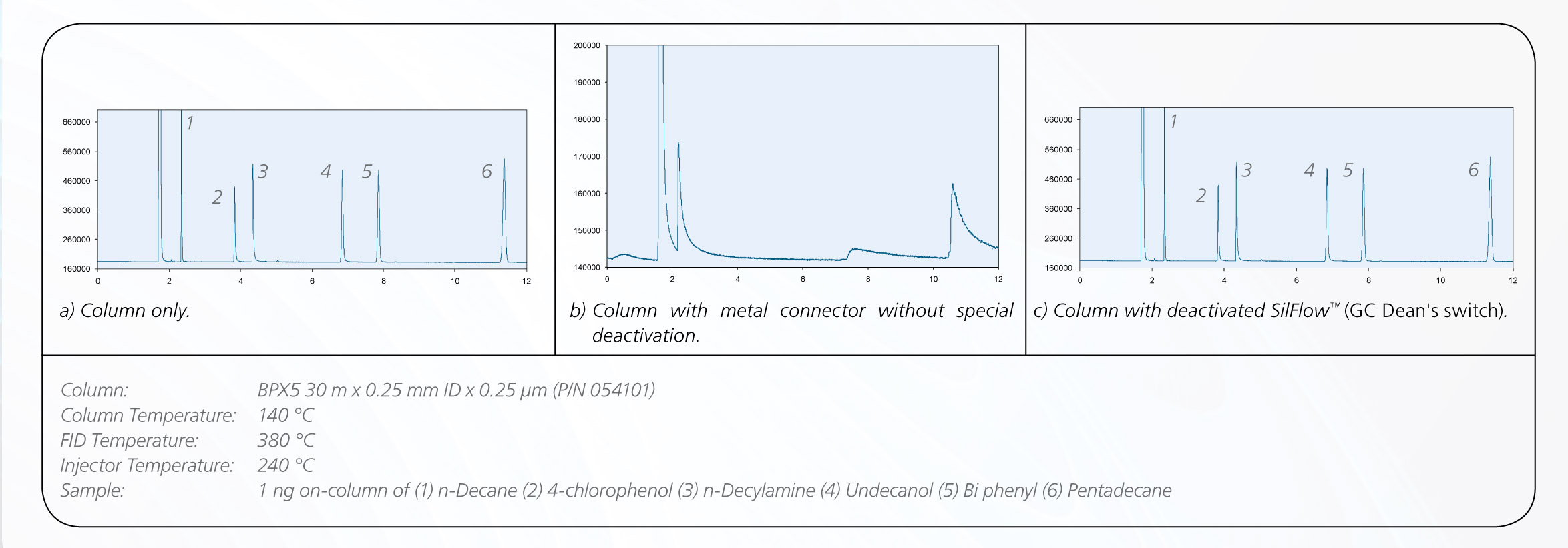

Chemically Inert

  • Enabled by SGE's expertise in surface chemistry, SilFlow features chemically deactivated stainless steel channels avoiding active sites experienced with conventional connections
  • SilFlow can be incorporated into your system without impacting your chromatography

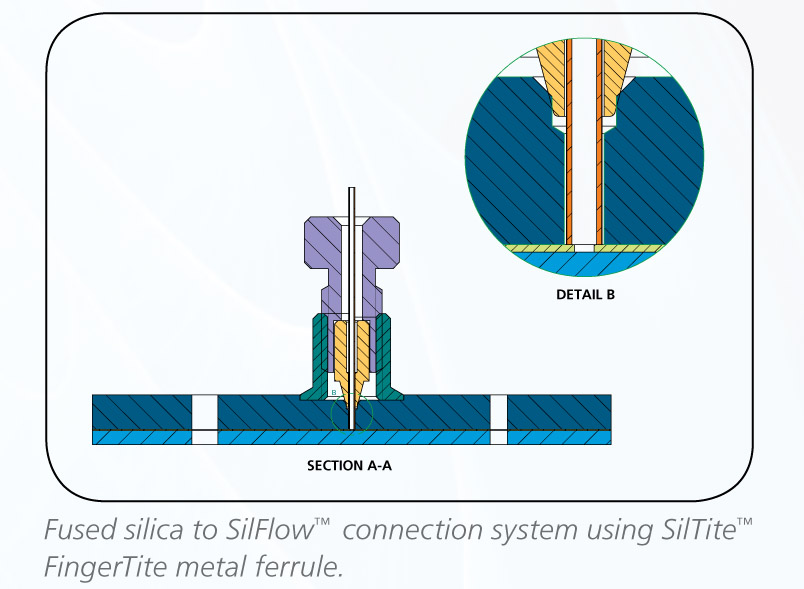

Low Dead Volume Connections

  • Conventional graphite or vespel ferrules cannot be used with the SilFlow MCD as the dimensional stability is not adequate and there is a risk of contaminating the channels
  • SilTite™ FingerTite metal ferrules result in a reliable zero dead volume connection, giving you optimized peak shapes

Superb Operational Stability

  • Pressure Capability - The SilFlow system can be operated at pressures greater than 25,000 psi (170,000 kPa)
  • Thermal Lag - SilFlow tracks oven temperature up to 20 °C/min. The design of SilFlow alleviates cold spots and sample condensation
  • Maximum Temperature - No practical temperature limit. Limited only by the temperative rating of the GC column being used - ≤ 420 °C

Easy to Install and Leak Free

  • SilFlow kits incorporate SilTite™ FingerTite fittings that are easy to set up and can be tightened using finger force to achieve a perfect, reliable seal, even for the most sensitive MS systems - no wrenches required
  • Install kits - include SilFlow™ micro-channel device, SilTite™ FingerTite tool, mounting bracket, appropriately sized ferrules, nuts, and blanking ferrules.
Part No. Description pkg of Quantity
In Stock
UOM Price Order
SilFlow™ 3 Port Splitter GC
123720 SILFLOW 3 PORT SPLITTER GC KIT (1.1) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$697.40
Qty
123721 SILFLOW 3 PORT SPLITTER GC KIT (0.53) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$697.40
Qty
123722 SILFLOW 3 PORT SPLITTER GC KIT (0.25) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$697.40
Qty
123723 SILFLOW 3 PORT SPLITTER GC MCD (1.1) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$474.90
Qty
123724 SILFLOW 3 PORT SPLITTER GC MCD (0.53) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$474.90
Qty
123725 SILFLOW 3 PORT SPLITTER GC MCD (0.25) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$474.90
Qty
SilFlow™ 4 Port Splitter GC
123730 SILFLOW 4 PORT SPLITTER GC KIT (1.1) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$780.80
Qty
123731 SILFLOW 4 PORT SPLITTER GC KIT (0.53) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$780.80
Qty
123732 SILFLOW 4 PORT SPLITTER GC KIT (0.25) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$780.80
Qty
123733 SILFLOW 4 PORT SPLITTER GC MCD (1.1) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$557.30
Qty
123734 SILFLOW 4 PORT SPLITTER GC MCD (0.53) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$557.30
Qty
123735 SILFLOW 4 PORT SPLITTER GC MCD (0.25) 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$557.30
Qty
SilFlow™ GC Deans Switch
123703 SILFLOW DEANS SWITCH KIT 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$836.40
Qty
123726 SILFLOW DEANS SWITCH MCD 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$613.90
Qty
SilFlow™ Replacement Parts
123704 SILFLOW NUTS 0.36MM - OD-1.07OD PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$95.80
Qty
123705 SILFLW FINGERTITE FERR FOR 1.07MM OD SS TUBE PK5 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$34.00
Qty
123706 SILFLOW FINGERTITE FERR 0.4MM ID PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$66.00
Qty
123707 SILFLOW FINGERTITE FERRULE 0.5MM ID PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$66.00
Qty
123709 SILFLOW FINGERTITE FERRULE 0.7MM ID PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$66.00
Qty
123713 SILFLOW FINGERTITE FERRULE 0.35MM ID PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$66.00
Qty
123715 SILFLOW BLANKING PINS PK5 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$37.10
Qty
123717 SILFLOW FINGERTITE TOOL --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$50.00
Qty
123742 SILFLOW FINGERTITE FERRULE 0.8MM ID PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$66.00
Qty
123743 SILFLOW FINGERTITE FERRULE 0.55MM ID PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$66.00
Qty
123744 SILFLOW FINGERTITE FERRULE 0.75MM ID PK10 --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. PK$66.00
Qty
123755 SILFLOW SLEEVED SS CAP TUBING --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$39.70
Qty
123750 SILFLOW DEACTIVATED FS TUBING 2M X 50UMID X 363UM --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$32.00
Qty
123751 SILFLOW DEACTIVATED FS TUBING 2M X 100UMID X 363UM --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$32.00
Qty
123752 SILFLOW DEACTIVATED FS TUBING 2M X 150UMID X 363UM --- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$32.00
Qty
