Celestron® Handheld Digital Microscope (HDM)

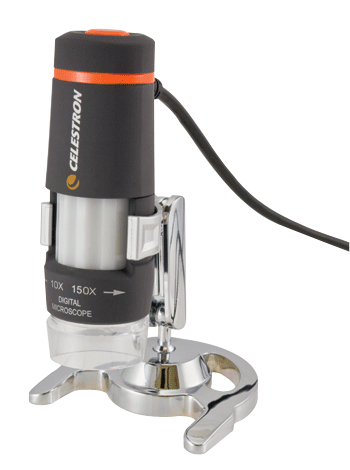

Figure: Microscope without stand.

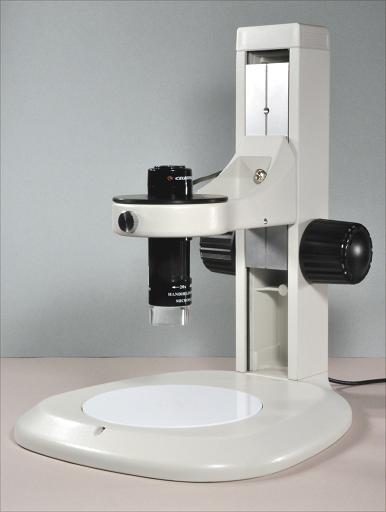

Figure: Microscope with optional stand.

You view and capture images (snapshots or video) at 20x power or 400x power on a PC or laptop computer with the attached USB cable.

SIS has custom designed an adjustable stand to hold the microscope for convenient use and easy focusing. Alternatively the microscope can be removed from the stand and be used as a handheld microscope. This microscope can be used in virtually every area that a traditional microscope is used.

General Features

• View and/or capture images or video with your computer.
• Adjustable focusing stand for ease of use (optional)
• Powers Available - Switchable between 20x and 400x
• Video Frame Rate - 15 or 30fps
• White LED illumination
• USB 2.0 cable to connect to PC. Powered entirely through the USB Cable.
• Knurled ring on the microscope for focusing
• Microscope compact size - 5" x 1.375" (127 mm x 35 mm). Weighs just 3 oz. (85 grams) without stand.
• CD-ROM - with PC software & driver. Software enables picture capture and adjustment. Image what you see with the click of a button for snapshots or video with the provided software or use your own photoimaging software programs.
• Built-in digital camera for viewing and imaging - resolution 0.3mp using a 1/4" CMOS chip (640 x 480 pixels) li>Field of View - 2.1 degrees (7.5mm)@ 20X smf 0.4 degrees (1.0mm) @ 400X
• Operating Range & Storage Temperature - 5 to 122 F (-15 to 50C)
• Very portable - 5" x 13/8" (127mm x 35mm)
• Warranty - two year limited
• CE/FCC/RoHS Compliant

Some applications:

• Dynamic tuning/monitoring electrospray
• Monitoring MALDI targets
• Forensic work
• Examine circuit boards and welds

Computer requirements

• Operating Systems - Microsoft Windows 98/2000/ME/XP/Vista. Apple Macintosh OS X version 10.3 and newer driver can be downloaded also.
• USB Port

Ordering

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
44300	MICROSCOPE-DIGITAL HANDHL	0	3	$139.95
44301	DIGITAL MICROSCOPE+STAND	0	2	$495.95
Ordering information. International (non-US) prices available through your local dealer.

SIS can machine custom stands.

Examples

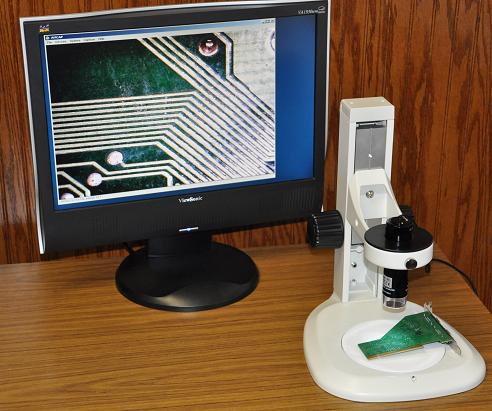

Figure: Viewing circuit board.

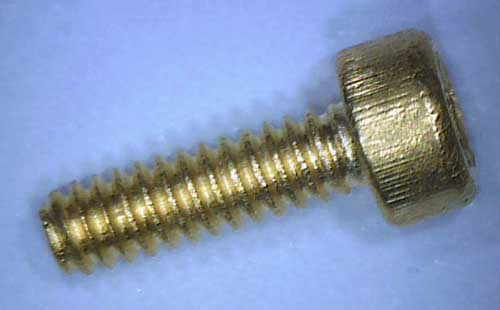

Figure: Gold plated screw.

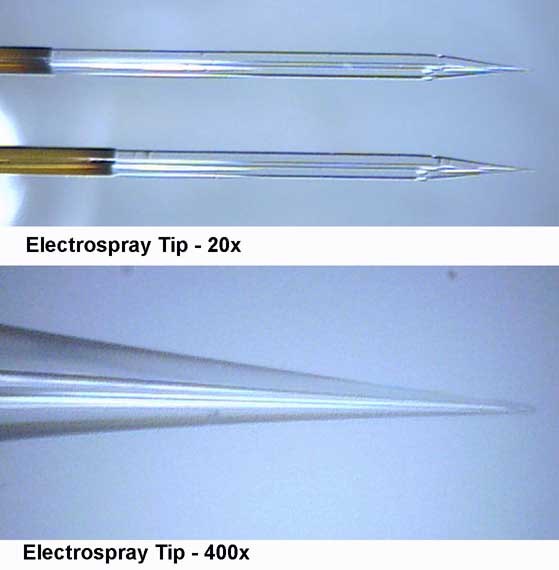

Figure: Electrospray tips

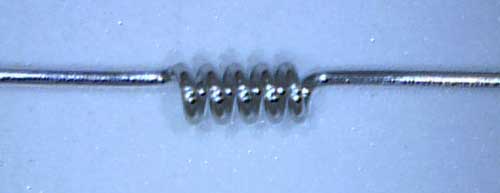

Figure: Coil

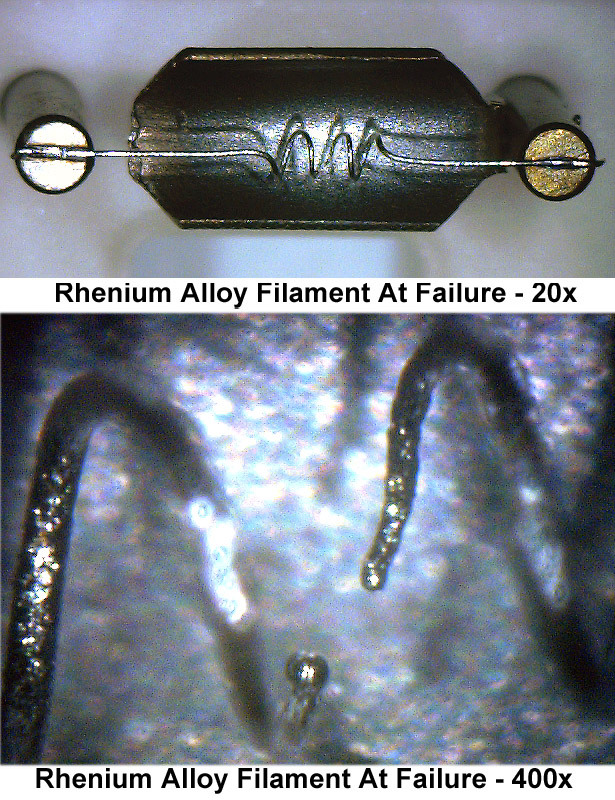

Figure: Filament
