| Flanging Kit for Low Pressure Tubing | PEEK Fitting Assortment | General HPLC Fitting Assortment |

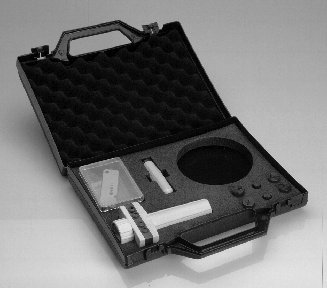

Create or restore flanged tubing connections with this handy tool. It requires no electrical power, and does not weaken tubing by heating it. Use it anywhere in the lab. Dies for most common PTFE tubing sizes included, plus extra-strong steel dies for making flanges on thin-walled PEEK tubing. Complete, easy-to-use instructions included.
Includes:
| 1 flanging vise and die handle | 1 flanging die with 0.80 mm Polypropylene pin |
| 1 flanging die with 1.30 mm Polypropylene pin | 1 P/N E820 Quick-cut tubing cutter |
| 1 flanging die with 0.50 mm Steel pin | 1 flanging die with 0.80 mm Titanium pin |
| 1 flanging die with 1.30 mm Titanium pin |
| Part No. | Description | UOM | est wt. |
Quantity In Stock |
Price | Quantity to order |
|---|---|---|---|---|---|---|
| EK10 | SIS Tubing Flanging Kit | KT | 1 | PART NUMBER OUTDATED. New number is JR201540(#) | --- | --- |
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | ||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||
Metal flow path components can contribute ions that may interfere with the analysis of biological samples by interacting with biomolecules or deactivating column phases. This collection of fittings and accessories provides you with an economical way to replace your most common system components that have the potential to cause metal contamination. It’s also a great way to keep your fittings organized and save 20% or more on the cost of individual pieces
Includes:
| 1 E1 Organizer | 2 E860 Tubing Elbow 180° |
| 6 E351 One Piece Fingertight Fitting | 1 E620 In-Line Filter Kit |
| 4 E320 PEEK Handtight Nut | 1 E820 Quick-cut tubing cutter |
| 4 E310 PEEK Hex Head Nut | 1 E150 PEEK-PTFE Alloy Mobile Phase Filter 5µm |
| 20 E905 PEEK Double Ferrule | 3m PEEK tubing 1/16" OD x 0.25mm (0.010") ID |
| 1 E501 PEEK Union | 3m PEEK tubing 1/16" OD x 0.50 mm (0.020") ID |
| 2 E850 Tubing Elbow 90° |
| Part No. | Description | UOM | est wt. |
Quantity In Stock |
Price | Quantity to order |
|---|---|---|---|---|---|---|
| EK20 | PEEK Fitting Assortment | KT | 1 | 0(#) | --- | --- |
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | ||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||
This is an all-purpose parts and fittings assortment for start-up and maintenance of HPLC systems. A collection of tools and commonly used parts in 316 stainless steel, PEEK and PTFE in a handy organizer.
Includes:
| 1 35L Organizer | 3m SS Tubing 1/16" OD x 0.25 mm (0.010")ID |
| 6 E351 One Piece Fingertight Fitting | 3m SS Tubing 1/16" OD x 0.50 mm (0.020") ID |
| 4 E320 PEEK Handtight Nut | 1 E830 Smartwrench |
| 4 E310 PEEK Hex Head Nut | 1 E810 Tubing Pliers |
| 10 E905 PEEK Double Ferrule | 2 E870 Tubing Clip |
| 1 E501 PEEK Union | 1 E511 SS Union 0.50 mm (0.020") thru-hole |
| 1 E850 Tubing Elbow 90° | 2 E401 SS Nut Long |
| 1 E860 Tubing Elbow 180° | 2 E402 SS Nut X-long |
| 1 E620 In-Line Filter Kit | 5 E906 SS Ferrule |
| 1 E820 Quick-cut tubing cutter | 2 E880 1/4" x 5/16" wrench |
| 1 E155 Stainless Mobile Phase Filter 2µm | 1 E890 File |
| 3m PEEK tubing 1/16" OD x 0.25mm (0.010")ID | |
| 3m PEEK tubing 1/16" OD x 0.50 mm (0.020")ID | |
| 3m PTFE tubing 1/8" OD x 1.58 mm ID (0.062")ID | |
| Part No. | Description | UOM | est wt. |
Quantity In Stock |
Price | Quantity to order |
|---|---|---|---|---|---|---|
| EK30 | HPLC Fitting Assortment | EA | 1 | 0(#) | $310.00 | |
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | ||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||
| SIS Catalog Cross Reference | |
|---|---|
| Page # | Part Numbers |
| E59 - HPLC Maintainance Kits | EK10, EK30 |
