S.I.S.™ Rotary Vane Vacuum Pumps

Designed for S.I.S.™ for the Scientific Community.

User manuals:

Low Cost - Save 35 - 50%
Extremely Quiet and Light Weight
- Precise machining eliminates noise and vibration levels
Air Cooled
Fast Pumping
Direct Drive
Gas Ballast Valve
Voltage Choices
- 110V or 220V
Ideal For
- Mass Spectrometers
- GC/ICP mass
- Vacuum degassing
- Freeze drying
- Cryogenics
- Vacuum distillations
- Surface coating
- Laser construction
- Vacuum ovens
- Electron Microscopes
Reliable - 20 years of history

SV140 5 CFM Two Stage Rotary Vane Pump

Technical Data
Pumping Speed	140L/min (5 CFM)
Ultimate Pressure - Gas Ballast Closed	5 x 10^-3torr (6.7 x 10^-1 Pa)
Ultimate Pressure - Gas Ballast Open	5 x 10^-2torr (6.7 Pa)
Power Input	220 VAC/ 110 VAC 50/60Hz; Customer's Request (Voltage, Frequency and Phase)
Full Load Power	0.4kW (0.5 HP)
Motor Speed	1700 rpm
Inlet and Outlet connections	1/4" and 3/8" T-type
Oil Capacity	600 cc (0.6L)
Weight	16 Kg
Ambient Operation Temp. Range	7-40°C

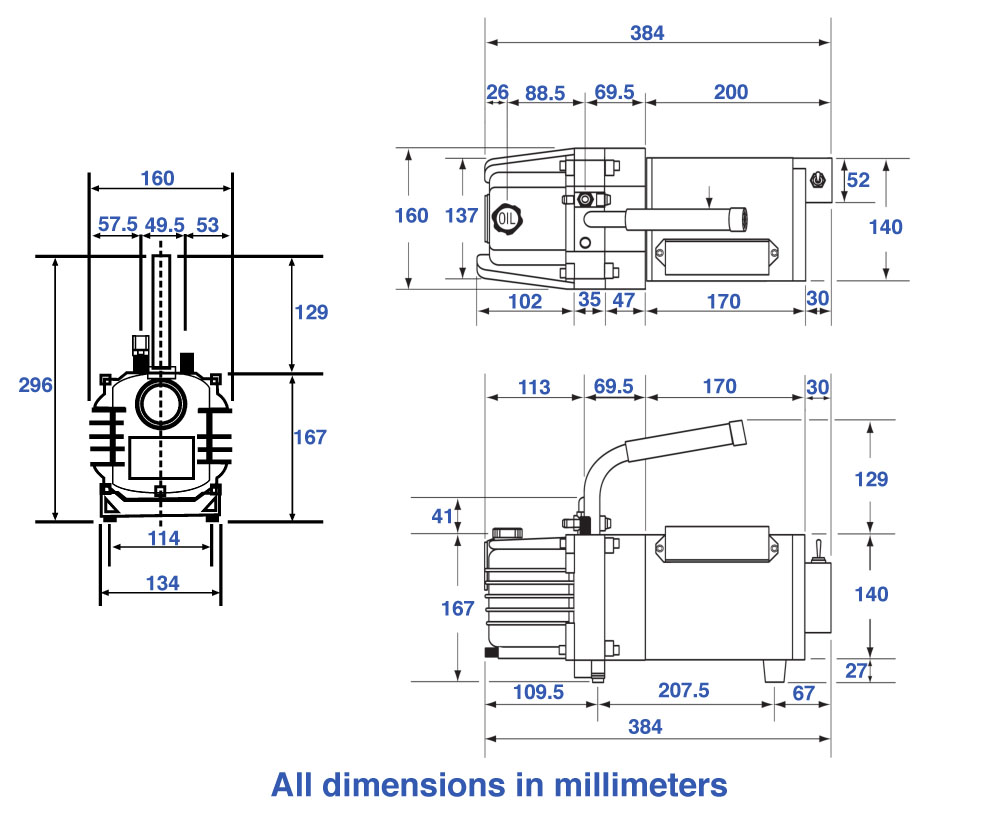

Overall Dimension (mm)	160 (W) x 384 (L) x 296 (H)

Part No.	Description	est wt.	Quantity In Stock	Price
UOM=EA
SV140110	SV140 PUMP 110V 50/60HZ	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$1400.00
SV140220	SV140 PUMP 220V 50/60HZ	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$1400.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

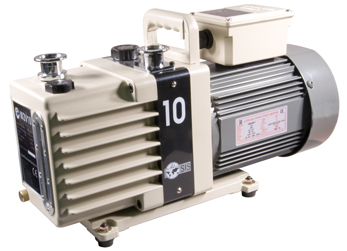

W2V10 - 3.5 CFM Two Stage Rotary Vane Pump

Technical Data
Pumping Speed	100L/min (3.5 CFM)
Ultimate Pressure - Gas Ballast Closed	5 x 10^-4torr (6.7 x 10^-2 Pa)
Ultimate Pressure - Gas Ballast Open	5 x 10^-2torr (6.7 Pa)
Power Input	220 VAC/ 110 VAC 50/60Hz; Customer's Request (Voltage, Frequency and Phase)
Full Load Power	0.4kW (0.5 HP)
Motor Speed	1700 rpm
Inlet and Outlet connections	NW25
Oil Capacity	500 cc (0.5L)
Weight	19 Kg
Ambient Operation Temp. Range	7-40°C
Overall Dimension (mm)	150 (W) x 398 (L) x 251 (H)

Comparable to Edwards RV3 & Alcatel 205 Series

For placing this on Agilent 597X MSD's, purchase the conversion kit # W2V10MSD, which contains a cable cord and adaptor compatible with the instrument.

Part No.	Description	UOM	est wt.	Quantity In Stock	Price
W2V10110	W2V10 PUMP 115V 50/60HZ	EA	0	1	$1495.00
W2V10220	W2V10 PUMP 220V 50/60HZ	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$1495.00
FK201B	SIS All-In-One Exhaust Filter Kit for Edwards Vacuum Pumps Models E15/8/12,E2M2/3/5/8/12,and RV3/5/8/12	EA	0	0^{[*L2]Lead time for this out-of-stock item is approximately 48 hours.}	$209.00
W2V10MSD	AGILENT W2V10 PUMP 110V	KT	0	0^{[*L2]Lead time for this out-of-stock item is approximately 48 hours.}	$1595.00
W2V10MINOR	SIS MINOR REPAIR KIT FOR W2V10 PUMP	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$95.00
W2V10MAJOR	SIS MAJOR REPAIR KIT FOR W2V10 PUMP	KT	0	1	$260.00
[L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item. [L2] Lead time for this out-of-stock item is approximately 48 hours.
Ordering information. International (non-US) prices available through your local dealer.

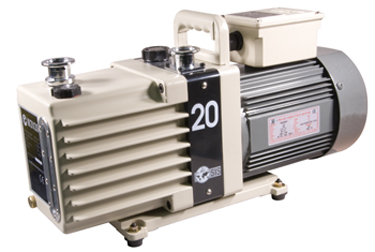

W2V20 - 7 CFM Two Stage Rotary Vane Pump

Technical Data
Pumping Speed	200L/min (7 CFM)
Ultimate Pressure - Gas Ballast Closed	5 x 10^-4torr (6.7 x 10^-2 Pa)
Ultimate Pressure - Gas Ballast Open	5 x 10^-2torr (6.7 Pa)
Power Input	220 VAC/ 110 VAC 50/60Hz; Customer's Request (Voltage, Frequency and Phase)
Full Load Power	0.4kW (0.5 HP)
Motor Speed	1700 rpm
Inlet and Outlet connections	NW25
Oil Capacity	600 cc (0.6L)
Weight	21 Kg
Ambient Operation Temp. Range	7-40°C

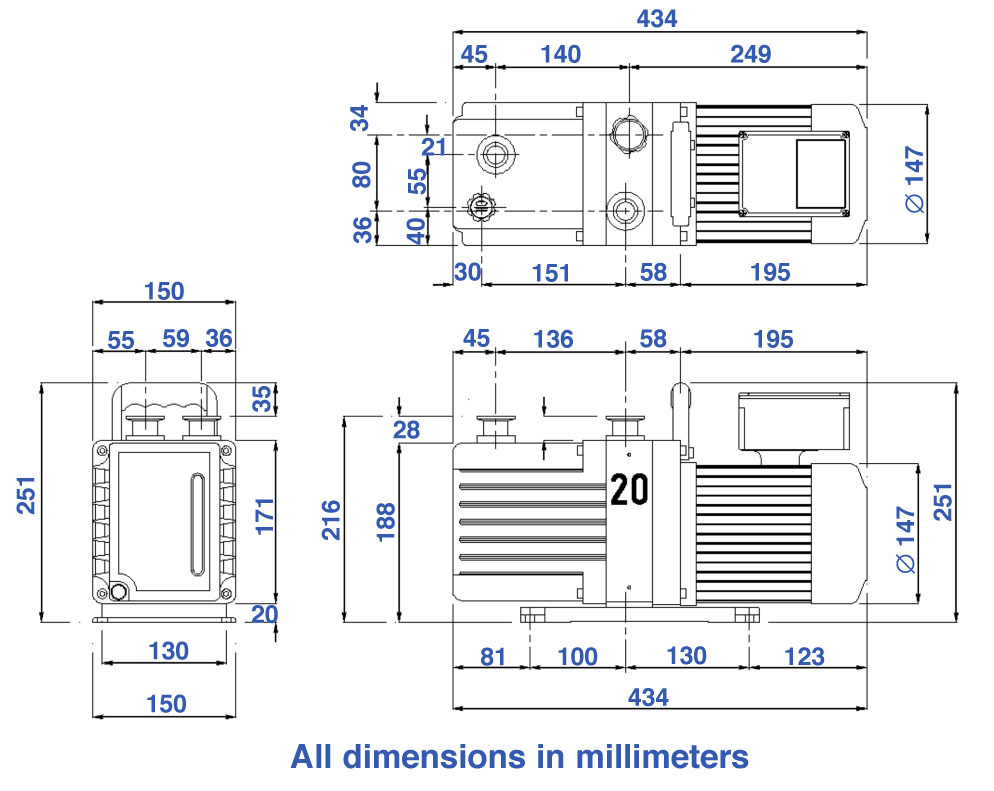

Overall Dimension (mm)	150 (W) x 434 (L) x 251 (H)

Comparable to Edwards RV8 & Alcatel 210 Series

Part No.	Description	UOM	est wt.	Quantity In Stock	Price
W2V20110	W2V20 Pump 115V 50/60HZ. This pump should not be plugged directly into the agilent MSD. Use alternate power source/wall outlet.	EA	0	6	$1650.00
W2V20220	W2V20 PUMP 220V 50/60HZ THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$1650.00
FK201B	SIS All-In-One Exhaust Filter Kit for Edwards Vacuum Pumps Models E15/8/12,E2M2/3/5/8/12,and RV3/5/8/12	EA	0	0^{[*L2]Lead time for this out-of-stock item is approximately 48 hours.}	$209.00
W2V20MINOR	SIS MINOR REPAIR KIT FOR W2V20 PUMP	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$95.00
W2V20MAJOR	SIS MAJOR REPAIR KIT FOR W2V20 PUMP	KT	0	1	$260.00
[L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item. [L2] Lead time for this out-of-stock item is approximately 48 hours.
Ordering information. International (non-US) prices available through your local dealer.

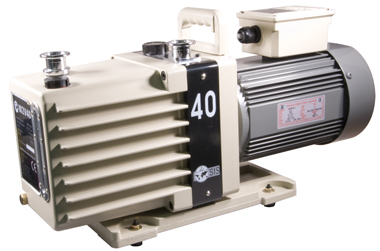

W2V40 - 14 CFM Two Stage Rotary Vane Pump

Technical Data
Pumping Speed	400L/min (14 CFM)
Ultimate Pressure - Gas Ballast Closed	5 x 10^-4torr (6.7 x 10^-2 Pa)
Ultimate Pressure - Gas Ballast Open	5 x 10^-2torr (6.7 Pa)
Power Input	220 VAC/ 110 VAC 50/60Hz; Customer's Request (Voltage, Frequency and Phase)
Full Load Power	0.75kW (1 HP)
Motor Speed	1700 rpm
Inlet and Outlet connections	NW25
Oil Capacity	1500 cc (1.5L)
Weight	29 Kg
Ambient Operation Temp. Range	7-40°C

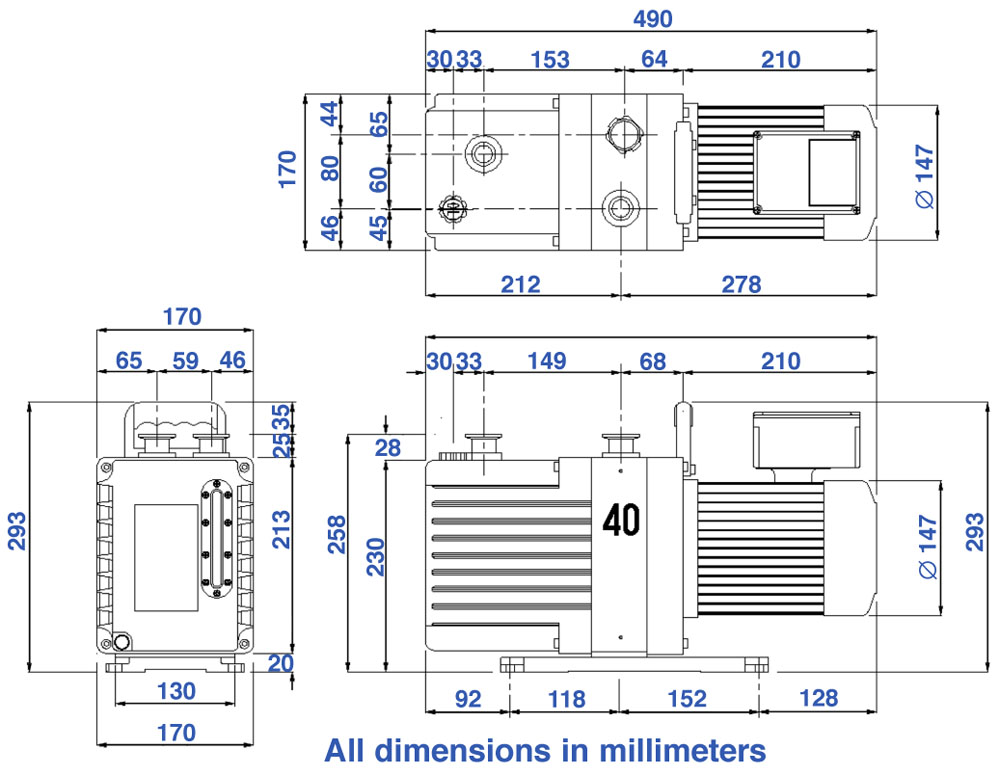

Overall Dimension (mm)	170 (W) x 490 (L) x 293 (H)

Comparable to Edwards RV12 & Alcatel 215 Series

Part No.	Description	UOM	est wt.	Quantity In Stock	Price
W2V40110	W2V40 PUMP 115V 50/60HZ THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$1825.00
W2V40220	W2V40 PUMP 220V 50/60HZ THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	2	$1825.00
W2V403PHASE	W2V40 3-PH 200-220 VOLT THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$1825.00
FK201B	SIS All-In-One Exhaust Filter Kit for Edwards Vacuum Pumps Models E15/8/12,E2M2/3/5/8/12,and RV3/5/8/12	EA	0	0^{[*L2]Lead time for this out-of-stock item is approximately 48 hours.}	$209.00
W2V40MINOR	SIS MINOR REPAIR KIT FOR W2V40 PUMP	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$110.00
W2V40MAJOR	SIS MAJOR REPAIR KIT FOR W2V40 PUMP	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$275.00
[L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item. [L2] Lead time for this out-of-stock item is approximately 48 hours.
Ordering information. International (non-US) prices available through your local dealer.

W2V60 - 21 CFM Two Stage Rotary Vane Pump

Technical Data
Pumping Speed	600L/min (21 CFM)
Ultimate Pressure - Gas Ballast Closed	5 x 10^-4torr (6.7 x 10^-2 Pa)
Ultimate Pressure - Gas Ballast Open	5 x 10^-2torr (6.7 Pa)
Power Input	220 VAC/ 110 VAC 50/60Hz; Customer's Request (Voltage, Frequency and Phase)
Full Load Power	1.5kW (2.0 HP)
Motor Speed	1700 rpm
Inlet and Outlet connections	NW40
Oil Capacity	2300 cc (2.3L)
Weight	51.5 Kg
Ambient Operation Temp. Range	7-40°C

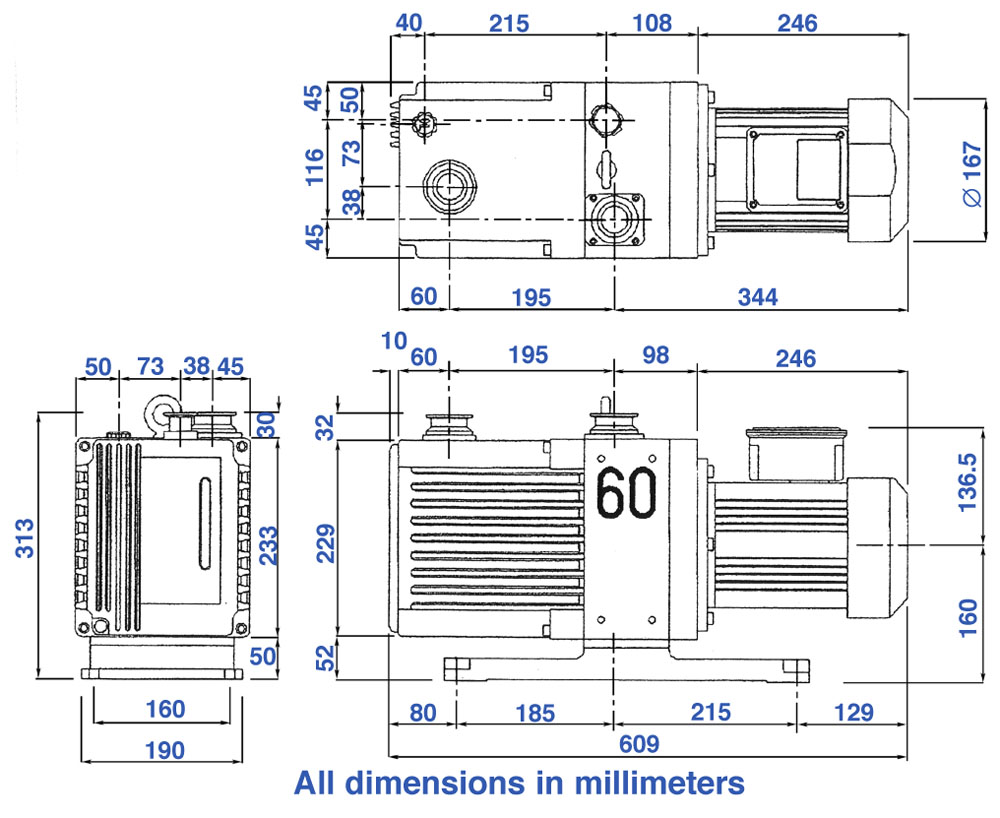

Overall Dimension (mm)	206 (W) x 609 (L) x 251 (H)

Comparable to Edwards E2M28 & Alcatel 2033 Series

Part No.	Description	UOM	est wt.	Quantity In Stock	Price
W2V60110	W2V60 115V 50/60HZ THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$2875.00
W2V60220	W2V60 PUMP 220V 50/60HZ THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTOT THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$2875.00
W2V603PHASE	W2V60 3 PHASE 200/220 V THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$2875.00
W2V60MINOR	SIS MINOR REPAIR KIT FOR W2V60 PUMP	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$130.00
W2V60MAJOR	SIS MAJOR REPAIR KIT FOR W2V60 PUMP	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$240.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

W2V80 - 28 CFM Two Stage Rotary Vane Pump

Technical Data
Pumping Speed	800L/min (28 CFM)
Ultimate Pressure - Gas Ballast Closed	5 x 10^-4torr (6.7 x 10^-2 Pa)
Ultimate Pressure - Gas Ballast Open	5 x 10^-2torr (6.7 Pa)
Power Input	220 VAC/ 110 VAC 50/60Hz; Customer's Request (Voltage, Frequency and Phase)
Full Load Power	1.5kW (2 HP)
Motor Speed	1700 rpm
Inlet and Outlet connections	NW40
Oil Capacity	2700 cc (2.7L)
Weight	67 Kg
Ambient Operation Temp. Range	7-40°C
Overall Dimension (mm)	226 (W) x 624 (L) x 346 (H)

Comparable to Edwards E2M40 & Alcatel 2063 Series Pumps

Part No.	Description	UOM	est wt.	Quantity In Stock	Price
W2V80110	W2V80 115V/230V 50/60HZ NOT TO BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$3500.00
W2V80220	W2V80 PUMP 220V 50/60HZ NOT TO BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$3500.00
W2V803PHASE	W2V80 200/220V 3 PHASE NOT TO BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$3500.00
W2V80MINOR	SIS MINOR REPAIR KIT	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$130.00
W2V80MAJOR	SIS MAJOR REPAIR KIT FOR W2V80 PUMP	KT	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$240.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

SIS Catalog Cross Reference
Page #	Part Numbers
B7 - Agilent 5970 MSD�™ Accessories by S.I.S.™	FK201B
F43 - S.I.S.™ All-In-One Two Stage Vacuum Pump Filter Kits	FK201B
