VG Source and Thermospray Heaters

Also in catalog
A26

VG Heaters

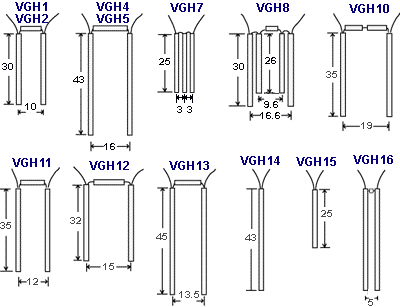

Scientific Instrument Services supplies exact replacement heaters for the VG mass spectrometer sources, LC interfaces, and thermospray instruments. All heaters are constructed from 6 hole (1.97 mm O.D.) ceramic tubing.

Standard heater wire for all VG instruments is 0.010 inch tantalum, however other wire types are available on special request. The VGH-1 heaters are used as source heaters in the VG 70-70, 12-12, 16, 305 and VG ZAB E. The VGH-4 heaters are used as source heaters in the VG ZAB 2F. The VGH10 heater is for the VG LC Trio 2 source. The VGH-11 heater is for the VG thermospray and the VGH12 heater is for Trio 2 source. The three legged VGH7 heater is designed for the VG LC and the four Iegged VGH8 is manufactured for the VG Trio 2 source. In addition to the heaters described, S.I.S. can manufacture other heaters for your particular requirements. Call or send us your specifications for a quotation. S.I.S. can repair all heaters for the VG mass spectrometer.

All VG Heaters can be repaired. See the VG Filament Repair Section.

Part No.	Description	For	est wt.	Quantity In Stock	Price
UOM=EA
VGH1	VG source heater, tantalum	70-70; 12-12; 16; 305; ZAB SE	0.25	0^{[*L2]Lead time for this out-of-stock item is approximately 48 hours.}	$77.00
VGH2	VG source heater, platinum	70-70; 12-12; 16; 305; ZAB SE	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$206.00
VGH4	VG source heater, tantalum	ZAB 2F	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$77.00
VGH5	VG source heater, platinum	ZAB 2 F	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$280.00
VGH7	VG LC heater, tantalum, 3 legs	VG-LC	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$128.00
VGH8	VG source heater, tantalum, 4 legs	Trio 2	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$220.00
VGH10	VG source heater, tantalum	LC Trio 2 Source	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$77.00
VGH11	VG thermospray heater, Ta	Thermospray	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$77.00
VGH12	VG source heater, tantalum	Trio 2 source	0.25	0^{[*L3]Lead time for this out-of-stock item is approximately 3 days.}	$77.00
VGH13	VG source heater,tantalum	EI/CI	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$77.00
VGH14	VG single leg heater, Ta	M702867AD1	0.25	3	$72.00
VGH15	VG single leg heater, Ta	Autospec	0.25	0^{[*L5]Lead time for this out-of-stock item is approximately 5 days.}	$72.00
VGH16	VG heater, 1.25mm dia. Ceramics, Tant.	ZAB FD Heater	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$77.00
[L2] Lead time for this out-of-stock item is approximately 48 hours. [L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item. [L3] Lead time for this out-of-stock item is approximately 3 days. [L5] Lead time for this out-of-stock item is approximately 5 days.
Ordering information. International (non-US) prices available through your local dealer.

*To be used on the respective instruments. Other materials and sizes are available on special request.

SIS Catalog Cross Reference
Page #	Part Numbers
A26 - Mass Spec Source Heaters	VGH1, VGH10, VGH11, VGH12, VGH13, VGH14, VGH15, VGH16, VGH2, VGH4, VGH5, VGH7, VGH8
B41 - VG Mass Spec Filaments & Heaters	VGH1, VGH10, VGH11, VGH12, VGH13, VGH14, VGH15, VGH16, VGH2, VGH4, VGH5, VGH7, VGH8
