Alcatel Vacuum Pump Model 2015

Model 215SDMLAM

Alcatel Standard Two-Stage Pumps

  • Compact For Easy Installation in pumping systems.
  • Low Noise Level: 55 dbA at 1 m.
  • Air-Cooled for increased mobility.
  • Easy to Move with integrated handle.
  • Shock Mounts for vibration free operation.
  • Light-Weight for universal applications.

Alcatel Standard Series Pumps

Four Two-stage models are available with pumping speeds from 3.8 to 14.6 cfm. These pumps are recommended for general vacuum applications in industry, research laboratories, and wherever else portability and lightweight, vibration-free operation is essential. Their totally enclosed design provides clean operation and ensures operator safety. These Alcatel pumps are widely used on Mass Spectrometers.

Outstanding Pump Features

The distinctive features and performance characteristics of Alcatel pumps reflect the stringent parameters which dictate their design and construction. For example, all standard production pumps incorporate hardened steel rotors, positively lubricated and frictionless hydro-dynamic bearings, and stainless steel vane springs and filters. The vanes are made of tough, high density laminated asbestos, specially compounded to resist corrosion and wear. They are spring loaded, and do not rely on centrifugal force for sealing. A patented anti-suckback valve with its integral rubber seal serves as an oil metering device, and prevents oil from being sucked back into the vacuum system should the motor be stopped inadvertently. The effectiveness of the anti-suckback system eliminates the need for expensive electromagnetic safety valves in some applications. All Alcatel Pumps carry a one year limited warranty.

Other significant features of Alcatel pumps :

Warranty: Parts and labor for one year.

Recommended Replacements

The following lists the various Edwards vacuum pump model numbers and the recommended replacement Alcatel model numbers. there may be some slight differences in size and pumping speeds between the Edwards and the Alcatel models. See the following page for a complete list of specifications on the Alcatel pumps.


Cross Reference

Edwards Model #  Recommended Alcatel Model #
E2M1, E2M2,
E1M5, E2M5  205SDMLAM
E1M8, E2M8 210SDMLAM
E2M12  215SDMLAM
E1M18, E2M18 221SDMLAM



Alcatel Vacuum Pump Specifications - 60Hz

Pump Model                        205SDMLAM      210SDMLAM      215SDMLAM      221SDMLAM
Free air cfm                        3.8          6.8            10.6           14.6
displacement l/mn                   108          193            300            414
Stages                                2            2               2              2
Ultimate vacuum mbar              <1.10-4       <1.10-4         <1.10-4        <1.10-4
Water vapor capacity grams/hr        110         100            100            75
Oil capacity liter                  .825         .95            .95           .98
Motor rating hp                      1/2         1/2             3/4          3/4
Rotational speed rpm                1800        1800            1800         1800
Electrical rating 1 phase            115-230 V/60 Hz***           115-230 V/60 Hz***
                  3 phase            230-460 V/60Hz***            230-460 V/60 Hz***
Inlet/ Exhaust flanges (Pneurop) NW   25          25              25           25
Weight lbs                            51          55              67           67
        kg                            23        25.2            30.3         30.3
Repair Kits
Major repair kit                   65885       65883           65882        65881
Minor repair kit                   65874       65874           65874        65874

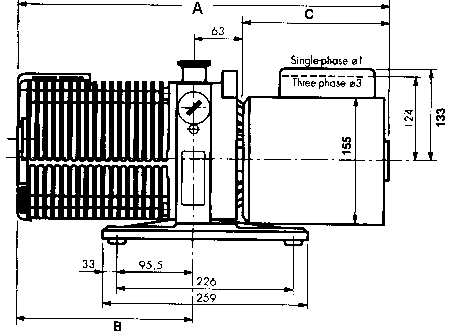

Dimensions (mm) 60Hz
                                  205SDMLAM      210SDMLAM      215SDMLAM      221SDMLAM
A Overall Length                     497           517           558          579
B                                    184           204           225          246
C                                    250           250           270          270
Dimensions (inch) 60 Hz
A Overall Length                    19.6           20.4          22.0         22.8
B                                   7.24           8.03          8.86         9.69
C                                   9.84           9.84         10.63        10.63

Accessory Supplies
Part No. Description UOM est
wt.
Quantity
In Stock
Price Quantity
to order
205SDMLAM ALCATEL PUMP-LOW VOLTAGE EA 0 0(#)$2080.00
210SDMLAM ALCATEL PUMP LOW VOLTAGE EA 0 0(#)$2340.00
215SDMLAM ALCATEL PUMP LOW VOLTAGE EA 0 0(#)$2900.00
221SDMLAM ALCATEL PUMP-LOW VOLTAGE EA 0 0(#)$3480.00
FNADP  --- 0(#)CALL
FNAPI  --- 0(#)CALL
(#) Standard lead-time for out-of-stock items is approximately two weeks.
shopping cart Ordering information. International (non-US) prices available through your local dealer.
Specify Wiring for 110 or 220 volts.
* FNADP is to fit 0.8" I.D. hose used on some Finnigan mass spectrometers.
** FNAPI is to fit 1.5" I.D. hose used on some Finnigan mass spectrometers.
SIS Catalog Cross Reference
Page #Part Numbers
F33 - Alcatel Vacuum Pumps 205SDMLAM, 210SDMLAM, 215SDMLAM, 221SDMLAM, FNADP, FNAPI
