SIS supplies over 20,000 parts and services for mass spectrometry, chromatography, vacuum, and other scientific equipment.

News: New 2014 catalog, NIST 14, new products, Nanoliter MALDI/TOF dispensing, heater transfer tube for Thermo, NE300 syringe pump, ...

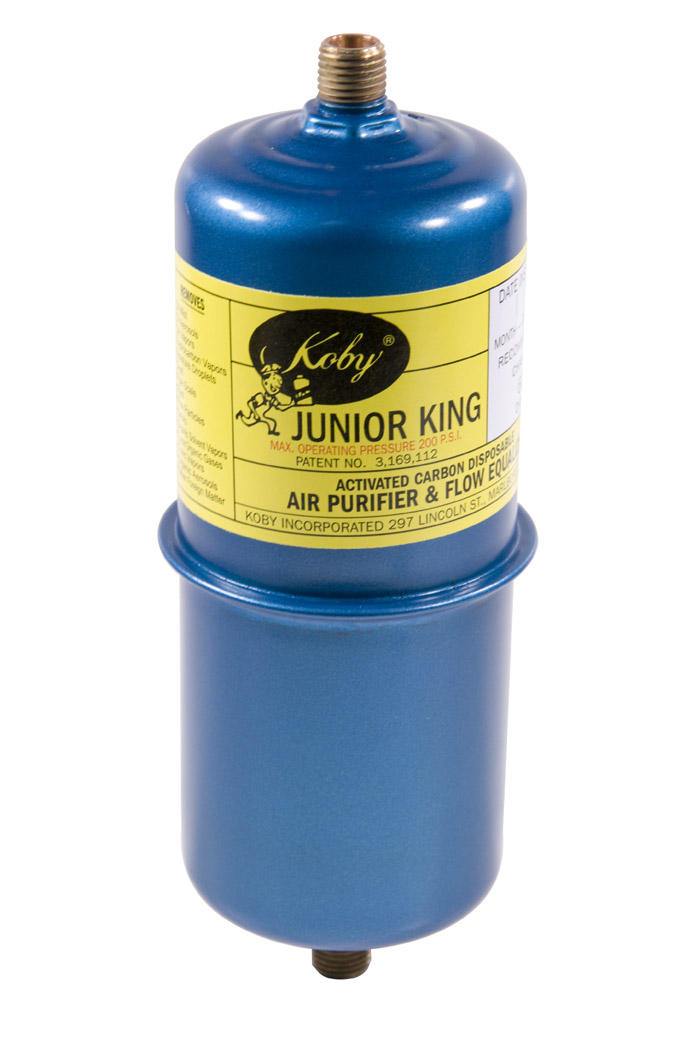

High Pressure Disposable Air Filter/Purifier

Features








Applications

Units are used to remove heavy concentrates of vapors, aerosols, and particulates from compressed air and vacuum air. Typically installed to protect high pressure controls and valves, precision instruments, air bearings, non-lubricated air tools, important production machinery, and other air operatied equipment. Also recommended for installation before spray guns, blow guns, sand blast helmets, vacuum pumps, high pressure air hoses, or to general system piping at point of air use.




Specifications
Air Filter Model Maximum Oil Adsorption Capacity Air Flow 100 psig @ 2 psid (SCFM)
Junior King 3.5 oz. 13.5
Senior 2.5 oz. 8.3
Senior King 3.5 oz. 11.5

UOM=EA
Part No. Description Quantity
In Stock
Price Quantity
to order
KA2 Koby Junior King Vacuum Pump Filter, Replacement 30$62.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
KF1 1/4 in pipe to 1/2 in hose fitting 15$50.65
KF2 1/4 in pipe to 3/4 in hose fitting 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $30.45
KF3 1/4 in pipe to 1 in hose fitting 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $31.50
QF25100SP25 Flange Adaptor to 1/4 in NPT, 304 Stainless Steel 2$46.00
Additional info on above part numbers also exists on these pages:
PagePart Numbers
T (Catalog F51) KA2, KF1, KF2, KF3, QF25100SP25
Vacuum Pump Filter Kits (Catalog F52) KA2
NW Vacuum Fittings (Catalog F66) QF25100SP25
Koby Vacuum Pump Exhaust Filters KF1, KF2, KF3, QF25100SP25
Koby Vacuum Pump In-Line Air Purifiers KF1, KF2, KF3, QF25100SP25
Koby Low Pressure Disposable Air filter/Purifier KF1, KF2, KF3, QF25100SP25
Koby Mini Disposable Air filter/Purifier KF1, KF2, KF3, QF25100SP25
Koby Noise Muffler Air Purifiers QF25100SP25
Vacuum Pump Exhaust Filter Kits for Edwards Pumps - FK241 KA2
Flange Adaptor QF25100SP25
