Oil Mist Eliminators

Eliminate annoying problems caused by oil mists from vacuum pumps

Eliminate oil fumes
Reduce chance of computer head crashes
Prevent carcinogenic and caustic fume emissions
Prevent loss of pump oil
Returns used oil to pump
Clamps or screws onto the Alcatel pumps
Top hose nipple accepts exhaust hose

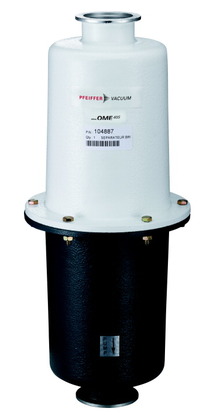

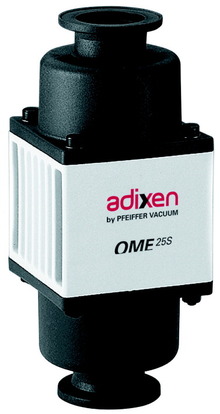

Oil Mist Eliminator Kit #68316        Oil Mist Eliminator mounted on
                                         Alcatel Vacuum Pump

When vacuum pumps are first turned on they usually emit a considerable quantity of oil vapors into the air. This oil mist not only contains oil but it also contains any contaminants that were in the oil within the pump. The oil mist eliminators trap this oil mist before it is expelled into the air, traps it within the filter and then returns the oil back to the pump.

The oil mist eliminator also becomes very useful if the vacuum pump is out-gassed by means of the gas ballast valve. Again the oil mist will be trapped and the oil returned to the pump. By preventing the oil mists from contaminating the laboratory air, the risk of head crashes on computer disc systems can be reduced. In addition, they provide a healthier environment within the laboratory.

The oil mist eliminator contains a paper filter which traps the oil mist allowing it to condense and return to the oil pump. It also incorporates a safety valve to prevent pressure buildup in the pump when pumping vapors capable of clogging the cartridge. In some cases of very heavy use, it may be desirable to exhaust the pumped gases to a fume duct or charcoal filter. For such applications, the oil mist eliminator is fitted with a hose nipple to which an exhaust hose or charcoal filter could be attached.

Part no. 66827 incorporates a NW 25 flange (O.D. - 1.5") which enables this unit to be clamped onto the exhaust port on the newer model Alcatel Pump Models UM2005, UM2010, UM2015. This model comes with an offset elbow, the use of which is optional.

For additional cleanup of pump exhausts, see other pages for descriptions of charcoal trap filters which are capable of removing additional exhaust emissions.

An adaptor kit for installing the oil mist eliminator on an Edwards pump is available. It consists of a threaded fitting and centering ring.

Part No.	Description	UOM	ship wt.	Quantity In Stock	Price	Quantity to order
Oil Mist Eliminator
66827	For Alcatel UM2005, UM2010, and UM2015	EA	3	PART NUMBER OUTDATED. New number is 104200^(#)	---	---
68838	Paper Replacement Filter, Alcatel Oil Mist (For Pascal Series Pump only)	PK	1	2	$63.00
ED1	Edwards Adaptor Kit	EA	1	0^(#)	$47.00
ED2	Edwards Adapter Kit for E2M1	EA	1	2	$125.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

SIS Catalog Cross Reference
Page #	Part Numbers
F49	68838
	66827, ED1, ED2
