Vacuum Pump In-Line Air Purifiers

Features

Prevents pollution of work environments
Minimal H₂O Pressure Drop
Completely disposable
Maintenance Free
Made with adsorbent activated carbon
Particle Filtration to 0.5 microns

Applications

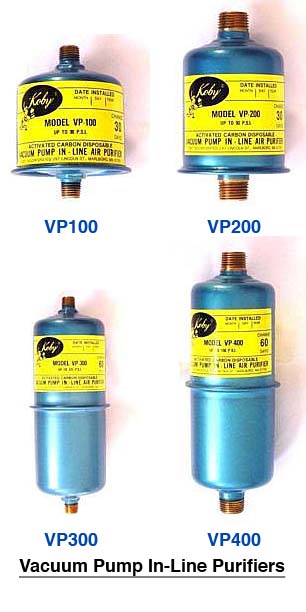

Disposable Vacuum Pump In-Line Air Purifiers, Models VP100, VP200, VP300, and VP400 are specifically designed to remove harmful organic vapors, aerosols, fine particles, and other foreign matter from vacuum air and compressed air. Units prevent pollution of laboratory and industrial work environments. Models 250JCB, 500SKB, MF2KCB, and MF4SKB Vacuum Pump In-Line Air Purifiers are recommended for installation after mercury filled manometers, instruments and other calibration equipment. Unlike VP Series Purifiers, units are supplied with impregnated carbon for efficient adsorption of hazardous mercury vapor not readily removed by standard activated carbon

Click here for a general list of contaminants removed by this air filter.

Mercury Removal

Models 250JCB, 500SKB, MF2KCB, and MF4SKB are manufactured with a high grade impregnated carbon specifically use for mercury adsorption. Each gram of carbon can adsorb approximately 5% of its own weight in mercury vapor. For best results, install purifier on discharge side of vacuum pump. Monitor mercury levels routinely on purifier outlet to insure effectiveness, and replac when mercury levels exceed permissible exposure levels. When removing heavy concentrations of mercury over 1500 µg/m³, it is advisable to install purifiers in series as shown below for added protection.

Installation and Replacement

Units can be easily installed directly to vacuum pump, or system piping using standard NPT pipe fittings. Replace according to specified manufacturer's replacement, or when noticeable odor is detected on purifier discharge. When used only to remove fine particles, replace every six months from date of installation.

Specifications
Air Filter Model	Maximum Oil Adsorption Capacity	Maximum Air Flow 100 psig at 1psid (SCFM)
VP100	1.0 oz.	19.0
VP200	1.5 oz.	10.7
VP300	3.5 oz.	15.8
VP400	3.5 oz.	14.6
250JCB	N/A	18.0
500SKCB	N/A	9.5
MF2JKCB	N/A	14.8
MF4SKCB	N/A	13.7

Part No.	Description	est wt.	Quantity In Stock	Price
UOM=EA
VP100	Koby In-Line Air Purifier	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$52.00
VP200	Koby In-Line Air Purifier	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$49.00
VP300	Koby In-Line Air Purifier,1/4"	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$65.00
VP400	Koby In-Line Air Purifier, 1/2"	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$65.00
250JCB	Koby Mercury Adsorption Filter	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$55.00
500SKCB	Koby Mercury Adsorption Filter	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$60.00
MF2JKCB	Koby Mercury Adsorption Filter	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$65.00
MF4SKCB	Koby Mercury Adsorption	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$66.00
KF1	1/4 in pipe to 1/2 in hose fitting	0.5	15	$50.65
KF2	1/4 in pipe to 3/4 in hose fitting	0.5	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$29.00
KF3	1/4 in pipe to 1 in hose fitting	0.5	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$30.00
QF25100SP25	Flange Adaptor to 1/4 in NPT, 304 Stainless Steel	0.25	14	$46.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

SIS Catalog Cross Reference
Page #	Part Numbers
F48 - Koby�™ Vacuum Pump Charcoal Trapping Exhaust Filters	KF1, KF2, KF3, QF25100SP25
F62 - NW Vacuum Fittings	QF25100SP25
