Vacuum Pump Exhaust Filters

The drawings below show a typical exhaust filter installation using an alcatel Oil Mist Eliminator and Koby Air Filter for maximum filtration. The part numbers listed detail what must be ordered when installing on an alcatel or Edwards Vacuum pump. If you have a different vacuum pump or have any installation questions, give our technical support staff a call.

	<--- KA1--->
	<--- QF25100SP25--->
QF25100C	QF25100ARV	QF25100C

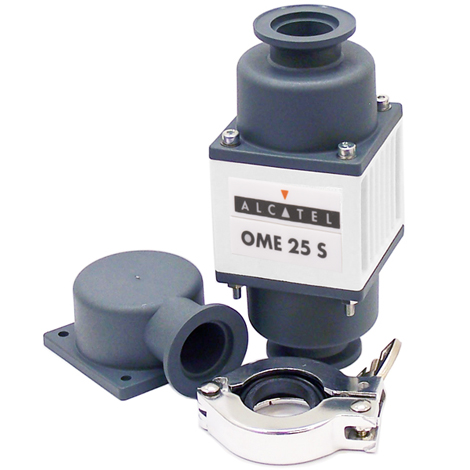

	<---Oil Mist Eliminator Kit (104200)--->
QF25100ARV		ED1 (for Edwards E2M1 use ED2)
All Alcatel Pumps and Edwards RV-3, RV-5, RV-8, RV-12		Edwards E2M2, E2M5, E2M8, E2m12
