Quick Change Final Filter Purifiers

Home
Koby Quick Change Final Filter Purifiers
Hover over image to zoom
Price: 65
Product ID : QC100JK
QC100JK Options=Quick Change Purifier QC100JR Options=Quick Change Junior Purifier

Features

  • Installed and replaces within seconds
  • No pipe tape or sealants required
  • Completely disposable
  • Maintenance free
  • Made with adsorbent activated carbon
  • Particle filtration to 0.5 microns

Applications

Highly efficient units scrub the air free of typical compressed air contaminants such as oil vapor, oil mist, moisture droplets, fine particles, odors, and other foreign matter.

Specs

Installation and Replacement

Models QC100JR and QC100JK are easily installed directly in-line to air operated equipment using standard industrial interchangeable couplings. Simply snap filter disconnect plug into any manual or automatic socket and attach flexible air hose to filter outlet fitting. Turn on air supply. to replace, shut off air supply, relieve pressure in system, disconnect filter.

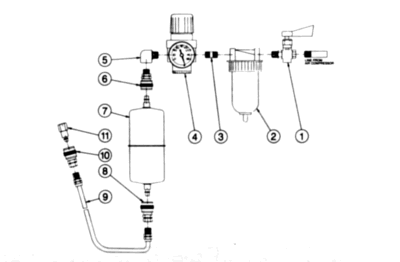

Components List
  1. Shut off valve
  2. Water separator
  3. Connector
  4. Regulator
  5. Elbow
  6. Quick disconnect socket
  7. FINAL FILTER
  8. Quick disconnect socket
  9. Air hose
  10. Quick disconnect socket
  11. Plug





Specifications
Air Filter Model Maximum Oil Adsorption Capacity Air Flow 100 psig @ 2 psid (SCFM)
QC100JR 1.5 oz. 15.5
QC100JK 3.5 oz. 13.5
