Description

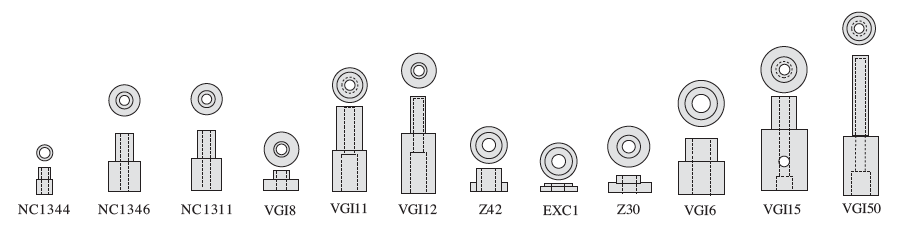

The following stepped alumina insulators and washers are currently available. All listed insulators are constructed from a high purity aluminum oxide ceramic. These insulators are all straight tubes with a step as shown in the drawings. All dimensions are in inches and ± 0.002 inches.The ceramics listed all have steps on either the OD or ID or both.
| Part No. | O.D.(in.) | I.D.(in.) | Thickness(in.) | Quantity In Stock |
Price EA |
Order | |
|---|---|---|---|---|---|---|---|
| NC1344 | Ceramic Isolating Barrell | ||||||
| .116 | .071 | .178 | DISCONTINUED | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| NC1346 | Ceramic Isolating Guide | ||||||
| .213 | .066 | .413 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| NC1311 | Ceramic Adaptor 41006 | ||||||
| .213 | .071 | .413 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI8 | Stepped ceramic | ||||||
| .236 | .072 | .139 | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $30.00‡10 or more: 5% off; 50 or more: 10% off. | |||
| VGI11 | Stepped ceramic | ||||||
| .236 | .072 | .570 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI12 | Stepped ceramic | ||||||
| .236 | .072 | .600 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| Z42 | Ceramic Bushing, ITD | ||||||
| .250 | .090 | .160 | 1 | $21.00‡10 or more: 5% off; 50 or more: 10% off. | |||
| EXC1 | Ceramic Insulator | ||||||
| .250 | .093 | .050 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| Z30 | Repeller Insulator | ||||||
| .278 | .114 | .057 | 20 | $41.00‡10 or more: 5% off; 50 or more: 10% off. | |||
| VGI6 | Stepped insulator | ||||||
| .314 | .124 | .343 | DISCONTINUED | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI15 | FAB Ceramic | ||||||
| .314I.D.(in.)= .072 | --- | .645 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI50 | Stepped Insulator | ||||||
| .276 | .070 | .983 | DISCONTINUED | ---‡10 or more: 5% off; 50 or more: 10% off. | --- | ||
| ‡ Quantity discount 10 or more: 5% off; 50 or more: 10% off. | |||||||
|
* Call for availability. † Standard lead-time for non-stock items is approximately two weeks depending on the item. | |||||||
