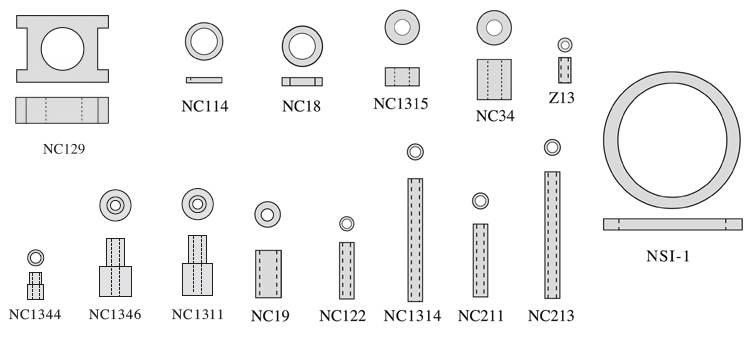

We are constantly adding insulators for Nermag and other manufacturer's instrument systems. The following alumina insulators are currently available for the Nermag Mass Spectrometers. If other sizes and/or types are required, please write us, give us a call or send an old or damaged unit and we will see if we can supply it. All listed insulators are constructed from a high quality aluminum oxide ceramic unless otherwise noted. Additional ceramic and sapphire insulators are listed in the ceramics section of these pages.
All dimensions in inches, tolerances +/- 0.002 inches.
| UOM=EA | ||||||||||
| Part No. | Nermag # | Finnigan # | OD (in) | ID (in) | Thickness (in) | est wt. |
Quantity In Stock |
Price | Quantity to order |
|
|---|---|---|---|---|---|---|---|---|---|---|
| NC18 | Ceramic Spacer 4833-2 | |||||||||
| 1.8 | --- | --- | --- | --- | 0.25 | 0(#) | $15.00(*A) | |||
| NC19 | Ceramic Barrell 4834 | |||||||||
| 1.9 | --- | --- | --- | --- | 0.25 | 0(#) | $14.00(*A) | |||
| NC110 | Ceramic Spacer 4833-1 | |||||||||
| 1.10 | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC114 | Ceramic Spacer 4833-3 | |||||||||
| 1.14 | --- | --- | --- | --- | 0.25 | 16 | $14.00(*A) | |||
| NC121 | Ceramic Washer 3114 | |||||||||
| 1.21 | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC122 | Ceramic Lens Barrell 3113 | |||||||||
| 1.22 | --- | --- | --- | --- | 0.25 | 0(#) | $28.00(*A) | |||
| NC23 | Ceramic Spacer 8586 | |||||||||
| 2.3 | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC24 | Ceramic Spacer 8570 | |||||||||
| 2.4 | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC27 | Ceramic Spacer 8585 | |||||||||
| 2.7 | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC211 | Ceramic Spacer 8614 | |||||||||
| 2.11 | --- | --- | --- | --- | 0.25 | 0(#) | $29.00(*A) | |||
| NC213 | Ceramic Spacer 8613 | |||||||||
| 2.13 | --- | --- | --- | --- | 0.25 | 0(#) | $26.00(*A) | |||
| NC34 | Ceramic Barrell 16910 | |||||||||
| 3.4 | --- | --- | --- | --- | 0.25 | 0(#) | $23.00(*A) | |||
| Z35 | Ceramic Spacer 3110 | |||||||||
| 1.20 | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC1315 | Ceramic 15427 | |||||||||
| 13.15 | --- | --- | --- | --- | 0.25 | 6 | $23.50(*A) | |||
| NC1314 | Ceramic Barrell 40943 | |||||||||
| 13.14 | --- | --- | --- | --- | 0.25 | 0(#) | $32.00(*A) | |||
| NC1344 | Ceramic Isolating Barrell | |||||||||
| 13.44 | --- | --- | --- | --- | 0.25 | 0(#) | $57.00(*A) | |||
| NC1346 | Ceramic Isolating Guide | |||||||||
| 13.46 | --- | --- | --- | --- | 0.25 | 0(#) | $61.00(*A) | |||
| NC1343 | Ceramic Repeller Isolation 41410 | |||||||||
| 13.43 | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC1311 | Ceramic Adapter 41006 | |||||||||
| 13.11 | --- | --- | --- | --- | 0.25 | 0(#) | $22.00(*A) | |||
| NC139B | Ceramic Trap Barrell 20014 | |||||||||
| 1.39B | --- | --- | --- | --- | 0.25 | 0(#) | --- | --- | ||
| NC129 | Repeller Support | |||||||||
| 1.29 | --- | --- | --- | --- | 0.25 | 0(#) | $54.16(*A) | |||
| Z13 | Ceramic Insulator, Isolating Barrell | |||||||||
| 1.46 | 01554-20040 | 0.087 | 0.063 | 0.160 | 0.25 | 14 | $9.00(*A) | |||
|
(*_) Marked parts have bulk quantity discount pricing:
Discount code 'A' -- 10 or more: 5% off; 50 or more: 10% off.
| ||||||||||
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | ||||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||||||
Dimensions in Inches
| SIS Catalog Cross Reference | |
|---|---|
| Page # | Part Numbers |
| A74 - Ceramic Insulators | Z13 |
| A75 - Ceramic Insulators | NC110, NC114, NC18, NC23, NC24 |
| A76 - Ceramic Insulators | NC121, Z35 |

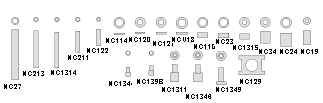

| A77 - Ceramic Insulators | NC1344 |
| B19 - Ceramic Insulators for Thermo* | Z13 |
| B48 - Nermag Mass Spec Accessories | NC110, NC114, NC1344, NC18, NC23, NC24, Z13, Z35 |
