We are constantly adding insulators for Kratos and other manufacturer's instrument systems. The following alumina insulators are currently available for the Kratos Mass Spectrometers. If other sizes and/or types are required, please write us, give us a call or send an old or damaged unit and we will see if we can supply it. All listed insulators are constructed from a high quality aluminum oxide ceramic unless otherwise noted. Additional ceramic and sapphire insulators are listed in the ceramics section of these pages.
The following alumina ceramic insulators are offered to replace the fragile quartz Kratos originals, except K58013P which is quartz.
All dimensions in inches, tolerances +/- 0.002 inches.

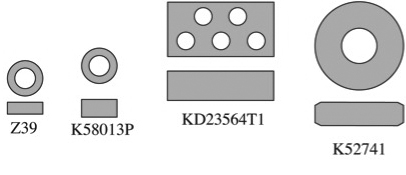

| Ceramic Insulator for Kratos MS, UOM=EA | |||||||||
| Part No. | Kratos # | OD (in) | ID (in) | Thickness (in) | est wt. |
Quantity In Stock |
Price | Quantity to order |
|
|---|---|---|---|---|---|---|---|---|---|
| Z38 | |||||||||
| 58-636 | 6.0 | 3.5 | 1.0 | 0.25 | 23 | $11.50(*A) | |||
| Z39 | |||||||||
| 58-028 | 6.0 | 3.5 | 2.0 | 0.25 | 30 | $11.50(*A) | |||
| Z40 | |||||||||
| 58-055 | 6.0 | 3.5 | 5.0 | 0.25 | 0(#) | --- | --- | ||
| Z41 | |||||||||
| 58-037 | 6.0 | 3.5 | 6.0 | 0.25 | 0(#) | --- | --- | ||
| Z43 | |||||||||
| --- | 17.0 | 7.0 | 0.9 | 0.25 | 0(#) | $25.00(*A) | |||
| K58013P | |||||||||
| 58-013 | 6.0 | 3.5 | 3.0 | 0.25 | 0(#) | $17.50(*A) | |||
| KD23564T1 | Contactor Block | ||||||||
| D23564T1 | --- | --- | --- | 0.25 | 4 | $54.16(*A) | |||
| K52741 | |||||||||
| 52-741 | 15.0 | 6.0 | 4.0 | 0.25 | 0(#) | $30.00(*A) | |||
|
(*_) Marked parts have bulk quantity discount pricing:
Discount code 'A' -- 10 or more: 5% off; 50 or more: 10% off.
| |||||||||
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | |||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||||||
| SIS Catalog Cross Reference | |
|---|---|
| Page # | Part Numbers |
| A75 - Ceramic Insulators | K58013P, Z38, Z39, Z40, Z41 |
| B46 - Kratos MS Accessories | K58013P, Z38, Z39, Z40, Z41 |
