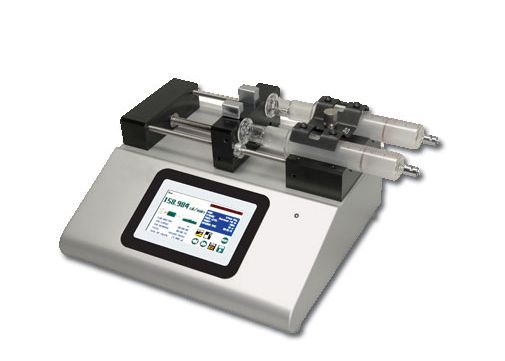

KD Scientific Legato 200 Infuse Only Syringe Pump
Hover over image to zoom

Features

Infuse only dual syringe pump. Accommodates 2 syringes. User definable flow rates with selectable target volume or time values to control the total infusion volume.

  • Holds one or two syringes from 0.5 ul to 140 mL
  • High resolution color touch screen
  • Real time clock
  • Unparallel ease of use
  • Touch pad "lock" feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 75 lbs linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam

Specs

Specifications
Accuracy +/- 0.35% Reproducibility +/-0.05%
Syringes (min/max) 0.5 µl to 140 mL Flow Rate
  • Minimum (0.5 µl syringe):5 pl/min.
  • Maximum (140 mL syringe): 220.97 mL/min
Display (min/max) 4.3 WQVGA TFT Color
Display with Touchpad
Non-Volatile Memory Stores all Settings
Connectors (min/max)
  • RS232 - 9 pin D-Sub Connector
  • RS485 - IEEE-1394 6 pos
  • USB - Type B
  • I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max) 34 kg (75 lbs)@ 100% Force Selection
Drive Motor 1.8 degree Stepper Motor Motor Drive Control Microprocessor with 1/16 microstepping
Number of Microsteps per one rev. of Lead Screw 6,400 Step Rate - Minimum 27.5 sec/µstep
Step Rate - Maximum 26 µsec/µstep Pusher Travel Rate - Minimum 0.36 µm/min.
Pusher Travel Rate - Maximum 190.80 mm/min Power 100 - 240 VAC: 50/60 Hz,50W, 0.5A fuse
Dimensions 8.89 cm x 25.4 cm x 24.94 cm (3.5" x 10" x 11") Weight 4.9 kg (10.75 lbs.)
Operating Temperature 4 ° C to 40 ° C (40 ° F to 104 ° F) Storage Temperature -10 ° C to 70 ° C (14 ° F to 158 ° F)
Humidity 20% to 80% RH non condensing Regulatory Certification CE, UL, CSA, CB Scheme, EU RoHS
Part No. Description Price
EA
Order
788200 KDS Legato 200 Infuse Only, Legato 200, 110V/220V $3006.00
