New Era Syringe Pump Accessories

• Dual Pump Plumbing Kit
• OEM Starter Kit: For NE-5xx OEM models only
• OEM -NET
• Foot Switch
• Ana-Box Closed Loop Analog Sensor
• Pump-to-PC Primary Network Cable
• RS-232 to USB Converter
• Pump-to-Pump Secondary Network Cable
• Pump Sychronization Cables
• "Lockout Disable" Key
• Single and Dual Valve Control Boxes
• Syringes and Plumbing Accessories

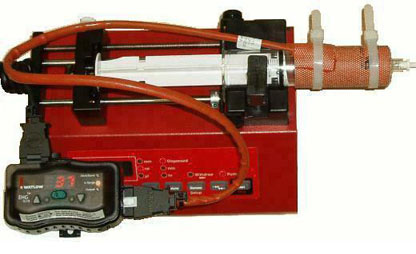

• Syringe Heaters
• Pump Software

---

Dual Pump Plumbing Kit

The pumps are often used in dual-pump setups, possibly with check valves for continuous pumping so that one syringe dispenses while the other reloads.

Features

• For use with the New Era continuous infusion system or dual infusion system
• Provides a dual check valve for two syringes, withdraw will pull fluid from a reservoir and infusion will output into a separate line
• The kit is pre-assembled, all you need to do is plug in the syringes
• Each dual check valve uses 6" of 1/8" tubing to connect to a Y connector, one for the reservoir and one for output; each Y connector has 5' of tybing to make connections to your application. Two 60cc Terumo syringes are included.
• Individual parts are also available

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
PDKIT	DUAL PUMP PLUMBING KIT	EA	0	0(#)	$20.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

OEM Starter Kit: For NE-5xx OEM models only

Features

• Allows user to interactively communicate to the pump with a computer
• Power supply for the NE-500 OEM Pump
• Needed for additional OEM pumps used in a pump network in a laboratory setting
• Includes: power supply, Pump-to-PC network cable, and user manual

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
OEMSTARTER		---		0(#)	CALL
OEMSTARTERUS	US Power Supply 12VDC 0.8 A; Pump to PC Network Cable	EA	0	0(#)	$25.00
OEMSTARTERUM	US Power Supply 12VDC 1A Pump to PC Network Cable	EA	0	0(#)	$25.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

OEM-NET

Power supply and secondary cable only. For use when networking two or mor OEM NE-500 syringe pumps together. Must use the secondary cable in order to complete this application

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
OEMNET		---		0(#)	CALL
OEMNETUS	US Power Supply 12VDC 0.8 A with Secondary Cable	EA	0	0(#)	$10.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

Foot Switch

Features

• Start, stop, or trigger the next phase on your syringe pump
• Attach to an NE-500 to allow stand-alone operation
• Utilizes the TTL logic port on syringe pump
• Quick and simple setup

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
ADPT2	FOOT SWITCH	EA	0	0(#)	$25.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

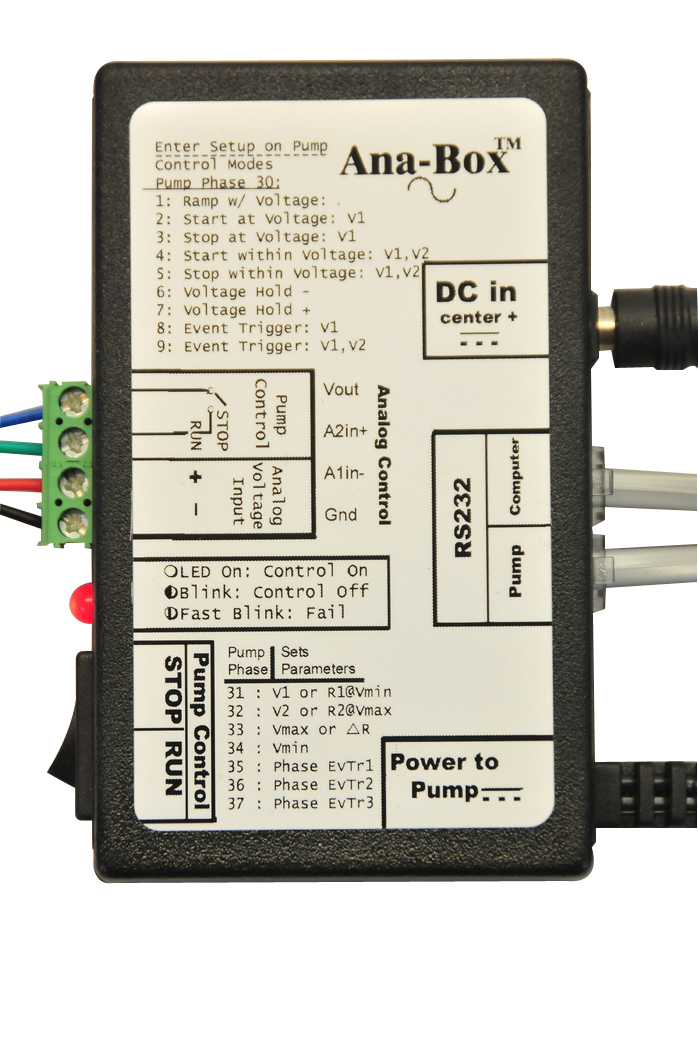

Ana-Box™ - Closed Loop Analog Sensor Interface

Features

• Vary the pumping rate in proportion to a variable voltage input
• Start or stop the pump at set voltages
• Vary the pumping rate to maintain a voltage window
  i.e. - maintain a pressure or pH level
• Attaches to any pump in the NE-1000 Family
• Operates stand alone. Does not need a computer to operate.
• Optionally outputs event data to a computer for data logging

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
ADPTANABOX	ANA-BOX ANALOG INTERFACE	EA	0	0(#)	$99.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

Pump-to-PC Primary Network Cable

Features

• Allows full control over syringe pumps through your computer
• DB-9 adapter connects to 9-pin serial port (25-pin adapters available upon request)
• Utilizes the RS-232 communications port of syringe pump
• Available in 7' and 25' length cable
• Quick and simple setup

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
CBLPCPUMP7	Pump-to-PC Network Cable - 7'	0	0(#)	$15.00
CBLPCPUMP25	Pump-to-PC Network Cable - 25'	0	0(#)	$25.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

RS-232 to USB Converter

Features

• Adapter to add a DB-9 RS-232 serial port to your computer by using a USB port
• Includes software driver CD

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
CBLUSB232	RS-232 TO USB CONVERTER	EA	0	0(#)	$10.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

Pump-to-Pump Secondary Network Cable

Features

• Allows networking of two or more syringe pumps to a single computer
• Quick and simple setup
• Utilizes the RS-232 communications port of syringe pump
• Available in 7' and 25' length cable
• Requires first pump to be connected with primary network cable

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
CBLNET7	PUMP TO PUMP CABLE 7FT	0	0(#)	$2.00
CBLNET25	PUMP-TO-PUMP CABLE 25FT	0	0(#)	$4.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

Pump Synchronization Cables

CBL-TTL-1 Synchronization Cable

Features

• Used for creating a continuous infusion system or dual infusion system
• Synchronize pumping direction of two syringe pumps so that they change directions, start, and stop as one unit
• Utilizes the TTL logic port on syringe pump - See new version below for using the RS-232 ports
• 7' cable
• Quick and simple setup

CBL-Dual Synchronization Cable

Features

• Used for creating a continuous infusion system or dual infusion system
• Establishes a communications link between two pumps to duplicate the exact or inverse commands issued to one pump
• Utilizes the RS-232 logic port on syringe pump
• Quick and simple setup
• This is the new replacement cable for CBL-TTL-1 unless the use of the TTL ports for synchronization is preferred

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
CBLTTL1	Pump Sync Cable; TTL	0	0(#)	$20.00
CBLDUAL	Pump Synchronization Cable - RS-232 Logic Port	0	0(#)	$20.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

"Lockout Disable" Key

Features

• For use with the syringe pump's "Lockout Mode"
• Prevent unauthorized or accidental changes to the settings by locking the keypad
• The "Lockout Disable" key unlocks the deypad and allows settings to be changed
• Utilizes the TTL logic port on syringe pump
• Quick and simple setup

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
ADPTLOCKOUT	Lock Out Disable Key	EA	0	0(#)	$10.00
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

Single Valve Control Box

Features

• Attach your 12V DC valve and the control box will open or close your valve according to the pumping direction
• Utilizes the TTL logic port on syringe pump
• Includes power supply for valve

Dual Valve Control Box

Features

• Attach your two 12V DC valves and the control box will open or close your valves according to the pumping directions if your two pumps
• Includes CBL-TTL-1 cable to allow synchronize pumping between two pumps
• Utilizes the TTL logic ports on both syringe pumps
• Includes power supply for valves

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
ADPTVALVEINTER1	Single Valve Control Box	0	0(#)	$85.00
ADPTVALVEINTER2	Dual Valve Control Box	0	0(#)	CALL
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

Pump Software

Pump Terminal Emulator

Features

• Communicates with any pump in the NE-1000 Family
• DOS-level terminal emulator
• Provides an interactive user interface for communications
• Command file features
• Click here to download

WinPumpControl

Features

• 3rd party pump driver software
• Free trial version limited to one pump control and limited logging details
• Full description at 3rd party website
• Direct download link

WinPumpTerm

Features

• GUI interface for pump control and command interface
• V0.6 Beta - a work in progress
• Click here to download
