New Era Pump Systems Syringe Heater

Syringe Heater Kit

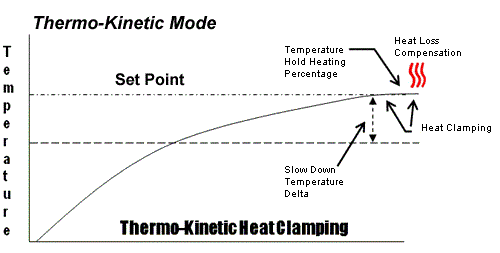

Operation: The syringe heater constantly monitors and displays the temperature measured on the primary heating pad. While regulating the temperature, the Heat Clamping will hold the set temperature. Thermo-Kinetic Mode reduces temperature swings and tightens the Heat Clamping at the set temperature by dynamically adjusting the heating by reacting to changes in the temperature measurement and rate of temperature change.

Description: Each syringe heater control unit uses only the primary heating pad to sense temperature. All secondary heater pads connected to same control unit will function according to the temperature on the primary heater pad. For different temperatures or variable environments, use separate control units with primary heater pads. Careful consideration should be taken when using secondary heater pads. Plugging more than 12 syringe heater pads onto one controller is not recommended. In countries where the voltage is above 120V, you must purchase a step-down transformer Model PWR-220-110-E along with heater kit purchase.

Features

Maximum temperature of 185°C.
User adjustable Thermo-Kinetic Heat Clamping for regulation of Set Point temperature.
RS-232 bi-directional control from a computer with built-in RS-232 network driver.
RS-232 network supports up to 100 heaters, pumps & other devices from one PC port.
Power Failure Mode: Restarts the heater Active Mode after a power interruption.
Selectable temperature units of Celsius or Fahrenheit.
Soft power switching for long life.
Non-volatile memory of all operating parameters.
Built-in Security Features:
- Microprocessor monitor and alarm mode cutoff relay
- Dual temperature sensors
- Stop button

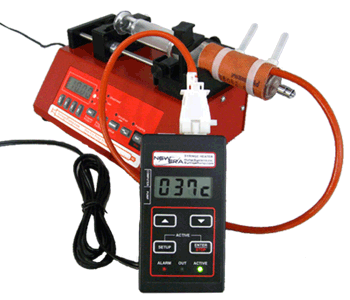

Easy Setup: Attach the primary heater to larger connector (8 pin) to the end of the syringe heater control box. Wrap the heating pad around the syringe body.

Additional Heating Pads

Second Syringe Heating Pad

Features:

For attaching a second heating pad to Syringe Heater Kit
Includes a Y-adaptor to connect to primary heating pad
Temperature sensed in primary heating pad only

Third(+) Syringe Heating Pad

Features

For adding third, up to sixteen, heating pads
Y-adaptor not needed to attach third, and up, heating pads to Control Unit
Temperature sensed in primary heating pad only

NOTE

Dimensions: Heater pad measures 75 mm x 75 mm
Temperature Control: Each syringe heater Control Unit uses only the Primary Heating Pad to sense temperature. All Secondary Heating Pads connected to that control unit function according to the temperature of the primary heating pad. For different temperatures or variable environments, use separate control units with primary heating pads.
Heater Quantity: Plugging more that sixteen syringe heating pads onto one controller is not recommended.
Electrical specifications: uses 110 VAC plug only

Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
UOM=EA
SYRHEATERKIT	Syringe Heater Kit Control Unit plus Primary Heating Pad (and temperature sensor)	0	0^(#)	$399.00	1
SYRHEATERKIT2	Second Heating Pad - with Y connector	0	0^(#)	$100.00	1
SYRHEATERKIT3	Third+ Heating Pad	0	0^(#)	$100.00	1
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

Additional Images

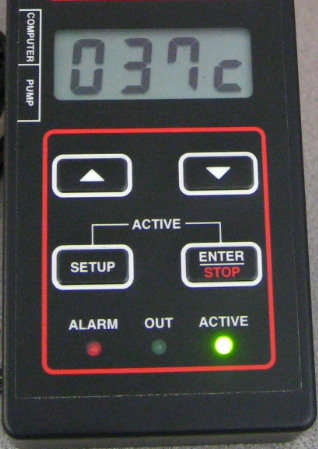

Figure: close-up image of controller.
