OEM Application Syringe Pumps

NE-4500 OEM Syringe Pump

NE-500 OEM Syringe Pump

NE-4500 Double OEM Syringe Pump

NE-4500 does not come with a power supply. Please see OEM Starter Kit and OEM Net below

Features

• Computer controllable: networkable up to 100 pumps
• Stand-alone operation:Pre-program the pump with a dispensing program, then operate the pump from an attached Foot Switch, button, or I/O controller
• Add the OEM Starter Kit to run as a fully functional, stand-alone pump
• Does not have a built-in user interface
• Chassis mountable: 9 1/2"L x 4 1/4"W x 4 1/8"H
• Operates from a 12V DC power source
• Operates from a computer
• Infusion and withdrawal
• Available in High Pressure, Stall Detection & Long Chassis options.
• Holds 2 syringes up to 60cc, and partially filled 140 cc.
• Infusion rates from 0.73µL/hr (1 cc syringe) to 2100 ml/hr (60 cc syringe)
• Set a single pumping rate and/or dispensing volume
• Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
• Network, control, and monitor up to 100 pumps with one computer
• Motor stall detection available in NE-4501 model
• Dispensing accuracy of +/-1%
• Unlimited lifetime technical support
• Two year warranty
• Includes all the advanced functions and programming features of the NE-1000 family
• Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
• Download free pump terminal emulator or check out Windows based SyringePumpPro

• Do you need an upgrade for your Syringe Pump?

Sample syringe configurations, can hold any size syringes below 60 cc.

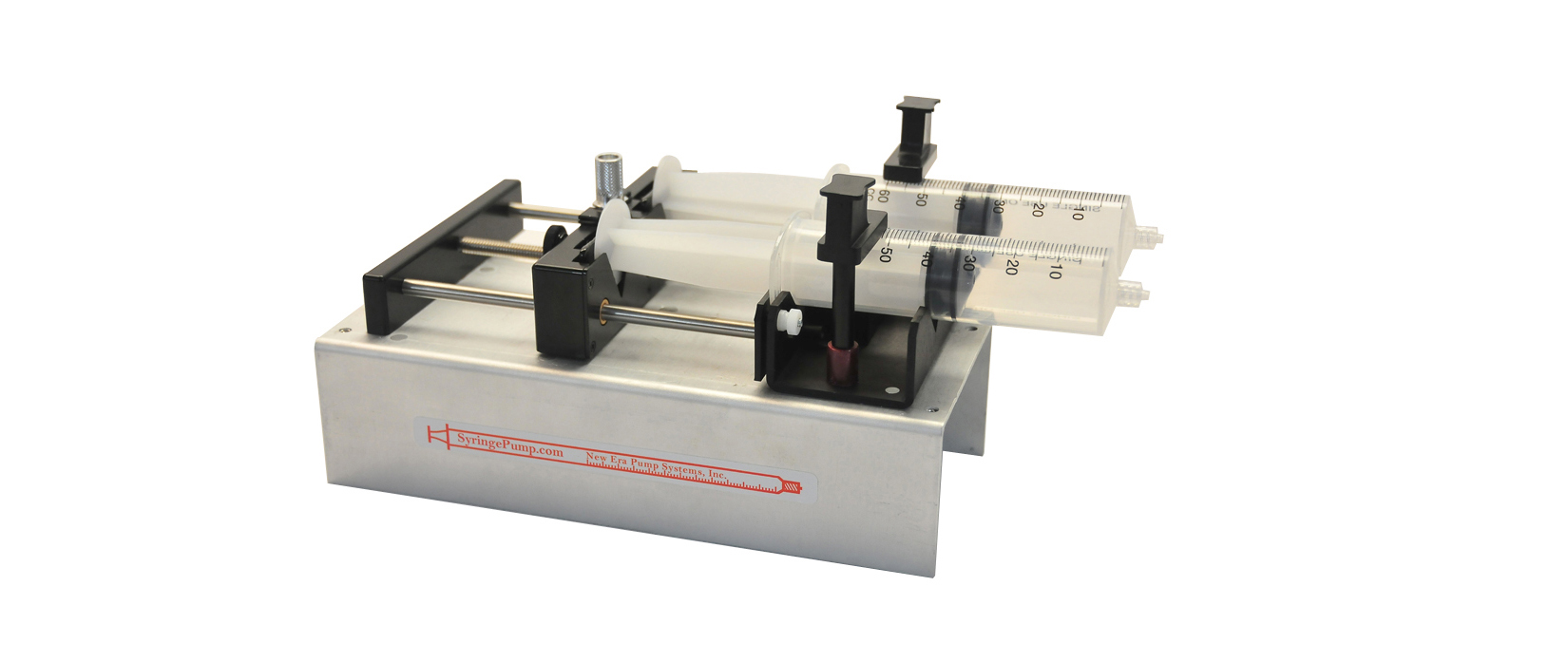

NE-4500L OEM Extra Long Chassis

The NE-4500L includes an extra long chassis on the NE-4500 that will hold and allow 140 ml syringe to open to its full length

NE-4501 OEM Syringe Pump with Stall Detection

The NE-4501 includes an optical encoder on the NE-4500 that will detect and stop the motor during a stall. Typically used in high pressure applications where there is a risk of exceeding the maximum force specified. Without the optical encoder, the pump will continue to cog in the event of a stall.

NE-4501L OEM Extra Long Chassis With Stall Detection

The NE-4501L includes an extra long chassis on the NE-4501 that will hold and allow 140 ml syring to open to its full length with stall detection

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
NE4500	Double OEM Syringe Pump	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$625.00
NE4501	Double OEM Syringe Pump with Encoder	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$680.00
NE4500L	LONG Double OEM Syringe Pump	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$640.00
NE4501L	LONG OEM Double Syringe Pump with stall detection	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$695.00
NE4502X	Microfluidics OEM Double Syringe Pump with stall detection	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$1360.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

Do you need an upgrade for your Syringe Pump?

Model: FW-5-X

Extra Features: X upgrade features Linear/Gradient flow rate ramping, additional advanced programming possibilities, and additional i/o functions, attach external switches, sub program selection structure, speed control switch interface.

Model: FW-5-X2

Extra Features: X2 upgrade includes all features of the X model plus increases the number of programmable phases from 41 to 340, and increases the mas RS-232 baud rate toe 38,400.

OEM Starter Kit: For NE-5xx OEM models only

Features

• Allows user to interactively communicate to the pump with a computer
• Power supply for the NE-500 OEM Pump
• Needed for additional OEM pumps used in a pump network in a laboratory setting
• Includes: power supply, Pump-to-PC network cable, and user manual

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
OEMSTARTER		---		0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	CALL
OEMSTARTERUS	US Power Supply 12VDC 0.8A; Pump to PC Network Cable	EA	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$25.00
OEMSTARTERUM	US Power Supply 12VDC 1A Pump to PC Network Cable	EA	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$25.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

OEM-NET

Power supply and secondary cable only. For use when networking two or mor OEM NE-500 syringe pumps together. Must use the secondary cable in order to complete this application

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
OEMNET		---		0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	CALL
OEMNETUS	US Power Supply 12VDC 0.8A with Secondary Cable	EA	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$10.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

Foot Switch

Features

• Start, stop, or trigger the next phase on your syringe pump
• Attach to an NE-500 to allow stand-alone operation
• Utilizes the TTL logic port on syringe pump
• Quick and simple setup

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
ADPT2	Foot Switch Package	EA	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$25.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.
