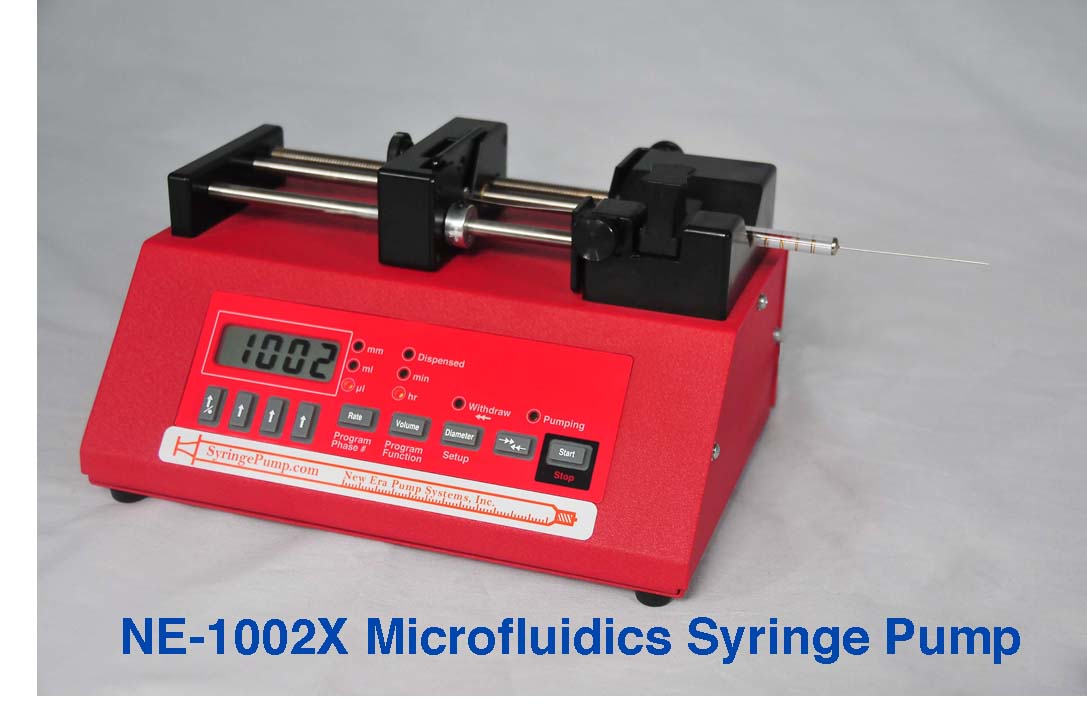

New Era NE-1002X and 4002X Microfluidics Syringe Pump
Hover over image to zoom

Features

  • The smoothest microfluidic syringe pump on the market.
  • Fully programmable; automation capable
  • Holds 1 syringe up to 60 cc
  • Advance Per Step: 4.252232 Nanometers
  • Easy to use keypad interface
  • Space saving chassis: Foot print size of only 5 3/4" x 8 3/4"
    Won't take up unnecessary space on your laboratory or production bench
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Infusion rates from 8 pl/hr (.5 µl cc syringe) to 2545 µl/hr (140 cc syringe)

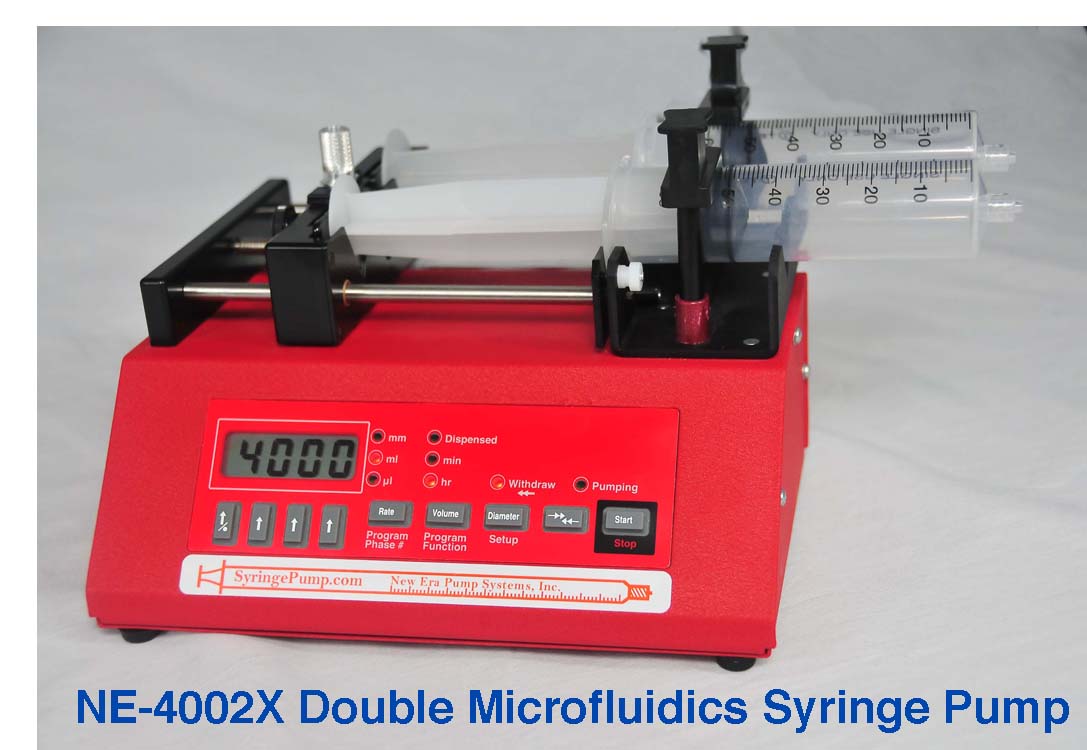

  • Available in Double Syringe (NE-4002X) version
    • Holds 2 syringes up to 60 cc
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty
  • Includes all the advanced functions and programming features of the NE-1000 family
  • Include the X upgrade Smooth Linear/Gradient increasing and decreasing pumping feature.
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately

Specs

Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump
Using 2 NE-1000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion

Example Flow Rates (NE-1002X & NE-4002X)
Syringe Size (µl & cc) Maximum Rate (µl/mn) Minimum Rate (nl/hr)
0.5 µL 18.7 nl/min 0.008
1 µl 37.57 nl/min 0.015
2 µl 74.81 nl/min 0.029
5 µl 2979 nl/min 1.117
10 cc 445.6 167
20 cc 722.9 270.9
30 cc 940.7 352.5
60 cc 1555 582.6
Sample syringe configurations, can hold any size syringes below 60 cc.

Maximum Syringe Size:

Although a miximum of a 60 cc syringe is specified, the pump can hold up to a 140 cc syringe but can only open up to about 120 cc lengthwise.

Part No. Description Power Supply Price
EA
Order
NE1002XUS Microfluidics One Channel Syringe Pump US $1500.00
Qty
NE1002XAS Microfluidics One Channel Syringe Pump Australian $1500.00
Qty
NE1002XBS Microfluidics One Channel Syringe Pump British $1500.00
Qty
NE1002XES Microfluidics One Channel Syringe Pump European $1500.00
Qty
NE4002XUS Microfluidics Two Channel Syringe Pump US $1950.00
Qty
NE4002XBS Microfluidics Two Channel Syringe Pump British $1950.00
Qty
NE4002XES Microfluidics Two Channel Syringe Pump European $1950.00
Qty
