KDS Legato 111 Dual Syringe Infuse/Withdraw Programmable Syringe Pump

Home

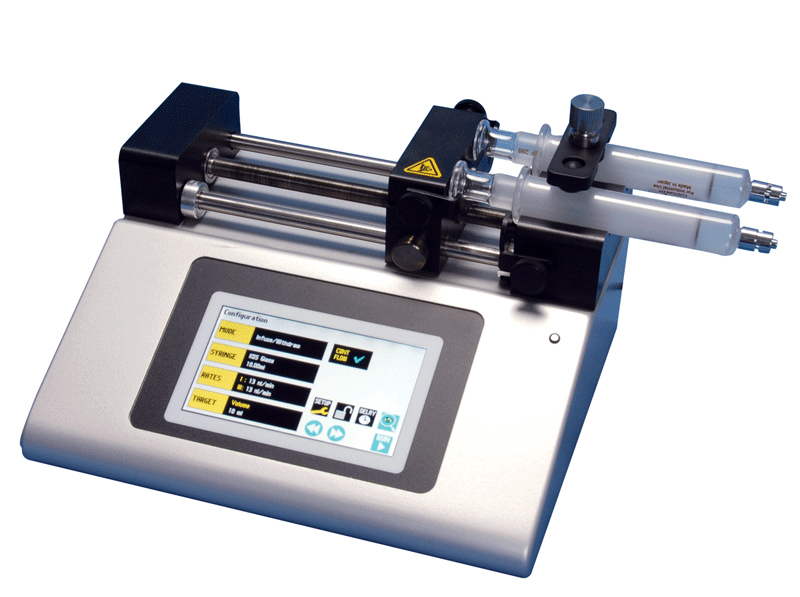

KD Scientific Legato 111 Dual Syringe Infusion Withdrawal Pump - Programmable
Hover over image to zoom

Features

Dual syringe infuse/withdraw with program option for 2 programs. 50 steps each. Accommodates syringes 0.5 µl to 10 mL. User definable flow rates with selectable target volume or time values to control the total infusion volume.

  • Holds one or two syringes from 0.5 µl to 10 mL
  • High resolution color touch screen
  • Unparalled ease of use
  • Touch pad "lock" feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 30 lbs linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam

Specs

Specifications
Accuracy +/- 0.5% Reproducibility +/-0.05%
Syringes (min/max) 0.5 µl to 10 mL Flow Rate
  • Minimum (0.5 µl syringe):1.28 pl/min.
  • Maximum (10 mL syringe): 25.99 mL/min
Display (min/max) 4.3 WQVGA TFT Color
Display with Touchpad
Non-Volatile Memory Stores all Settings
Connectors (min/max)
  • RS485 - IEEE-1394 6 pos
  • USB - Type B
  • I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max) 13.6 kg (30lbs)@ 100% Force Selection
Drive Motor 0.9 Stepper Motor Motor Drive Control Microprocessor with 1/16 microstepping
Number of Microsteps per one rev. of Lead Screw 15,360 Step Revolution 0.069 µm/step
Step Rate - Minimum 27.5 sec/µstep Step Rate - Maximum 26 µsec/µstep
Pusher Travel Rate - Minimum 0.15 µm/min. Pusher Travel Rate - Maximum 159 mm/min
Power 100 - 240 VAC: 50/60 Hz, 50W, 0.5A fuse Dimensions 22.6 cm x 19.05 cm x 15 cm (9" x 7.5" x 5 ")
Weight 2.66 kg (5.9 lbs.) Operating Temperature 4 °C to 40 °C (40 °F to 104 °F)
Storage Temperature -10 °C to 70 °C (14 °F to 158 °F) Humidity 20% to 80% RH non condensing
Part No. Description Price
EA
Order
788111 Legato 111 Dual Syringe I/W programmable, Legato 111, 110V/220V $2334.00
Qty
