KDS Legato 110 Single Syringe Infuse/Withdraw Programmable Syringe Pump

Home

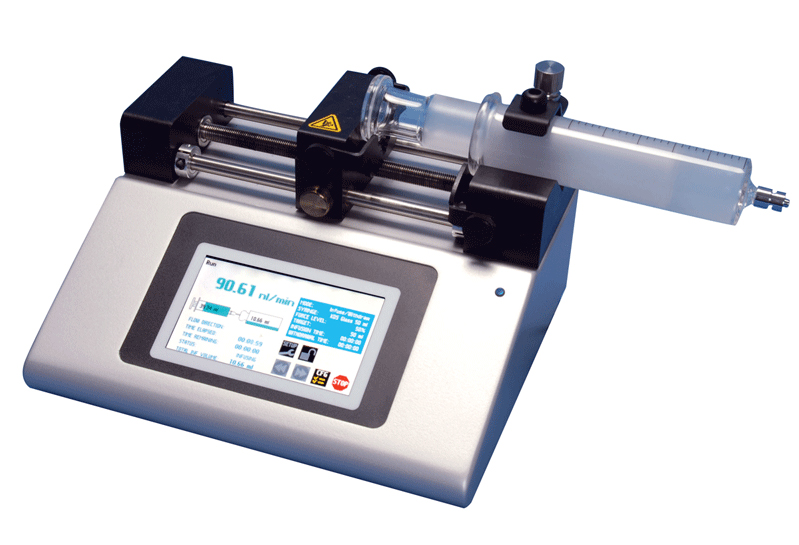

KD Scientific Legato 110 Single Syringe Infusion Withdrawal Pump - Programmable
Hover over image to zoom

Features

Single syringe infuse/ withdraw with program option for 2 programs. 50 steps each. Accommodates syringes 0.5 ul to 60 mL. User definable flow rates with selectable target volume or time values to control the total infusion volume.

  • Holds one syringe from 0.5 ul to 60 mL
  • High resolution color touch screen
  • Unparalled ease of use
  • Touch pad "lock" feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 30 lbs linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam
  • Programmable

Specs

Specifications
Accuracy +/- 0.5% Reproducibility +/-0.05%
Syringes (min/max) 0.5 µl to 60 mL Flow Rate
  • Minimum (0.5 µl syringe):1.28 pl/min.
  • Maximum (10 mL syringe): 25.99 Ll/min
  • Maximum (60 mL syringe): 88.28 mL/min
Display (min/max) 4.3 WQVGA TFT Color
Display with Touchpad
Non-Volatile Memory Stores all Settings
Connectors (min/max)
  • RS485 - IEEE-1394 6 pos
  • USB - Type B
  • I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max) 13.6 kg (30lbs)@ 100% Force Selection
Drive Motor 0.9 Stepper Motor Motor Drive Control Microprocessor with 1/16 microstepping
Number of Microsteps per one rev. of Lead Screw 15,360 Step Revolution 0.069 µm/step
Step Rate - Minimum 27.5 sec/µstep Step Rate - Maximum 26 µsec/µstep
Pusher Travel Rate - Minimum 0.15 µm/min. Pusher Travel Rate - Maximum 159 mm/min
Power 100 - 240 VAC: 50/60 Hz, 50W, 0.5A fuse Dimensions 22.6 cm x 19.05 cm x 15 cm (9" x 7.5" x 5 ")
Weight 2.66 kg (5.9 lbs.) Operating Temperature 4 °C to 40 °C (40 °F to 104 °F)
Storage Temperature -10 °C to 70 °C (14 °F to 158 °F) Humidity 20% to 80% RH non condensing

Dual Rate System

The Legato 110 DRS is a dual rate system that can deliver two synchronized independent flow rates. We provide the system with two Legato 110 Infuse/Withdraw syringe pumps along with an Input / output communications cable. Using the built-in multi-step programming available in both Legato 110 pumps, the user can create profiles to suit their specific application. We can also help create these programs if necessary.

Part No. Description Price
EA
Order
788110 Legato 110 Single Syringe I/W programmable, Legato 110, 110V/220V $2313.00
Qty
DRS
788110DRS Legato 110 Legato 110 DRS, 110V/220V $4887.00
Qty
