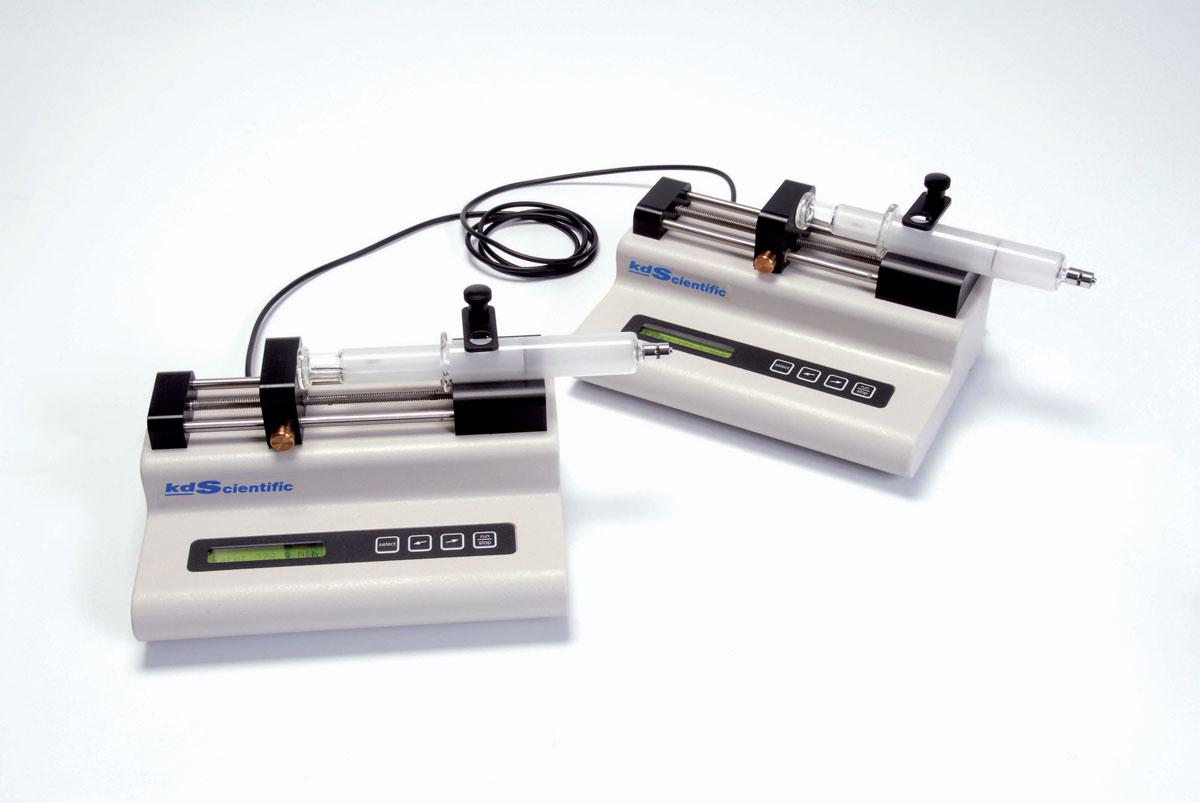

Activate two KDS 100 pumps simultaneously with one push of the start key. Set each pump with a different flow rate and the pumps will infuse at the same time. The system includes two KDS 100 pumps and the cable to link the pumps together. The two pumps can also be operated as standard independent KDS 100's.
| Specifications | |
|---|---|
| No. of Syringes | One (two pumps; each pump holds 1 syringe) |
| Syringe Size (Min./Max/) | 10µl to 60ml |
| Min. Flow Rate | 0.1µl/hr |
| Max. Flow Rate |
|
| Linear Force | 20 lbs. (9 kg) |
| Advance per Microstep | 0.529 micron (1/2 step) |
| Max. Step Rate | 400/sec. (1/2 step) |
| Min. Step Rate | 1/30 sec (1/2 step) |
| Accuracy | +/- < 1 % |
| Reproducibility | +/- 0.1 % |
| Part No. | Description | UOM | est wt. |
Quantity In Stock |
Price | Quantity to order |
|---|---|---|---|---|---|---|
| 780510 | KDS 510 Dual Rate Pump System; KDS 510; 110V | EA | 0 | 0(#) | $2829.00 | |
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | ||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||
