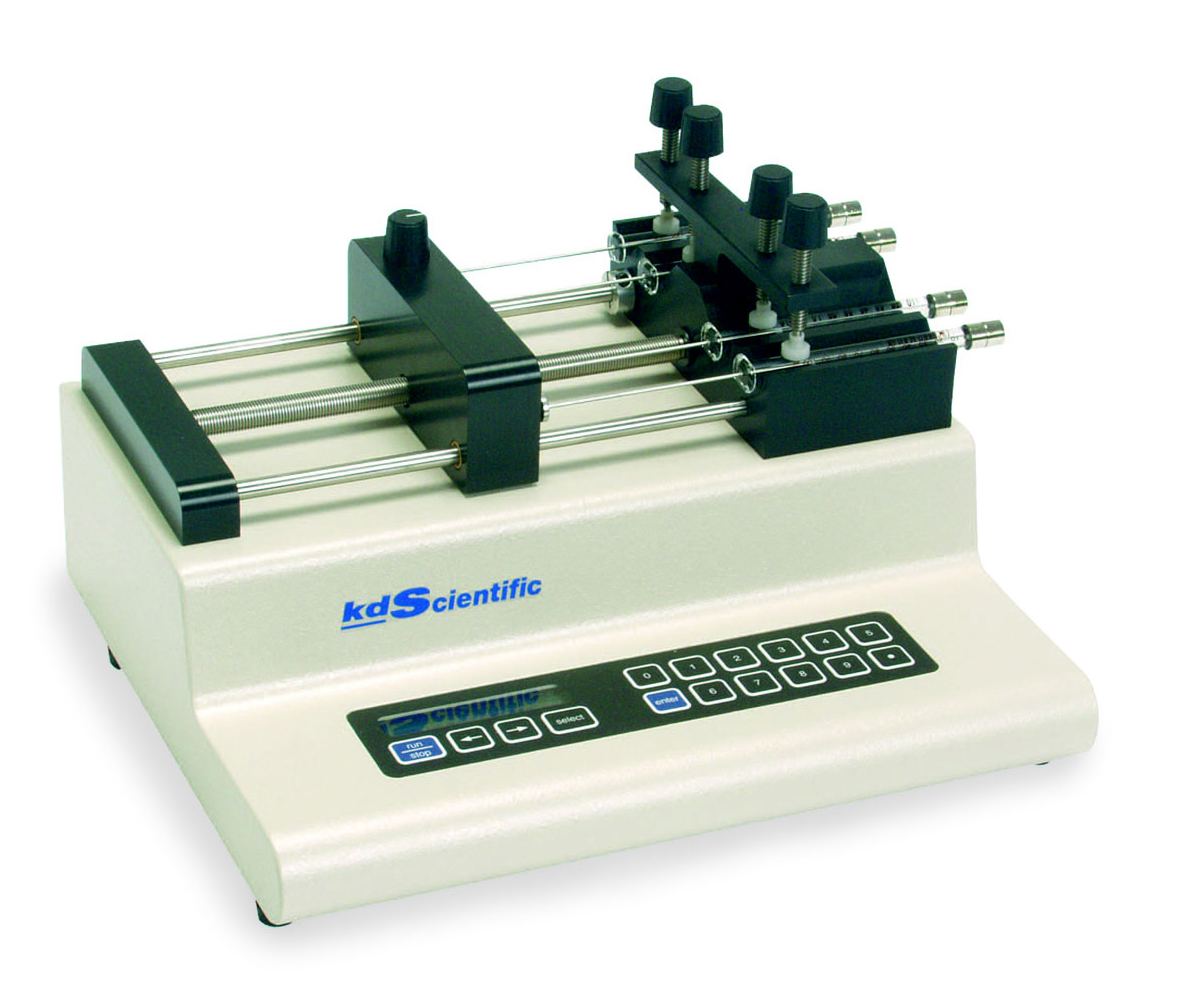

KD Scientific KDS250 Microdialysis Infusion Pump
Hover over image to zoom

Features

Four Syringe Microdialysis Infusion Pump. Each syringe can be sized differently and is clamped independently.

  • Multiple Syringe Holder:
    • Four syringes, 10 µl - 10 mL
    • Separate clamping accommodates different sizes
    • Syringes may be positioned independently for sequential dispensing by the pusher block.
  • Backlight LCD display
  • Knob locks/unlocks drive block for effortless, drag-free adjustment
  • Simple menu-driven setup:
    • select syringe size from displayed table
    • dispense volume
    • dispense flow rate
  • Continuous dispense volume display
  • Preset volume control and automatic shut-off
  • Settings can be reviewed or changed during operation
  • Stall detection
  • Choice of unit selection
  • Last settings stored in permanent memory
  • Built-in RS232C interface for computer "daisy chaining" up to 100 pumps
  • TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
  • Optional multi-step keypad programmable feature (KDS250P)

Specs

Specifications
Pump Type Infusion
Maximum No. of Syringes Up to Four
Syringe Size 10 µl to 10 mL (4 syringes)
Dimensions
  • 11" x 9" x 6"
  • 28 cm x 23 cm x 15 cm
Weight 9 lbs (4 kg)
Linear Force 40 lbs. (18 kg) min.
Advance Per Microstep 0.165 micron (1/16 step)
Max Step Rate (1/2 Step) 1600 steps/sec
Min. Step Rate 1/100 sec.
Accuracy +/- < 1%
Reproducibilty +/- 0.1%
Audible Alarm (Optional)

Part No. Description Price
EA
Order
780250 KDS 250 Nanoliter 4 syringe Infusion Pump, KDS 250, 110V $3518.00
Qty
780252 KDS 250 Nanoliter 4 syringe Infusion Pump Programmable, KDS250P, 110V $4388.00
Qty
