KDS 230 Infuse/Withdraw Syringe Pump

Home

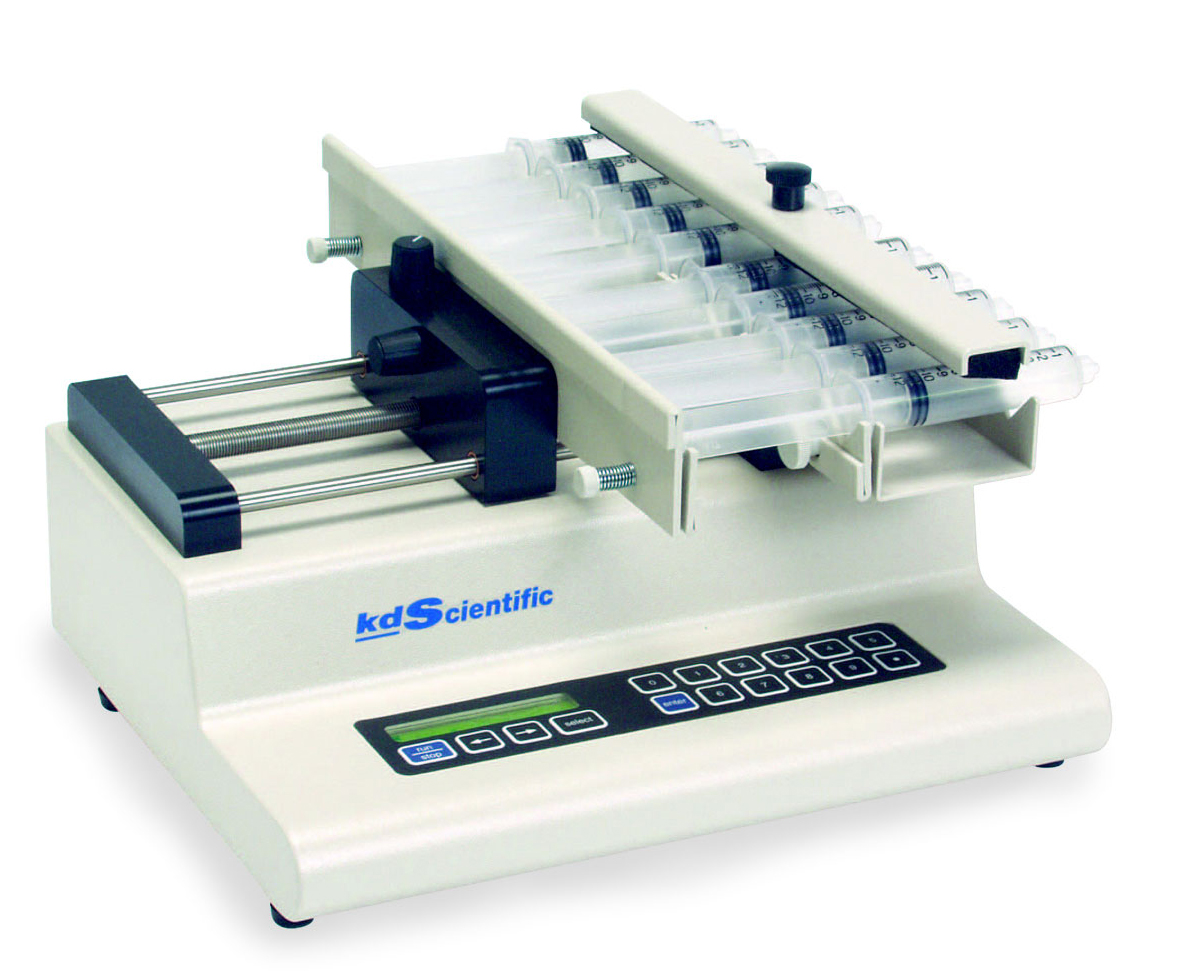

KD Scientific KDS 230 Infuse Withdraw Syringe Pump
Hover over image to zoom

Features

Ideal for applications requiring multiple syringes, the KDS230 is an adaptation of the KDS210. The pump operates exactly like a KDS210, but has been modified to hold up to 10 syringes.

  • Multiple syringe holder:
    • One to ten syringes, 10 µl - 10 mL
    • One to six syringes, 20 mL - 60 mL
    • One to four syringes, 100 mL - 140 mL
  • Withdrawal then infusion
  • Backlit LCD display
  • Knob locks/unlocks drive block for effortless, drag-free adjustment
  • Simple menu-driven setup:
    • select syringe size from displayed table
    • dispense volume
    • dispense flow rate
  • Continuous dispense volume display
  • Preset volume control and automatic shut-off
  • Settings can be reviewed or changed during operation
  • Stall detection
  • Choice of unit selection
  • Last settings stored in permanent memory
  • Built-in RS-232C interface for computer "daisy chaining" up to 100 pumps
  • TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
  • Independent rate and volume settings for infusion and withdrawal
  • Multiple mode selection:
    • Infusion
    • Withdrawal
    • Infusion then withdrawal
    • Withdrawal then infusion
    • Continuous cycle
  • Optional keypad programmable feature (KDS230P)

Specs

Specifications
Pump Type Infusion/Withdrawal
Max. No. of Syringes Ten
Syringe Size
  • 10 µl to 10 mL (10 syringes)
  • 20 mL to 60 mL (6 syringes)
  • 100 mL to 140 mL (4 syringes)
Dimensions 28 cm x 23 cm x 14 cm (11" x 9" x 5.5 ")
Weight 9 lbs. (4 kg)
Linear Force 40 lbs (18 kg)
Advance Per Microstep 0.165 micron (1/16 step)
MaximumStep Rate (1/2 Step) 1600/sec
Minimum Step Rate 1 step/100 sec.
Accuracy +/-<1%
Reproducibility +/-0.1%
Audible Alarm Optional
Part No. Description Price
EA
Order
780230 KDS 230 Multi syringe Infusion/Withdrawal, KDS230, 110V $3446.00
Qty
780232 KDS 230 Multi syringe Infusion/Withdrawal Programmable, KDS230P, 110V $4318.00
Qty
