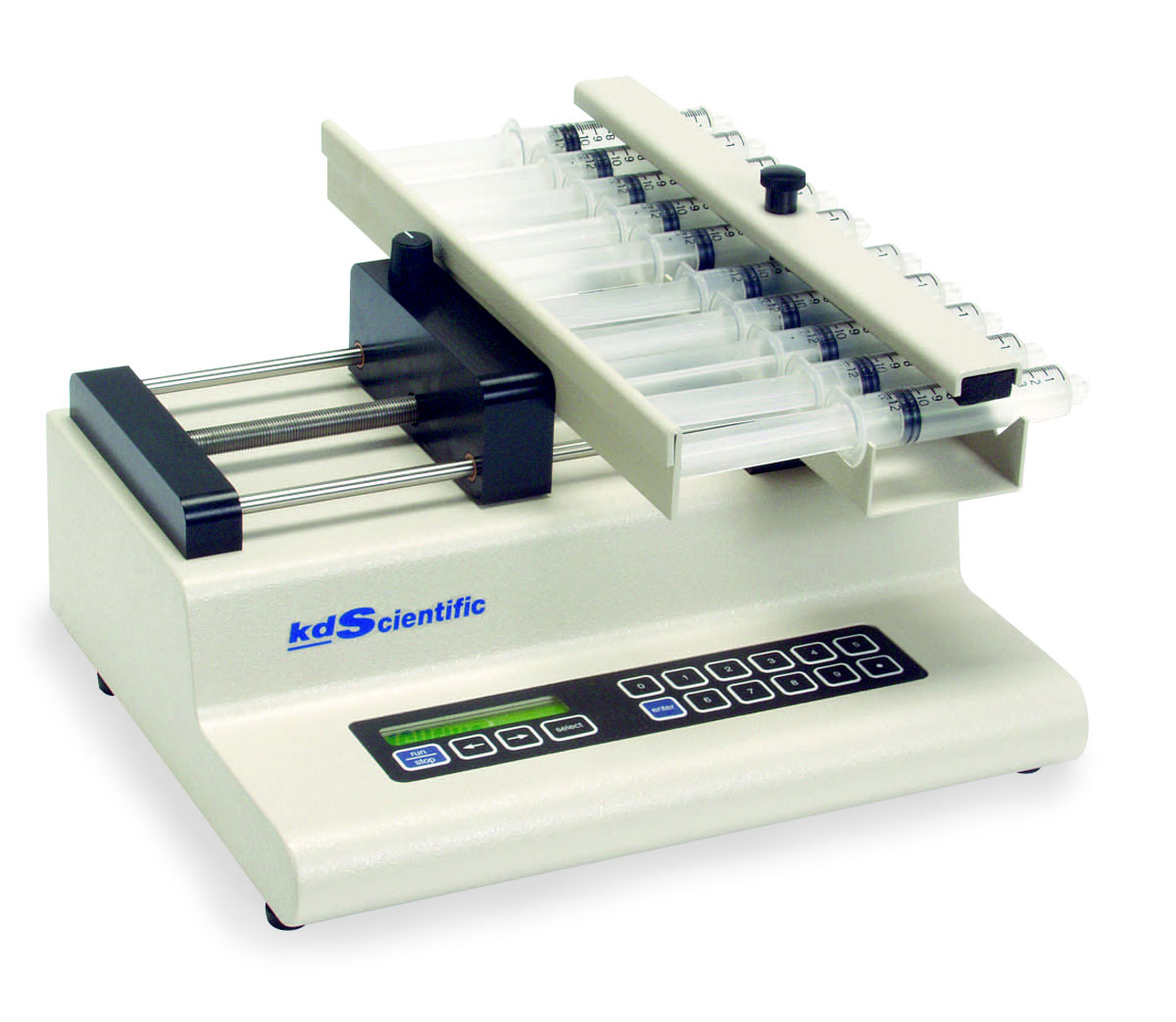

KDS220 Multi-Syringe Infusion Pump

Ideal for applications requiring multiple syringes. Each has been modified to hold up to 10 syringes.

Features

Multiple Syringe Holder:
- One to ten syringes, 10µl - 10ml
- One to six syringes, 20ml - 60ml
- One to four syringes, 100ml - 140ml
Backlight LCD display
Knob locks/unlocks drive block for effortless, drag-free adjustment
Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
Continuous dispense volume display
Preset volume control and automatic shut-off
Settings can be reviewed or changed during operation
Stall detection
Choice of unit selection
Last settings stored in permanent memory
Built-in RS232C interface for computer "daisy chaining" up to 100 pumps
TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
Optional multi-step keypad programmable feature (KDS220P)

Specifications
Pump Type	Infusion
Maximum No. of Syringes	Ten
Syringe Size	One to ten syringes, 10µl to 10ml One to six syringes, 20ml to 60ml One to four syringes, 100ml to 140ml
Dimensions	11" x 9" x 55" 28cm x 23cm x 14cm
Weight	9.5 lbs (4.3 kg)
Linear Force	40 lbs. (18 kg) min.
Advance Per Microstep	0.165 micron (1/16 step)
Max Step Rate (1/2 Step)	1600 steps/sec
Min. Step Rate	1/100 sec.
Accuracy	+/- < 1%
Reproducibilty	+/- 0.1%
Audible Alarm	(Optional)

Part No.	Description	est wt.	Quantity In Stock	Price
UOM=EA
780220	KDS 220 Multi syringe Infusion; KDS 220; 110V	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$3072.00
780222	KDS 220 Multi syringe Infusion Programmable; KDS220P; 110V	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$3909.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.
