KDS101 Infusion Pump

Home

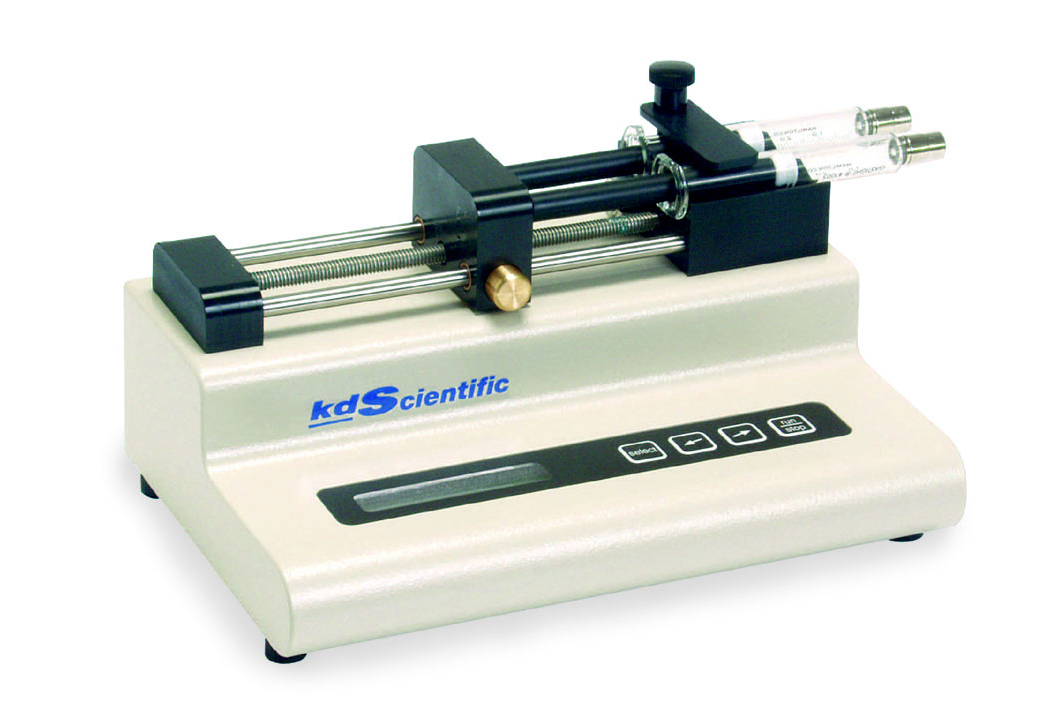

KD Scientific KDS101 Infusion Pump
Hover over image to zoom

Features

A basic single syringe, infusion pump which combines precision with simplicity

  • Holds 2 syringes 10 µl to 10 mL, or a single syringe up to 60 mL
  • Simple menu-driven setup:
    • select syringe size from displayed table
    • set dispense volume
    • set dispense flow rate
  • Easy to read bright, backlight display
  • Dispense volume displayed and has automatic shutoff at completion
  • Volume and flow rate units (µl/hr or mL/hr) are selected automatically based on syringe size
  • Last settings stored in permanent memory
  • Button release of drive nut for easy syringe installation
  • Choice of run / stop after a power interruption

Specs

Specifications
Pump Type Infusion
Maximum No. of Syringes Two (up to 10 mL)
Syringe Size 10 µl to 10 mL (two syr.)
10 µl to 60 mL (one syr.)
Dimensions 9" x 6" x 5"
23 cm x 15 cm x 12 cm
Weight 4.5 lbs (2 kg)
Linear Force 40 lbs. (18 kg)
Advance Per Microstep 0.088 micron (1/2 step)
Max Step Rate (1/2 Step) 400 steps/sec
Min. Step Rate 1 step/30 sec.
Accuracy +/- < 1%
Reproducibilty +/- 0.1%
Audible Alarm (Optional)

Part No. Description Price
EA
Order
780101 KDS 101 Nanoliter Infusion Pump, KDS 101, 110V $1857.00
Qty
