KDS100 Infusion Pump

Home

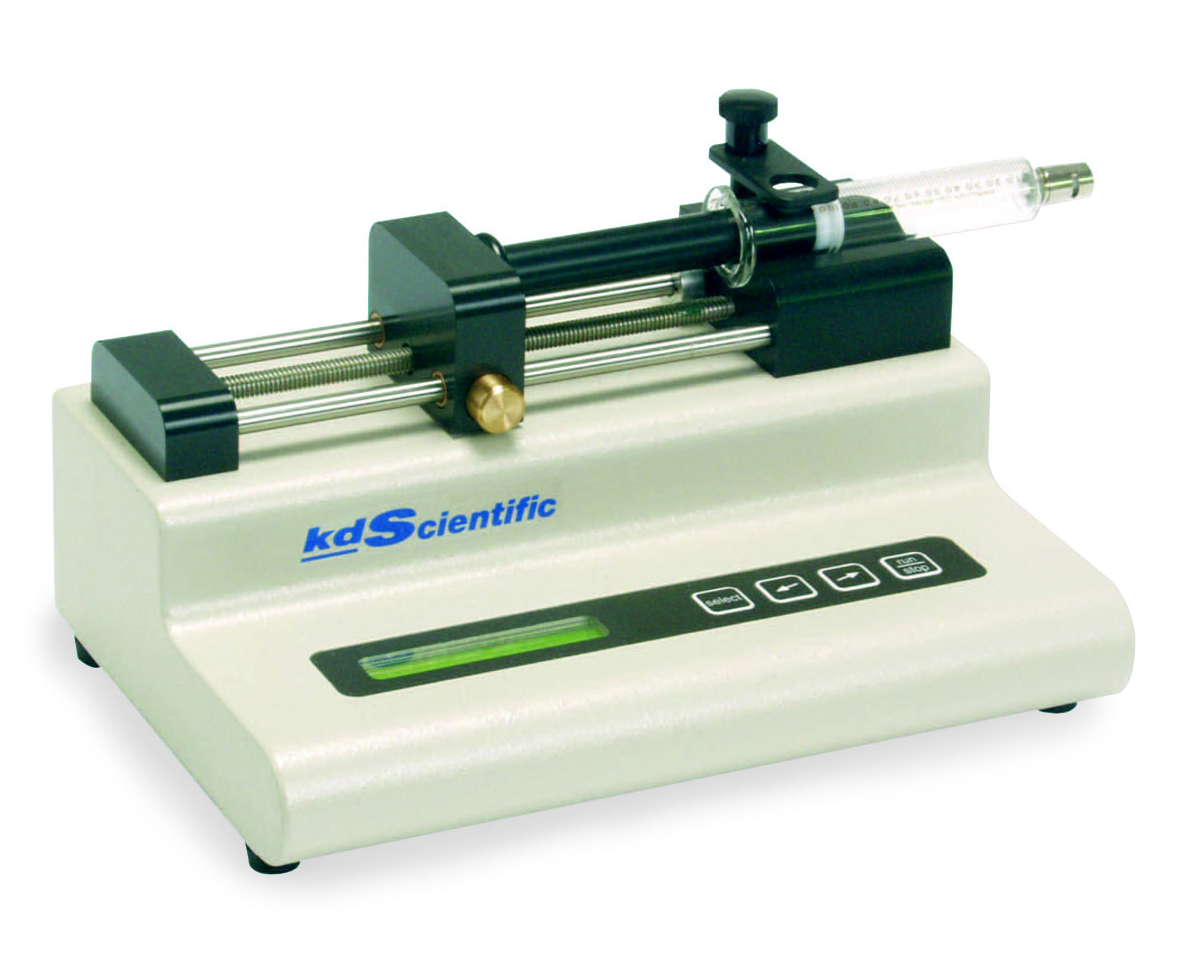

KD Scientific KDS100 Infusion Pump
Hover over image to zoom

Features

A basic single syringe, infusion pump which combines precision with simplicity

  • Single syringe 10 µl to 60 mL, any manufacturer
  • Simple menu-driven setup:
    • select syringe size from displayed table
    • set dispense volume
    • set dispense flow rate
  • Easy to read bright, backlight display
  • Dispense volume displayed and has automatic shutoff at completion
  • Volume and flow rate units (µl/hr or mL/hr) are selected automatically based on syringe size
  • Last settings stored in permanent memory
  • Button release of drive nut for easy syringe installation
  • Choice of run / stop after a power interruption

Specs

Specifications
Pump Type Infusion
Maximum No. of Syringes One
Syringe Size 10 µl to 60 mL
Dimensions
  • 9" x 6" x 5"
  • 23 cm x 15 cm x 12 cm
Weight 4.5 lbs (2 kg)
Linear Force 20 lbs. (9 kg) min.
Advance Per Microstep 0.529 micron (1/2 step)
Max Step Rate (1/2 Step) 400 steps/sec
Min. Step Rate 1 step/30 sec.
Accuracy +/- < 1%
Reproducibilty +/- 0.1%
Audible Alarm (Optional)
Part No. Description Price
EA
Order
780100 KDS 100 Infusion Pump, KDS 100, 110V $1373.00
