KD Scientific EZFlow 2030 Infusion Pump

Home
KD Scientific EZFlow 2030  Infusion Pump
Hover over image to zoom

Features

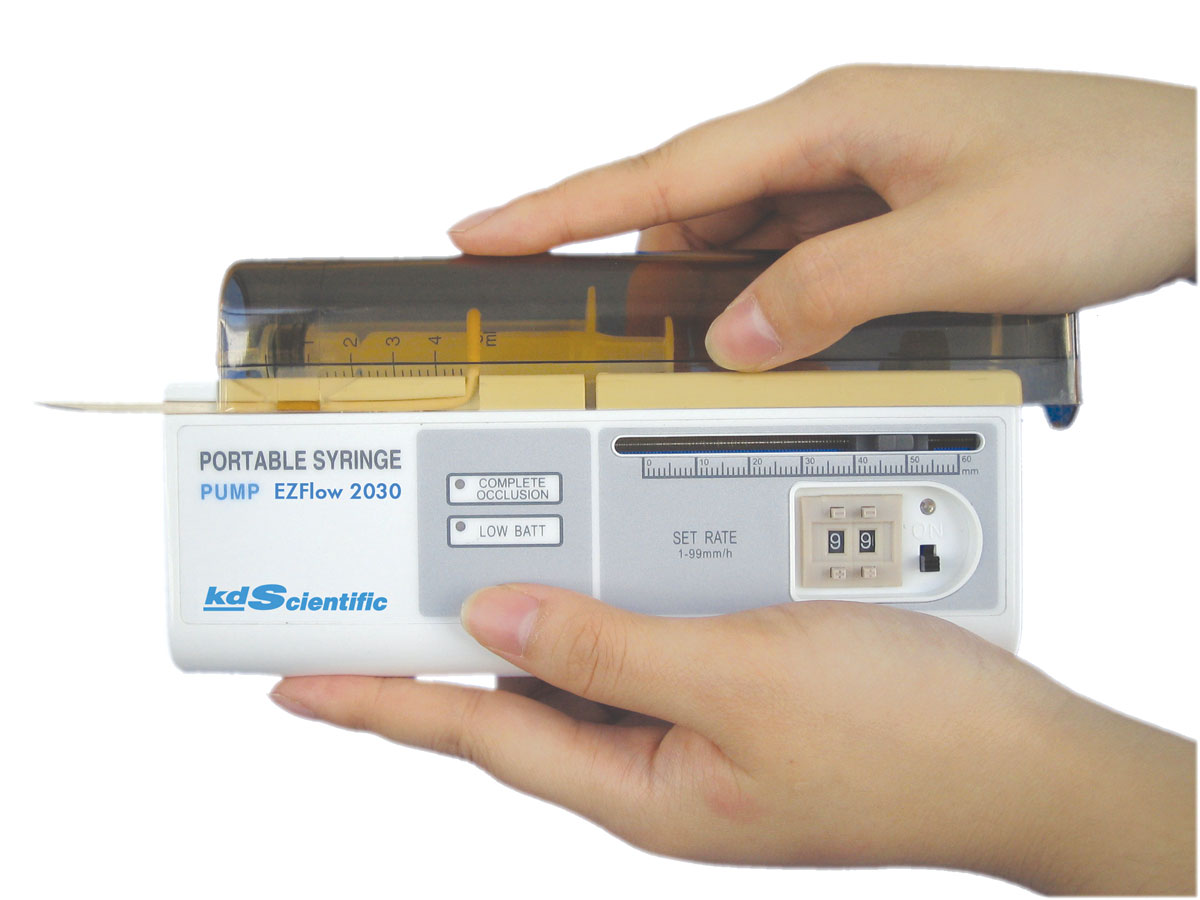

KDS EZflow 2030 A completely portable syringe pump designed to deliver small volumes.

  • Easy to use
  • Linear Flow rate 0.1 - 99 mm/hr
  • Typical Accuracy +/-2.0%
  • Bolus Feature
  • Wide Range of plastic syringes from 1 - 60 mL
  • Audible & Visual Alarms - Complete, Occlusion detection,
  • Low battery
  • Battery operation 30 days
  • DC power supply 4.5V
  • IPX1 Enclosure
  • 12 Month Warranty

Specs

Specifications
Pump Type Infusion
Syringe Size 2 mL to 50/60 mL disposable syringes
Linear Flow Rate 1 mm/hr to 99 mm/hr (linear rate)
Flow Rate Ranges
  • 50/60 mL syringes - 0.7 up to 65 mL/hr
  • 20 mL syringes - 0.35 up to 34 mL/hr
  • 10 mL syringes - 0.1 up to 16 mL/hr
  • 5 mL syringes - 0.1 up to 11 mL/hr
Accuracy less than +/-2°
Alarms Audible alarms with visual indicators of "COMPLETE/OCCLUSION", and "LOW BATT"
Battery Life 30 days or minimum of 30 syringes
Power Supply DC 4.5V (3 AA batteries)
P.C.A. Function (BOLUS)
  • Easily adding 1/4 of preset dosage by bolus cable without interruption of current infusion.
  • Minimum 30 minutes interval for safety protection
Dimensions 60 mm x 166 mm x 30 mm (2.4" x 6.5" x 1.2")
Weight 180 g (0.55 lb) / (240 g with 3 AA batteries)
Included Accessories
  • 3 AA batteries
  • PCA bolus cable
  • Syringe protecting cover x 2
  • Carrying case

Part No. Description Quantity
In Stock
Price
EA
Order
780570 Portable Syringe Pump, EZFLOW 2030, 110V/220V DISCONTINUED------
