KD Scientific EZFlow 2010 Infusion Pump

Home

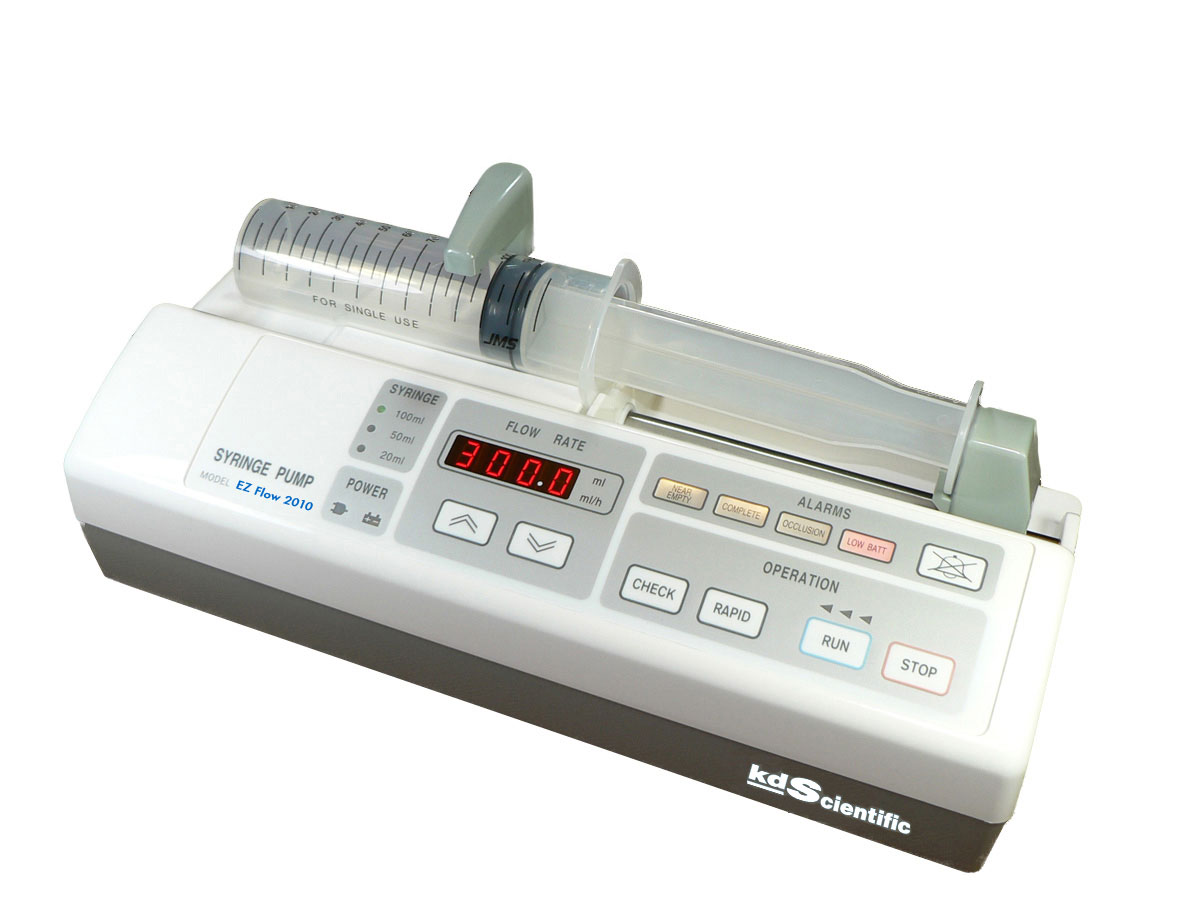

KD Scientific EZFlow 2010  Infusion Pump
Hover over image to zoom

Features

KDS EZflow 2010/2011 Is a durable basic syringe pump designed to enhance quick efficient operation while maintaining simplicity.

  • Large LED Display for Flow Rate Indication
  • Wide Flow rate Range 0.1 - 300 mL/hr
  • Typical Accuracy +/-2.5%
  • Quick Flow Rate Selection
  • Fast Purge Feature
  • Visual Run Indicator
  • Toggle to Indicate Total Volume Dispensed
  • Occlusion Detection
  • Wide Range of plastic syringes 20/30 mL, 50/60 mL and 100 mL
  • Easy Calibration for different syringes
  • Audible & Visual Alarms - Complete, Occlusion detection, Low battery & Near empty
  • Self test & self diagnostic
  • IPX1 Enclosure
  • Up to 4 hours of battery Operation at 50 mL/hr
  • Rechargeable Battery with AC Power or 120VDC
  • CE 0197 certified EC Directive 93/42 EEC, Annex II, Article 3
  • 12 Month Warranty

Specs

Specifications
Pump Type Infusion
Syringe Size 20/30 mL; 50/60 mL; 100 mL
Flow Rate Ranges
  • 20/30 mL syringe - 0.1 mL/hr to 150 mL/hr; in 0.1 mL/hr increments
  • 50/60 mL syringe - 0.1 mL/hr to 300 mL/hr; in 0.1 mL/hr increments
  • 100 mL syringe - 0.1 mL/h to 300 mL/hr; in 0.1 mL/hr increments
Accuracy +/-2.5%
Alarms Audible alarms with visual indicators of quot;NEAR EMPTY", "COMPLETE", "OCCLUSION", and "LOW BATT"
Power Supply
  • 220 VAC 50 Hz 12 VDC (EZFlow 2011)
  • 110 VAC 60 Hz 12 VDC (EZFlow 2010)
Power Consumption Less than 25 VA
Mode of Operation Continuous
Degree of Protection Against Ingress of Fluids Drip-Proof IPX1
Battery Operation 4 hours continuous operation at 50 mL/hr with built-in rechargeable NI-MH battery
Ambient Temperature 5 °C to 40 °C (41 °F to 104 °F)
Dimensions 120 mm x 335 mm x 142 mm (4.72" x 13.2" x 5.59 ")
Weight 5.5 lbs. (2.5 kg)

Part No. Description Quantity
In Stock
Price
EA
Order
780550 Flow Rate Syringe Pump, EZFLOW 2010 (780550 now 115V-220V / 50-60Hz, 110V/220V DISCONTINUED------
