- Model 3530 Series - Single Stage Purity Brass Regulator (This Page)

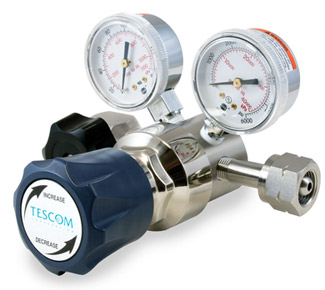

Hover over image to zoom
Description
The Model 3530 Series has been improved to meet the requirements of scientific instruments such as gas chromatographs. The Model 3530 Series has been upgraded to a higher purity, longer lived product design. These regulators provide high purity control for applications where the delivery pressure is monitored.The Model 3530 Series regulators are recommended for use in applications where a slight pressure rise is acceptable due to declining cylinder pressure as gas is withdrawn. The Model 3530 Series is compatible with gases that are non-corrosive in nature and gases that are compatible with the materials in the process stream.
Features
- Brass Barstock construction
- Equipped with an outlet diaphragm valve
- Metal to metal seals throughout
- Bonnet threaded for panel mounting as standard
- Body pre-drilled for back mounting
Specs
| Maximum Inlet Pressure: | 3000 psig (20,700 kPa) |
|---|---|
| Maximum flow Rate (At 2500 psig, N2): | Model 3537: 215 CFH (95 LPM) Model 3538: 215 CFH (95 LPM) Model 3539: 215 CFH (95 LPM) |
| Flow Coefficient (Cv): | 0.06 |
| Operating Temperature: | -40 to 165 °F (-40 to 74 °C) |
| Porting: | 1/4" NPT female |
| Porting Configuration: | 2 high, 2 low |
| Materials of Construction | |
|---|---|
| Body: | B16 Brass Barstock |
| Bonnets: | Nickel Plated Brass |
| Diaphragms: | 316 Stainless Steel |
| Seats: | PFA PTFE |
| Seals: | Metal to Metal |
| Part No. | Description | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|
| 3537 | GAS CYLINDER-SPECIFY CGA BRASS MODEL 3530 | DISCONTINUED | --- | --- |
| 3538 | GAS CYLINDER-SPECIFY CGA BRASS MODEL 3530 | DISCONTINUED | --- | --- |
| 3539 | GAS CYLINDER SPECIFY CGA BRASS MODEL 3539 | 1 | $316.00 | |
| 3536 | GAS CYLINDER SPECIFY CGA BRASS MODEL 3536 | DISCONTINUED | --- | --- |
| * Call for availability. | ||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||
