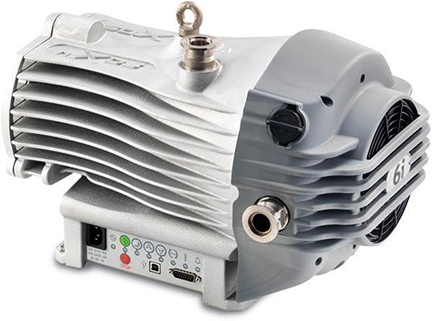

nXDS6i Dry Vacuum Pump by Edwards

Home
nXDS6i Dry Vacuum Pump by Edwards
Hover over image to zoom
Price: 5933
Product ID : A73501983
A73501983 nXDS6i DRY SCROLL PUMP

Description

The nXDSi is the next generation in completely oil free, dry scroll pumps and replaces the XDS Series. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensible vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.

Applications

  • General clean pumping applications
  • Scanning Electron Microscopes - SEM
  • Beam lines and high energy physics
  • Backing turbo pumps
  • Centrifuges, ultra-high speed
  • Coating
  • Cryogenics
  • Degassing/curing - oil, epoxy resin
  • Distillation/extraction/filtration
  • Lasers, gas recovery and recirculation
  • Freeze drying
  • Furnaces
  • Gel drying
  • Laboratory bench top vacuum
  • Mass Spectrometry
  • Leak detectors, Helium
  • Load locks and transfer chambers
  • Rare gas recirculation
  • Rare gas recovery
  • Refrigeration manufacture
  • Research and development
  • Rotary, centrifugal evaporators
  • SEM/FIB (ion beam repair)
  • Solvent recovery
  • Surface science instruments

Specs

nXDS6i
Displacement (swept volume) 60 Hz 6.8 m 3 h -1 (4.0 cfm)
Pneurop pumping speed 60 Hz 6.2 m 3 h -1 (4.0 cfm)
Ultimate vacuum (total pressure) 0.020 mbar (0.015 torr)
Exhaust connection NW25
Weight 58 lbs. (26.2 kg)
Motor Supply Voltage 60 Hz 1 phase 115-220 V or 230-240 V
Power 260W
Inlet Connection NW25
Operating Temperature +50 °F to 104 °F (+10 °C - 40 °C)
Storage Temperature -22 °F - 158 °F (-30 °C - 70 °C)
Noise Level @ ultimate (at 1 meter) 52 dB(A)
Vibration <4.6mms -1 (rms)
Leak Tightness (static) <1 x 10 -6 mbar L s -1 (<7.5 x 10 -7 torr L s -1 )
