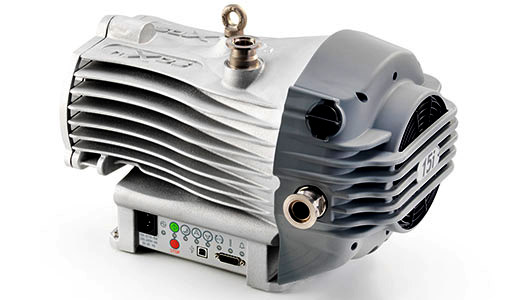

nXDS15i Dry Vacuum Pump by Edwards

Home
nXDS15i Dry Vacuum Pump by Edwards
Hover over image to zoom
Price: 8727
Product ID : A73701983
A73701983 nXDS15i DRY SCROLL PUMP

Description

The nXDSi is the next generation in completely oil free, dry scroll pumps and replaces the XDS Series. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensible vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.

Applications

  • General clean pumping applications
  • Scanning Electron Microscopes - SEM
  • Beam lines and high energy physics
  • Backing turbo pumps
  • Centrifuges, ultra-high speed
  • Coating
  • Cryogenics
  • Degassing/curing - oil, epoxy resin
  • Distillation/extraction/filtration
  • Lasers, gas recovery and recirculation
  • Freeze drying
  • Furnaces
  • Gel drying
  • Laboratory bench top vacuum
  • Mass Spectrometry
  • Leak detectors, Helium
  • Load locks and transfer chambers
  • Rare gas recirculation
  • Rare gas recovery
  • Refrigeration manufacture
  • Research and development
  • Rotary, centrifugal evaporators
  • SEM/FIB (ion beam repair)
  • Solvent recovery
  • Surface science instruments

Specs

nXDS15i
Displacement (swept volume) 60 Hz 17.1m 3 h -1 (10.1 cfm)
Pneurop pumping speed 60 Hz 15m 3 h -1 (8.9 cfm)
Ultimate vacuum (total pressure) 0.007 mbar (0.005 torr)
Exhaust connection NW25
Weight 56 lbs. (25.6 kg)
Motor Supply Voltage 60 Hz 1 phase 115-220V or 230-240V
Power 300W
Inlet Connection NW25
Operating Temperature +50 °F to 104 °F (+10 °C - 40 °C)
Storage Temperature -22 °F - 158 °F (-30 °C - 70 °C)
Noise Level @ ultimate (at 1 meter) 52 dB(A)
Vibration <4.5 mms -1 (rms)
Leak Tightness (static) <1 x 10 -6 mbarls -1 (<7.5 x 10 -7 torrls -1 )
