ASI QuickSplit™ Fixed Flow Splitter - Multiport

Home
ASI QuickSplit™ Fixed Flow Splitter - Multiport
Hover over image to zoom

Description

Post-column splitting is fairly straightforward. Devices contribute to chromatographic dispersion so care must be given to connecting tubing and fittings, especially at low flow rates. The pressure drop specification for all input flow ranges is 500 psi maximum with water at the calibration flow rate. To assure a maximum pressure drop of 500 psi across the splitter, please specify the inlet flow when the splitter is ordered.

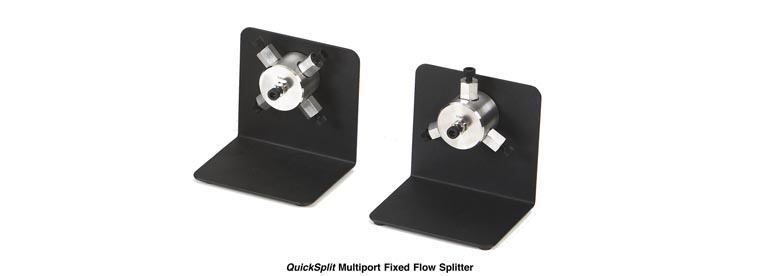

This splitter divides the incoming flow stream into 3 or 4 channels. The QuickSplit Multiport Flow Splitter is ideal for applications that use multiple detectors and/or a fraction collector. Split ratios can be configured to be identical in each channel or custom configured to accommodate specific flow rates at each channel. The low internal dead volume prevents excessive dispersion and the replaceable inlet filter insures robust operation. Available in models for analytical and semi-preparative inlet flow rates. Please specify inlet flow rate and desired ouput flow rate in each channel when you order. All Multiport Flow Splitters are shipped on a mounting bracket.

Applications

  • Analytical Splitters - Multiport Analytical range, 0.1 mL/min. to 5 mL/min. input flow

    These splitters will produce under 500 psi backpressure with water at the inlet flow rate specified with the order. The backpressure will decrease or increase in proportion to the flow rate changes.

  • Semi-Preparative Splitters - Multiport Semi-Prep range, 5 mL/min. to 40 mL/min. input flow

    These splitters will produce under 500 psi backpressure with water at the inlet flow rate specified with the order. The backpressure will decrease or increase in proportion to the flow rate changes.

Split Ratio=Custom
Part No. Description Quantity
In Stock
Price
EA
Order
Analytical Splitters
630PO10CS Analytical Three Port Fixed Flow Splitter-Post Column 0*Lead time for this non-stock item is approximately 21 days. $2088.00
Qty
640PO10CS Analytical Four Port Fixed Flow Splitter-Post Column 0Standard lead-time for non-stock items is approximately two weeks depending on the item. $2192.00
Qty
Semi-Preparative Splitters
630PO20CS Semi-Preparative Three Port Fixed Flow Splitter-Post Column 0Standard lead-time for non-stock items is approximately two weeks depending on the item. $2088.00
Qty
640PO20CS Semi-Preparative Four Port Fixed Flow Splitter-Post Column 0Standard lead-time for non-stock items is approximately two weeks depending on the item. $2192.00
Qty
