ASI QuickSplit™ Adjustable Makeup-Flow Splitters

Home

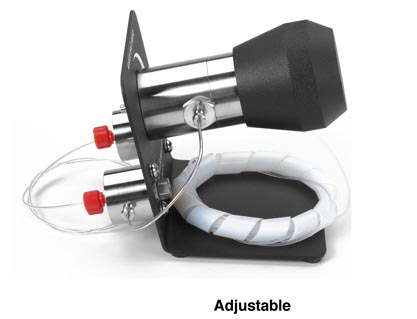

Hover over image to zoom

Description

(Fixed Inlet Flow, Variable Split Ratio)

The Adjustable Makeup-Flow Splitter can also be used with a constant inlet flow rate thereby allowing the user dynamic control over the split ratio and split flow rate. The Adjustable Makeup-Flow Splitters listed below are configured and calibrated assuming the Adjustable Makeup-Flow Splitter will be used to produce a side split ratio range at the specified inlet flow rate. Each Adjustable Makeup-Flow Splitter ships with a calibration plot of inlet flow rate vs. resistor rod setting required to produce the specified split flow within the defined range.

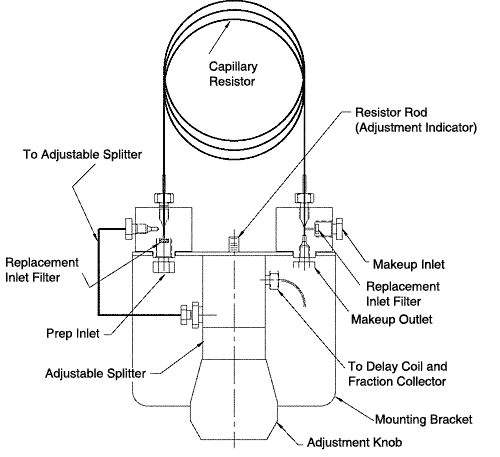

Diagram

These splitters will generate a pressure range from approximately 100 to 800 psi over the split flow range specified. Although the split ratio will remain constant, pressure drop and outlet flow rates will change in proportion to changes in the inlet flow rate. In order to maintain the pressure profile in the calibration plot, it is important to use these splitters at the inlet flow specified. Please specify the actual inlet flow rate with your order if it deviates substantially from the calibration flow rate listed below.

Part No.	Description	Split Flow Rate	Application	Quantity In Stock	UOM	Price
Adjustable Makeup-Flow Splitter
690PO0105	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO0110	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO0120	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO0150	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO1005	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO1010	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO1020	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO1050	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO5005	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO5010	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO5020	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690PO5050	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
690POCSCS	ADJUSTABLE MAKEUP-FLOW SPLITTER		DISCONTINUED	EA	---	---
Adjustable Makeup Capillary Resistors
Part No.	Description	Split Flow Rate	Quantity In Stock	UOM	Price	Order
690POCR05	Replacement Capillary Resistor	Output Flow; 5 uL/min.	DISCONTINUED	EA	---	---
690POCR10	Replacement Capillary Resistor	Output Flow; 10 uL/min.	DISCONTINUED	EA	---	---
690POCR20	Replacement Capillary Resistor	Output Flow; 20 uL/min.	DISCONTINUED	EA	---	---
690POCR50	Replacement Capillary Resistor	Output Flow; 50 uL/min.	DISCONTINUED	EA	---	---
690POCRCS	Replacement Capillary Resistor	Output Flow; Custom	DISCONTINUED	EA	---	---
Replacement Inlet Filters for Both Fixed and Adjustable Splitters
Part No.	Description	Application	Quantity In Stock	UOM	Price	Order
69000632	Inlet Filter Assembly; 2 micron .063" dia. 1uL Volume/pkg 5, Makeup Inlet Port - All Ranges	Makeup-Flow Splitter Inlet Port - Inlet Flow Range - 1 ~ 10 mL/min.; Makeup-Flow Splitter	DISCONTINUED	PK	---	---
69023012510	Inlet Filter & Housing Assembly; 10 micron .125" dia. 4uL Volume/each	Makeup-Flow Splitter Inlet Port - Inlet Flow Range - 10 ~ 50 mL/min.	DISCONTINUED	EA	---	---
69023018810	Inlet Filter & Housing Assembly; 10 micron .188" dia. 10uL Volume/each	Makeup-Flow Splitter Inlet Port - Inlet Flow Range - 50 ~ 100 mL/min.	DISCONTINUED	EA	---	---
69023018820	Inlet Filter & Housing Assembly; 20 micron .188" dia. 12 uL Volume/each	Makeup-Flow Splitter Inlet Port - Inlet Flow Range - 75 ~ 150 mL/min.	DISCONTINUED	EA	---	---
69000123	Straight Thru Hole; Fitting & Housing Assembly; no filter 1 uL Volume/each	Makeup-Flow Splitter Inlet Port	DISCONTINUED	PK	---	---
* Call for availability.
Ordering information. International (non-US) prices available through your local dealer.
