ASI QuickSplit™ Adjustable Flow Splitters

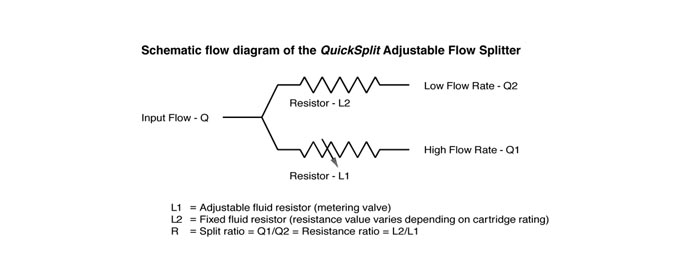

Unlike conventional splitters that use long lengths of capillary tubing, the ASI QuickSplit Fixed Flow Splitter uses fluid resistors to achieve a wide range of split ratios. The flow path of the QuickSplit Adjustable Flow Splitter contains two fluid resistors that form a parallel flow path. The low flow rate stream passes through a fixed resistor cartridge, while the high flow rate stream passes through an adjustable fluid resistor (metering valve). The ratio of these two resisors creates the split flow ratio. the fixed fluid resistor is analogous to a resistor used in an electrical circuit. The compact fluid resistor elements are designed as cartridges for easy replacement with resistance values (L2) rated in pse/mL/min. Because of the extremely low internal volume of the fluid resistors, the solvent composition in both resistors at any instant in time is the same, and therefore viscosity changes associated with gradient runs do not impact the split ratio.

Due to the rugged design, the split ratio repeatability is +/- 1% of setting, and unlike alternative splitter valves or tees, will not be affected by actions that effect input flow such as turning the pump off and on, or pressure spikes. Because the QuickSplit Adjustable Flow Splitter incorporates a metering valve, split ratios can be changed frequently with flow changes that are stable and reproducible. The QuickSplit Adjustable Flow Splitter will create ratios that are not affected by changes in solvent viscosity or pressure and provides direct real time control over split ratio optimization.

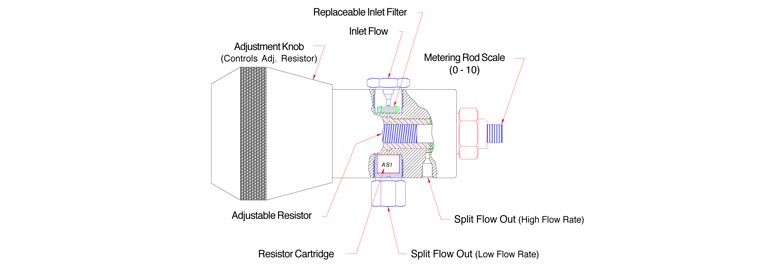

Since the flow rate is indirectly proportional to resistance, changing th resistance in either flow path results in a change to the split ratio. Changing resistance is accomplished by adjusting the metering valve on the high flow rat channel or exchanging the fixed fluid resistor cartridge in the low flow rate channel with a resistor cartridge which has a different resistance rating. Adjusting the metering valve is analogous to changing the capillary tubing length or diameter on conventional tee type flow splitters. The QuickSplit Adjustable Flow Splitter has a convenient mounting bracket and hand adjustment knob to control the split ratio. The split ratio is adjusted by turning the adjustment knob. Split ratios are increased by turning the adjustment knob clockwise, and decreased by turning the knob counter-clockwise. Split ratios are not affected by changes in solvent viscosities or pressure, which makes this product suitable for gradient applications as well as isocratic. The QuickSplit Adjustable Flow Splitter is shipped configured for either post-column or pre-column applications.
