Molecular Jet Separators

All Glass Single Stage Molecular Jet Separators for GC/MS Interfacing

Jet Separator ferrule


Other Jet Separator Parts and Services

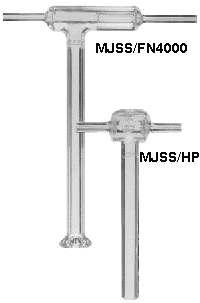

The SGE all-glass single stage molecular jet separator for GC/MS interfacing incorporates a patented system of construction which allows accurate/reproducible jet sizes, alignment and spacing and can be temperature cycled to 450 degrees C depending on the type of connections used. It overcomes the problem of peak broadening or tailing effects experienced with other separators such as the glass frit, membrane separator and so on.

Separator efficiency, although dependent on molecular weight, is independent of the type of molecule rendering the separator equally effective for polar, non polar and labile samples including steroids and insecticides. The separator can also be used with capillary columns, providing make-up gas is used to optimize flow requirements.

A standard model suitable for optimum input flows of 20-30 ml/min. of Helium is available having an inlet jet of 0.1 mm, an outlet jet of 0.25 mm and jet spacing of 0.35 mm. Other sizes are available on request. The optimum flow of 20-30 ml/min. produces typical enrichment ratios (N) of 20-25 and yields (Y) of up to 30% with, for example, methyl stearate. The standard separator is ideally suited for ion source pumping systems enabling MS input flows of 0.1 to 0.2 atmos. ml/min. or less.

N and Y values largely depend on jet sizes and spacing. However, in practice they also depend on other factors including pumping speeds of the separator backing pump and ion diffusion pump. For this reason the above performance data can only be regarded as approximate guidelines. Better results may be achieved with a separator used under optimum conditions.

All jet separators are in stock at S.I.S. for emergency deliveries. For additional details and dimensions, see the article on jet separators in The Mass Spec Handbook of Service, Vol. 1.

*S.I.S. SPECIAL*

Two (2) Glass Filled PTFE Ferrules included FREE with the purchase of any glass jet separator


UOM=EA
Part No. Description Finnigan # ship
wt.
Quantity
In Stock
Price Quantity
to order
OT00760 Glass Jet Seperator, 1/4 in OD Connections, overall length 10 cm. backing pump stem 100 mm long x 12mm OD, (Order Code: MJSS/ST)--- 1 DISCONTINUED------
113505 Glass Jet Seperator, for HP5985; 5987; 5970; 5970A; Finnigan MAT Incos 50; 50B; 500 and XL, (Order Code: MJSS/HP)00301-24124 1 DISCONTINUED------
113502 Glass Jet Seperator, for Finnigan MS, 1015 (Except 1015D), (Order Code: MJSS/FN1015)01512-42158 1 1$350.00
113504 Glass Jet Seperator, for Finnigan 4000, 4500, 4600, 5100, TSQ, (Order Code: MJSS/FN4000)40006-40011 1 DISCONTINUED------
113506 Glass Jet Seperator, for 1020, OWA, (Order Code: MJSS/FNOWA)0008-40010 1 1$375.00
113507 Jet Seperator for Finnigan Model 3000 (Order Code: MJSS/FN3000)--- 1 DISCONTINUED------
113509 Jet Seperator for Shimadzu GC/MS (Order Code: MJSS/Shimadzu)--- 1 DISCONTINUED------
(#) Standard lead-time for out-of-stock items is approximately two weeks.
shopping cart Ordering information. International (non-US) prices available through your local dealer.
SIS Catalog Cross Reference
Page #Part Numbers
113502, 113504, 113505, 113506, 113507, 113509, OT00760
