Digivac Vacuum Gauge Model 200P

Vacuum instrument with thermocouple sensor for 1/8 DIN Panel mount

The Digivac Model 200P is the industry's best value for a rugged panel mount vacuum gauge for measuring through 6 decades of wide range rough vacuum. This unit measures vacuum in Torr and uses the rugged Varian 531 thermocouple vacuum gauge tube. The Digivac has no moving parts so is highly resistant to shock, therefore requires infrequent calibration. The Digivac gauge controller has a large bright LED display which can be easily read from across the room, or in dimly lit locations.

This gauge measures from 1 micron (1 x 10^-3torr) all the way up to 760,000 microns (760 torr) or atmosphere. The wide range of this vacuum instrument enables users to easily troubleshoot their system. This gauge can also output vacuum readings to an optional RS232 serial or ethernet connection. This output can be used to graph and plot historical data with the Digivac plotting software, and can also be used as a vacuum transmitter to a PLC or other device.

The Digivac Model 200P are designed for permanent installation in customers' equipment, and are 1/8 DIN. An opening of 1.66" x 3.625" is suggested. The unit with its rear panel terminal strip is 5" deep, which includes an allowance for the bending of wires.

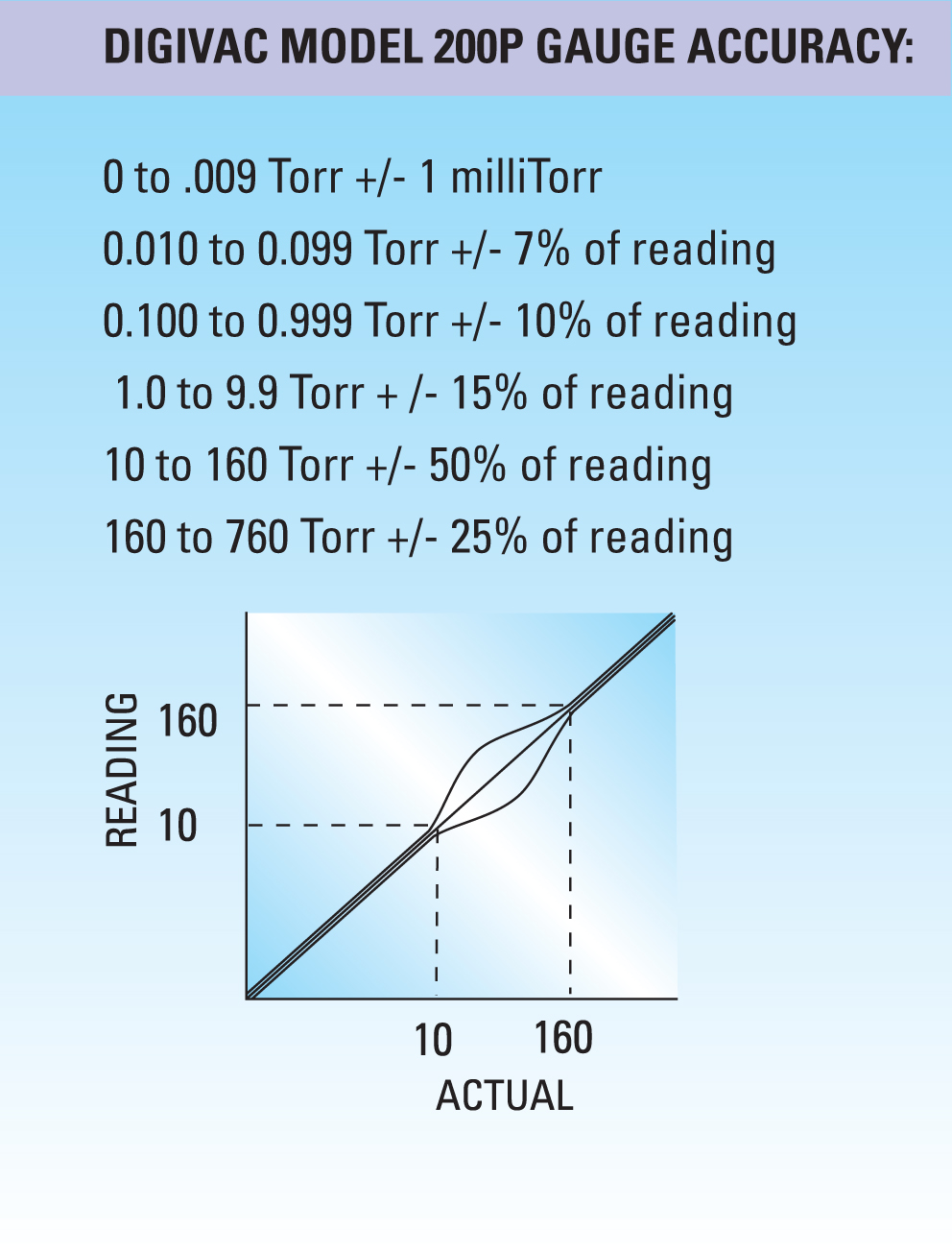

Specifications

Vacuum instrumentation with everything you need to go to work

Each DIGIVAC Vacuum Instrument comes with:

• A vacuum gauge controller.
• A thermocouple vacuum gauge tube (vacuum sensor).
• A cable to connect the vacuum gauge controller to the thermocouple vacuum gauge tube.
• An AC adapter that runs on 100-240VAC, 50/60 Hertz.
• Pre-tested under actual vacuum against a NIST standard.

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
M200P	MODEL 200P	EA	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$425.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.
