Wheaton Purge and Trap System
Hover over image to zoom


100 mL Purge and Trap System

Description

Wheaton purge and trap apparatus for use in trapping volatiles onto S.I.S. desorption tubes

The Wheaton Purge and Trap Apparatus is widely used for the isolation of pollutants in soil, sediment, waste water, and other solid and liquid samples by purging a clean gas over and thru the sample contained therein and trapping the purged volatiles on adsorbent traps. This device has been modified by S.I.S. to trap these volatiles on the S.I.S. Silco Coated Thermal Desorption Tubes. The 1000 mL version of this apparatus can purge and trap benzene in water down to 1 ppb using conventional GC or GC/MS techniques.

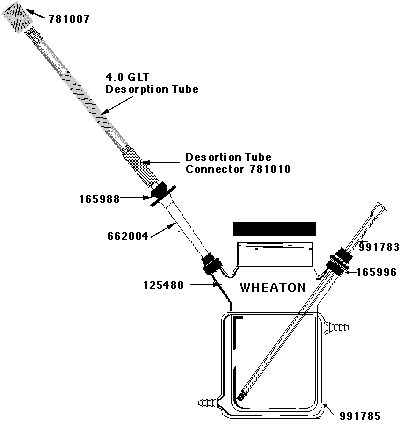

1000 mL P&T System
1000 mL Purge and Trap System

A variety of purge gas tubes can be used including a plain 1/4" diameter glass tube, 1/4" stainless steel tube, or the diffusion tube which includes a fine frit on the end of the tube to deliver the purge gas in small bubbles to better purge the volatiles from liquid samples. These tubes can be fitted to the purge gas source via Swagelok connectors with PTFE ferrules or via inert plastic tubing.

The S.I.S. Silco Coated Thermal Desorption tubes are screwed into the adaptor fitting and a seal made via the standard PTFE washers. This adaptor in turn fits into the plastic adaptor on the Wheaton glassware.

The systems include glass vessel and all fittings as shown including adaptor (781010), silco coated tube, PTFE seal and S.S. cap with hole (781007).

The Wheaton Purge and Trap System is based on a design by T. Sabatino, PhD, Cook College

Features

  • For use in isolation of pollutants in soil, sediment, and water
  • Adaptors available for trapping on S.I.S. Silco Coated SS Desorption Tubes
  • Available in 100 mL and 1000 mL capacities
  • Outer water jacket to maintain sample temperature
  • Constructed from borosilicate glass
Part No. Screw Thread Sizepkg ofOD (in)ID (in)Thickness (in)Cap SealTop SealNeedle SealAcc SealsCap Stock/
Lead Time
UOM Price Order
991785SYS Complete 1000 mL Wheaton Purge and Trap System (includes 781011 Adaptor, Silco Coated Tube, PTFE Seal and 781007)
0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$677.00
Qty
991765SYS Complete 100 mL Wheaton Purge and Trap System with fittings (includes 781010 Adaptor, Silco Coated Tube, PTFE Seal and 781007)
48 hoursLead time for this non-stock item is approximately 48 hours. EA$567.00
Qty
991785 1000 mL capacity Purge Vessel with Cap
0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$692.50
Qty
991765 100 mL capacity Purge Vessel with Cap
1EA$375.00
Qty
Accessories
165996 Wheaton Thermometer Adapter
20-4001------------------------ 2EA$45.31
Qty
781011 SS Desorption to 1/4in Tube Connector
------------------------------ 2EA$44.00
Qty
991783 Diffusion Tube. 1/4in O.D. with glass frit
------------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$54.50
Qty
165988 Adaptor, 1/4 in Tube, 13-425
------------------------------ 135EACALL
Qty
662004 S.S. Desorption cap with hole
------------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$35.79
Qty
781007 S.S. Desorption Tube Cap with 0.040in hole for conditioning Silco Coated tube
------------------------------ 161EA$9.95
Qty
781004 PTFE Washers
---100.210.120.06YesYesYesYes--- 96PK$9.75
Qty
125480 Wheaton Wheaton Connection(R)
13-425 and 20-4006---------------------White Polypropylene 9EA$92.81
Qty
