Finnigan MAT 5100 Transfer Line Repair

Finnigan MAT #50010-60006

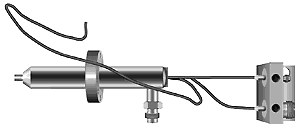

Finnigan 5100 Transfer Line Repair

Reweld of GLT to Fittings

The glass lined tubing on this transfer line where it is welded to the Swagelok fittings can develop leaks. This can be rewelded by S.I.S. We will silver solder these joints, clean the assembly and leak check the entire transfer line.

Replacement of Swagelok Fitting

SIS can replace either the1/4" or 1/16" Swagelok fitting if either is damaged. In some cases we can clean up the threads without replacing the fitting. If so, this is done for a minimal charge. However, if the fitting needs to be replaced a new Swagelok fitting is TIG welded and the entire transfer line is leak checked.

Splice of GLT Lines

The GLT lines can be spliced if either is damaged or develops a leak near the Swagelok fittings. A two inch long section will be spliced near the main body of the transfer line and the assembly leak checked.

Repair of Bellows Assembly

The bellows in this assembly quite often develops a leak. This bellows can be replaced by S.I.S. This repair includes complete disassembly, micro-TIG welding of the bellows, reassembly with new GLT, and leak checking.

Replacement of GLT Lines

If the GLT lines develop a leak inside the main body of the transfer assembly or are severely damaged they will have to be completely replaced. This is an expensive repair because the assembly must be completely disassembled, the GLT replaced and the assembly welded and leak checked.

Part No.	Description	est wt.	Quantity In Stock	Price
UOM=EA
REP38W	Reweld of GLT lines to fittings	2	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$110.25
REP383	Replacement of Swagelok fitting	2	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$110.25
REP381	Splice one 2in length of GLT	2	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$165.30
REP382	Splice two 2in lengths of GLT	2	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$220.50
REP384	Repair of bellows and GLT	2	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$1323.00
REP385	Replace both GLT Lines	2	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$826.88
