PCI Analytics HPLC Liquid Flow Meter

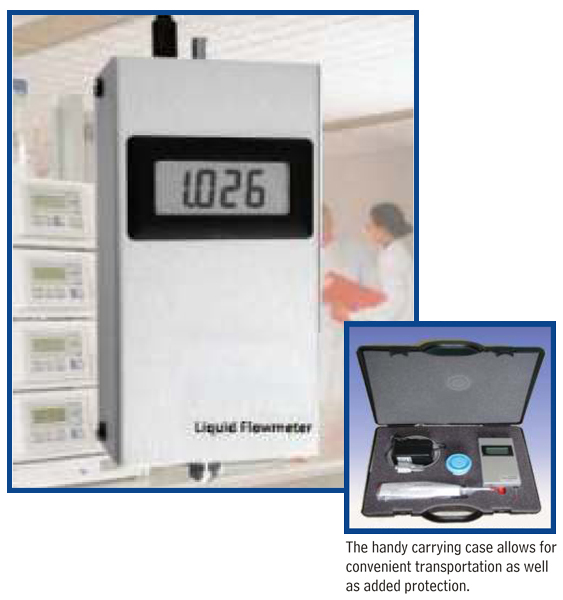

The FlowCal 5000 digital liquid flowmeter accurately and reliably determines liquid flow. It is designed primarily as a flow meter for HPLC systems used at the end of a flow system where measured liquid is collected.

The instrument measures liquid flow over a wide range, from 50µl/min. to 25ml/min. Flow rate is measured by volume and is independant fothe liquid type up to a viscosity of 10 centipoise.

The unit uses a single chip micro controller. The flow rate, rounded to four digits, is displayed on a large four digit, back-lit LCD screen and data can be conveniently output via the built-in RS232 interface to the full 6 digit reading. No user calibration is required; the unit is generally supplied gravimetrically calibrated a 1.0 ml/min. Calibration at multiple points is available. All wetted parts are mde of PTFE, PEEK, DI-EL PERFLOUR or Pyrex glass. There are no wetted metallic parts.

Three modes of operation are available:

• Printer Mode: liquid flow readings are displayed on the LCD and output to a printer if one is connected. A running average option is available in this mode.
• Terminal Mode: in this mode the liquid flowmeter is controlled by the teminal or PC. Extra commands for averaging any number of readings are included.
• Test Mode: this mode allows the user to test the display, valve, and RS232 interface and also display the calibration date.

The RS232 output allows the flowmeter to output data to any device fitted with an RS232 serial interface (e.g. printer, terminal or personal computer). The unit is supplied with an RS232 cable fitted with a nine way female plug to connect directly to the COM port of a PC. By using the Terminal or Hyper-Terminal program supplied with MS Windows, results can be collected and displayed or pasted into Excel or other programs to produce graphs or statistical analysis.

FlowCal 5000 Specifications

• Reading Update Time
  • 15 sec @ 2 ml/min
  • 25 sec @ 1 ml/min
  • 45 sec @ 0.5 ml/min
• Measuring Volume - 140%micro;l
• Priming Volume - 250µl
• LCD Display - (12.7 mm) - 4 digits and 3 status symbols
• RS232 Output - (6 digits) - XX.XXXX ml/min
• Size - 138mm x 76mm x 45mm
• Weight - 320g, 12oz

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
MODEL1	HPLC LIQUID FLOW METER CALIBRATED AT 1.0ML/MIN.,DIGITAL. SUPPLIED WITH CALIBRATION CERTS. RS232 INTERFACE, CLEANING AND MOUNTING KITS, CARRY CASE, MANUAL, RS232 CABLE AND POWER SUPPLY UNIT.	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$4116.00
MODEL2	HPLC LIQUID FLOW METER CALIBRATED AT 0.50; 1.0; 2.0 ML/MIN.,DIGITAL. SUPPLIED WITH CALIBRATION CERTS. RS232 INTERFACE, CLEANING AND MOUNTING KITS, CARRY CASE, MANUAL, RS232 CABLE AND POWER SUPPLY UNIT.	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$4680.00
THERMALP	THERMAL PRINTER FOR LIQUID FLOW METER. RS232 INTERFACE. SUPPLIED WITH RECHARGEABLE BATTERY 10 ROLLS OF PAPER.	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	CALL
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.
