Optimize Technologies

Velocity Analytical Column System

(Columns)

Analytical columns are getting shorter, separations are getting faster and increased throughput is an operational mandate. New techniques in parallel synthesis and analysis are placing heavy demands on LC instrumentation. And no matter what the application, speed is an indispensable part of remaining competitive in the HPLC arena.

Optimize is pleased to introduce Velocity an analytical column system designed specifically to meet the challenges of high-throughput analysis. Velocity represents a revolutionary step forward in column design. In form and function, it is like no other analytical column product on the market today.

Other fast HPLC columns are merely shorter versions of the same clunky old hardware. But Velocity is an entirely new column design, based on our patent-pending OPTI-LYNX quick-connect technology. Once connected, the Velocity system allows you to change analytical columns with an easy quarter-twist. You can also change guard column cartridges and prefilters just as easily.When it’s time to change columns, grab the ends of the Velocity column holder, open it with a quarter-twist, pop out the old cartridge and insert a new one. Need to change column lengths? Simply trade your holder tube for one of a different length, all without even touching your tubing!

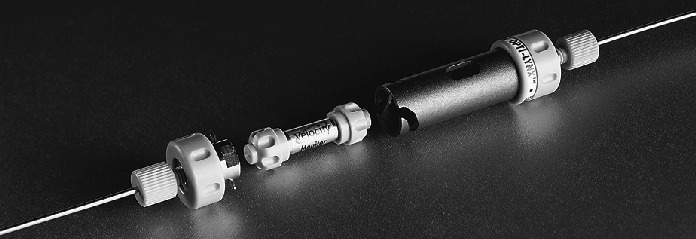

velocity hplc columns

Some Advantages of the Velocity ™ System:

Velocity Column Holders disconnect in a quarter- twist, yet seal up to 6,000 psi
Low-dispersion column-holder interface minimizes extra-column volume
High-performance hardware and high-quality packings for your fast separations
Perfect for high throughput and LC/MS applications.

VELOCITY Packing Materials

We offer as standard three different varieties of C18 packing material. We can also custom-pack Velocity columns with the material of your choice. Please contact Optimize for more information on this option.

MONITOR ™ C18

Manufactured by Column Engineering, Inc., using state-of-the-art technology: for reversed phase separations with minimal secondary interactions. Monitor is an excellent alternative for most C18 applications requiring base-deactivated columns, especially for difficult pharmaceutical and peptide applications.

Improved Peak Shape For Basic and Acidic Compounds
Very Reproducible Results
Low Back Pressure For Longer Column Life

KROMASIL ™ C18

This material is very popular for bath pharmaceutical and bioscience industries, especially for preparative and pilot applications.

Excellent Mechanical/Chemical Stability
Symmetrical peaks for basic compounds
Low Back Pressure
Cost-Effective For Scale-Up.

RELIASIL ™ C18

Manufactured by Column Engineering, Inc., Reliasil is an oligomerically derivatized silica gel. It is preferred by many chromatographers for its chemical stability and effectiveness in the reversed phase separations of peptides, pharmaceuticals, and derivatized amino acids.

Reproducibility
Excellent Mechanical/Chemical Stability
Superior Efficiency

Velocity Columns

All the information you need to order Velocity column cartridges is included in the table below. Follow these instructions to build the correct part number for the columns you require.

1) The Part Number column on the left side of the table lists part numbers that correspond to unique column length and ID dimensions, in millimeters. Start by choosing the correct 7 digit number for the dimension you need (e.g. 12-02401-** for a 2.1 x 15mm column.)
2) Each Velocity part number requires a two letter PACKING CODE to designate the packing material required — this CODE will replace “**“ in the part number found above. Packing materials are listed at the top of the table, and are aligned vertically with the corresponding Packing Codes, shown just above the packing size..
3) Prices are listed on the right side of the table, in “matrix” format. To find the correct price for the column of your choice, find the pricing cell that aligns horizontally with packing type and vertically with column dimension — that’s your list price.

Part No.	Description	ID (mm)	Length (mm)	ship wt.	Quantity In Stock	Price
Optimize Velocity HPLC Column, UOM=EA
1202401MA	3um Monitor C18 Packing	2.1	15	1	0^(#)	$333.00^(*B)
1202401MB	5um Monitor C18 Packing	2.1	15	1	0^(#)	$333.00^(*B)
1202401KA	3um Kromasil C18 Packing	2.1	15	1	0^(#)	$269.00^(*B)
1202401KB	5um Kromasil C18 Packing	2.1	15	1	0^(#)	$269.00^(*B)
1202401RA	3um Reliasil C18 Packing	2.1	15	1	0^(#)	$258.00^(*B)
1202401RB	5um Reliasil C18 Packing	2.1	15	1	0^(#)	$258.00^(*B)
1202402MA	3um Monitor C18 Packing	2.1	30	1	0^(#)	$275.00^(*B)
1202402MB	5um Monitor C18 Packing	2.1	30	1	0^(#)	$275.00^(*B)
1202402KA	3um Kromasil C18 Packing	2.1	30	1	0^(#)	$230.00^(*B)
1202402KB	5um Kromasil C18 Packing	2.1	30	1	0^(#)	$230.00^(*B)
1202402RA	3um Reliasil C18 Packing	2.1	30	1	0^(#)	$218.00^(*B)
1202402RB	5um Reliasil C18 Packing	2.1	30	1	0^(#)	$218.00^(*B)
1202403MA	3um Monitor C18 Packing	2.1	50	1	0^(#)	$333.00^(*B)
1202403MB	5um Monitor C18 Packing	2.1	50	1	0^(#)	$333.00^(*B)
1202403KA	3um Kromasil C18 Packing	2.1	50	1	0^(#)	$272.00^(*B)
1202403KB	5um Kromasil C18 Packing	2.1	50	1	0^(#)	$272.00^(*B)
1202403RA	3um Reliasil C18 Packing	2.1	50	1	0^(#)	$258.00^(*B)
1202403RB	5um Reliasil C18 Packing	2.1	50	1	0^(#)	$258.00^(*B)
1202411MA	3um Monitor C18 Packing	3	15	1	0^(#)	$333.00^(*B)
1202411MB	5um Monitor C18 Packing	3	15	1	0^(#)	$333.00^(*B)
1202411KA	3um Kromasil C18 Packing	3	15	1	0^(#)	$269.00^(*B)
1202411KB	5um Kromasil C18 Packing	3	15	1	0^(#)	$269.00^(*B)
1202411RA	3um Reliasil C18 Packing	3	15	1	0^(#)	$258.00^(*B)
1202411RB	5um Reliasil C18 Packing	3	15	1	0^(#)	$258.00^(*B)
1202412MA	3um Monitor C18 Packing	3	30	1	0^(#)	$275.00^(*B)
1202412MB	5um Monitor C18 Packing	3	30	1	0^(#)	$275.00^(*B)
1202412KA	3um Kromasil C18 Packing	3	30	1	0^(#)	$230.00^(*B)
1202412KB	5um Kromasil C18 Packing	3	30	1	0^(#)	$230.00^(*B)
1202412RA	3um Reliasil C18 Packing	3	30	1	0^(#)	$218.00^(*B)
1202412RB	5um Reliasil C18 Packing	3	30	1	0^(#)	$218.00^(*B)
1202413MA	3um Monitor C18 Packing	3	50	1	0^(#)	$333.00^(*B)
1202413MB	5um Monitor C18 Packing	3	50	1	0^(#)	$333.00^(*B)
1202413KA	3um Kromasil C18 Packing	3	50	1	0^(#)	$269.00^(*B)
1202413KB	5um Kromasil C18 Packing	3	50	1	0^(#)	$269.00^(*B)
1202413RA	3um Reliasil C18 Packing	3	50	1	0^(#)	$258.00^(*B)
1202413RB	5um Reliasil C18 Packing	3	50	1	0^(#)	$258.00^(*B)
1202421MA	3um Monitor C18 Packing	4.6	15	1	0^(#)	$333.00^(*B)
1202421MB	5um Monitor C18 Packing	4.6	15	1	0^(#)	$333.00^(*B)
1202421KA	3um Kromasil C18 Packing	4.6	15	1	0^(#)	$269.00^(*B)
1202421KB	5um Kromasil C18 Packing	4.6	15	1	0^(#)	$269.00^(*B)
1202421RA	3um Reliasil C18 Packing	4.6	15	1	0^(#)	$258.00^(*B)
1202421RB	5um Reliasil C18 Packing	4.6	15	1	0^(#)	$258.00^(*B)
1202422MA	3um Monitor C18 Packing	4.6	30	1	0^(#)	$275.00^(*B)
1202422MB	5um Monitor C18 Packing	4.6	30	1	0^(#)	$275.00^(*B)
1202422KA	3um Kromasil C18 Packing	4.6	30	1	0^(#)	$258.00^(*B)
1202422KB	5um Kromasil C18 Packing	4.6	30	1	0^(#)	$258.00^(*B)
1202422RA	3um Reliasil C18 Packing	4.6	30	1	0^(#)	$218.00^(*B)
1202422RB	5um Reliasil C18 Packing	4.6	30	1	0^(#)	$218.00^(*B)
1202423MA	3um Monitor C18 Packing	4.6	50	1	0^(#)	$333.00^(*B)
1202423MB	5um Monitor C18 Packing	4.6	50	1	0^(#)	$333.00^(*B)
1202423KA	3um Kromasil C18 Packing	4.6	50	1	0^(#)	$269.00^(*B)
1202423KB	5um Kromasil C18 Packing	4.6	50	1	0^(#)	$269.00^(*B)
1202423RA	3um Reliasil C18 Packing	4.6	50	1	0^(#)	$258.00^(*B)
1202423RB	5um Reliasil C18 Packing	4.6	50	1	0^(#)	$258.00^(*B)
(*_) Marked parts have bulk quantity discount pricing: Discount code 'B' -- 3 or more: 5% off; 10 or more: 7% off.
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

Quantity Discount Information

Order in quantity, and save! We are offering quantity discounts when you purchase three or more Velocity cartridges of the same length, ID and packing material on a single order. Save up to 15% off the list price!

Order three of the same columns on the same order, for a 5% discount. Order five, and get 10%. Or get ten or more columns at once for a 15% savings.
