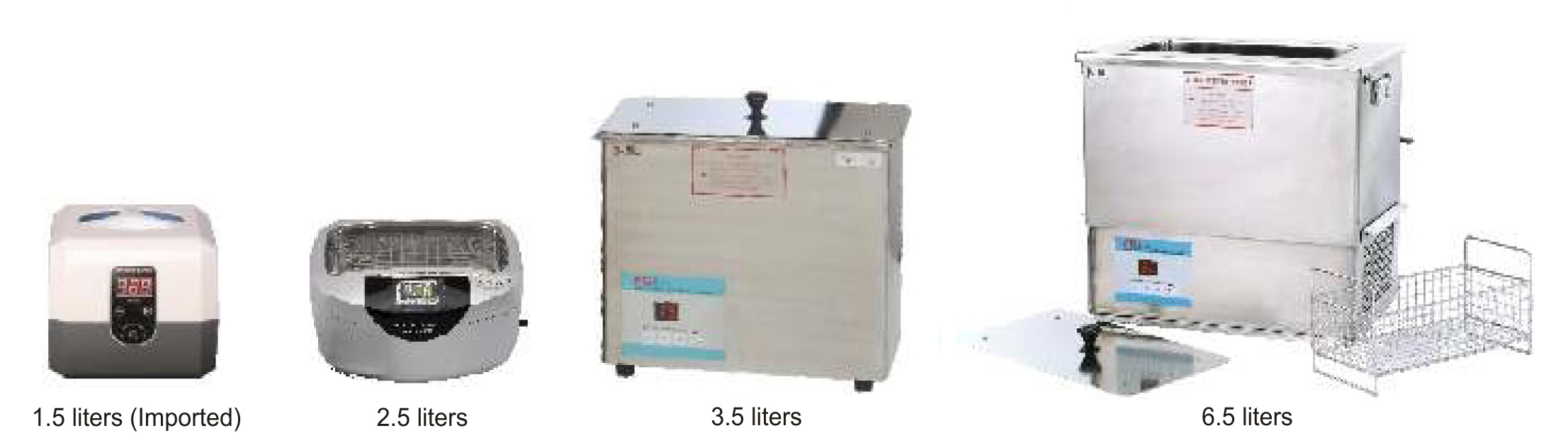

PCI Analytics Ultrasonic Bath Sonicators

Principle Behind Ultrasonic Cleaners

High frequency electrical energy is converted into ultrasound waves by means of ultrasonic transducers, which are bonded to the base of a Stainless Steel Water Tank. These high frequency sound waves create in the liquid countless, microscopic vacuum bubbles, which rapidly expand and collapse. This phenomenon is called cavitation. These bubbles act like miniature high speed brushes, driving the liquid into all the openings and minute recesses of the object immersed in the liquid. Intense scrubbing by the process of cavitation cleans away all the dirt and soil from the object immersed and the object comes out perfectly cleaned. Intricate objects can be cleaned with either complete or little dismantling.

Features

• Easy to operate. Made of one piece stainless steel tank
• Manufactured with advanced MOSFET technology with auto-tuning capabilities.
• Digital tuning of transducers with generators to avoid any frequency shift even during demanding applications
• Compact, rugged and highly durable systems
• Extensively protected electronic circuits means longer and safer operations

Applications

• Laboratory:for glassware, filter cleaning & HPLC mobile phase, degassing
• Industrial:semi-conductors, electronic components, precious parts & mechanisms
• Medical:dental & surgical instruments
• Optical:glasses, glasses frames, lenses
• Jewelry:for all kinds of jewelry, precious stones, etc.
• Removes:dust, oils, grease, polishing compounds, waxes, stains, soils, and any other contaminant

Specifications

• Operating frequency of 33 +/- 3 KHz, for all general purpose cleaning is highly recommended. An operating frequency of 50 KHz is also available
• Input voltage range of 170 V AC - 270 V AC, 50 Hz, 1 Ph.
• Micro controller based timer range 0 to 15 minutes. 30 and 99 minute timers are also available.
• Thermostatic heating
• Digital temperature controller (optional) if required

*Higher capacity ultrasonics other than mentioned as per customer requirements

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
PCI80	SONICATOR 1.5 LITER	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$495.00
PCI81	SONICATOR 3.5 LITER	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$765.00
PCI83	SONICATOR 6.5 LITER	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$995.00
PCI84	SONICATOR 9.0 LITER	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$1295.00
PCI85	1.5 LITER PLSTIC/FIBRE PLASTIC FIBRE BODY TANK SIZE 183L X 148B X 80H	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$384.00
PCI86	2.5 LITER PLASTIC/FIBRE PLASTIC/FIBRE BODY 290L X 157B X 87H	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$420.00
PCI88	SONICATOR 20 LITER SS BODY & SS TANK DIGITAL TIMER OPERATING FREQUENCY 33 +/-3 KHz MICRO CONTROLLER BASED TIMER COMPACT; RUGGED AND HIGHLY DURABLE SYSTEMS. TANK SIZE: 400L x 350B x 150H (mm).	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$1320.00
PCI89	SONICATOR 25 LITER UNIT SS BODY & SS TANK DIGITAL TIMER OPERATING FREQUENCY 33 +/-3 KHz MICRO CONTOLLER BASED TIMER COMPACT; RUGGED AND HIGHTLY DURABLE SYSTEM. TANK SIZE: 400L x 350B x 150H (mm).	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$1995.00
PCI90	SONICATOR-30 LITER UNIT SS BODY & SS TANK DIGITAL TIMER OPERATING FREQUENCY 33 +/- KHz MICRO CONTROLLER BASED TIMER. COMPACT RUGGED AND HIGHLY DURABLE SYSTEM. TANK SIZE: 350L x 350B x 250H (mm).	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$2500.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

PCI Probe Sonicator

The Probe Sonicator is a tool specifically designed for Pharmaceutical and Chemical Labs as well a Research Institutes, Colleges, and Universities. It consists of:

• An ultrasonic generator to produce high frequency electrical energy, operating at a frequency of 20Khz and 120 watts if power.
• A stainless steel velocity horn fitted with a PZT transformer. This velocity horn converts the electrical frequency energy fed from the ultrasonic generator to mechanical vibrations at the rate of applied electrical frequency. The amplitude of these mechanical vibrations are magnified by the velocity horn.

Specifications

• Ultrasonic Power:120 Watts (Average)
• Ultrasonic Frequency:20 KHz
• Timer Operation:Micro processor based programmable timer with a two digit display for selecting on/off time and total time fo processing cyclic mode.
• Probe Tips:detachable type made of 304 grade stainless steel in 6mm, 10mm, and 20mm diameter sizes.
• Maximum on time:15 seconds
• Ultrasonic Horn:Made of 304 grade stainless steel and is fitted with a PZT transformer.

Applications

• Tissue Processing (Plant & Animal Tissues)
• Emulsification of Immiscible Liquids
• De-gassing and De-aerating of Liquids
• Formulations
• Particle Dispersion

In small batches of about 500ml

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
PCI87	PROBE SONICATOR 120WATTS ULTRASONIC POWER 120 WATTS UNTRASONIC FREQUENCY 20Khz PROCESSOR CONTROLLER WTIH TIME OPERATION MICRO PROCESSOR BASE PROGRAMMABLE TIMER TWO DIGIT DISPLAY. DISPLAY IS PROVIDED FOR SELECTING ON/OFF TIME AND TOTAL TIME OF PROCESSING CYCLE MODE	EA	0	0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.	$2808.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.
