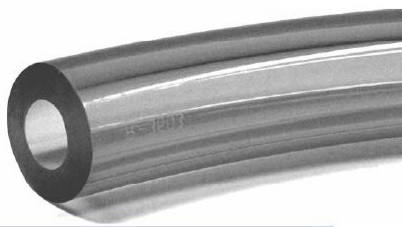

Heavy Wall Tygon Vacuum Tubing

  • Temperature Range - 58 °F to -165 °F
  • For Vacuum levels to 10-3 torr
  • Flexible
  • Transparent

Tygon tubing is a good choice for vacuum levels down to 10-3 torr where space is limited. This tubing is very flexible for use in tight areas. It is used standard on the rough pump line on the probe inlet for the HP5989 mass spectrometer. Maximum continuous length is 50 ft.


Accessory Supplies
Other Vacuum Hose

Heavy Wall Tygon Vacuum Tubing, UOM=Foot
Part No. Description ID (in)OD (in) est
wt.
Quantity
In Stock
Price Quantity
to order
316TT (price per foot)3/169/16 0.5 0(#)$9.90(*N)
1
14TT  1/45/8 0.5 47$11.50(*N)
1
12TT  1/21 1/8 0.5 1$23.25(*N)
1
58TT  5/81 3/8 0.5 20$28.80(*N)
1
34TT  3/41 1/2 0.5 0(#)$30.50(*N)
1
(*_) Marked parts have bulk quantity discount pricing:
Discount code 'N' -- 10 or more: 10% off; 100 or more: 27% off.
(#) Standard lead-time for out-of-stock items is approximately two weeks.
shopping cart Ordering information. International (non-US) prices available through your local dealer.
Express quanitity in FEET
SIS Catalog Cross Reference
Page #Part Numbers
C36 - Thermal Desorption Low Flow Air Sampling Pump 316TT
F38 - Vacuum Hose 12TT, 14TT, 316TT, 34TT, 58TT
