Diffusion Pump Heaters

Home

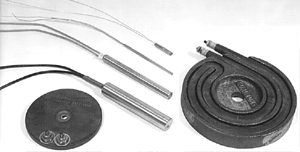

Open Disc, Cartridge and Solid Plate Styles of Diff. Pump Heater
Hover over image to zoom

Description

Cartride and Solid Plate Sytles Diffusion Pump Heaters

Open Disc Style              Cartridge and Solid Plate Styles

The following sizes of heater cartridges are in stock. Additional sizes and types can be supplied on request.


Diffusion Pump Heater for use on
Part No. Description Price
EA
Order
HDP1 Varian/NRC HS-2,(Finnigan #00108-00501) 240V, 450 Watt Cartridge, 5/8in dia. x 3 1/2in long $62.00
Qty
HDP1A Varian HS-2, 120V, 450 Watt Cartridge, 5/8in dia. x 3 1/2in long $67.50
Qty
HDP2 Varian/NRC H4X, VHS4, (Finnigan #00108-04501) 240V, 1450 Watt, Solid Plate, 4 3/4in dia. $156.00
Qty
HDP2A Varian VHS4, 120V,1450W S.Plate,4 3/4in dia. $189.50
Qty
HDP2B Varian VHS4, 208V,1450W S.Plate,4 3/4in dia. $140.40
Qty
HDP3 Varian/NRC M4, NHS4, (Finnigan #00108-04601) 240V,1190W S.Plate, 4 3/4in dia. $156.00
Qty
HDP3A Varian M4, 120V,1190W S.Plate, 4 3/4in dia. $140.40
Qty
HDP3B Varian M4, 208V,1000W S.Plate, 4 3/4in dia. $165.00
Qty
HDP3C Varian HS4, M4, 240V,1450 Open Disc,4 3/4in dia. $165.00
Qty
HDP4 Varian/NRC M2, (Finnigan #00108-05501) 240V,450W S.Plate, 4 3/4in dia. $185.00
Qty
HDP4A Varian M2, 120V, 450W S.Plate, 3 1/4in dia. $130.00
Qty
HDP5 CVC/PMC 2, 4 and 6, 115V, 300 Watt Cartridge, 3/8in dia. x 4in long $74.00
Qty
HDP7 Varian VHS6, 240V,2200W S.Plate, 5 3/4in dia. $162.00
Qty
HDP7A Varian VHS6, 120V,2200W S.Plate, 5 3/4in dia. $218.00
Qty
HDP7B Varian VHS6, 208V,2200W S.Plate, 5 3/4in dia. $162.00
Qty
