Advanced Oil-less Rocking Piston Pumps

Features:

Oil-less operation & permanently lubricated bearings
Provided with high performance silencer
Stainless steel valves and AL Die Casting body
Completely oil-free & lightweight
Low noise & vibration, leak tight
Distinguished long life & easy to maintain
PTFE Coated Model available as Standard

Applications:

Medical, Dental & E.N.T. Equipments
Oxygen Concentrator & Ozone generator
Semi Conductor processing, Chip mounter
Packing machine, Food processing
Environmental equipments
Air Plasma / Laser Cutting Machine
Industrial equipments

Selection Guide an Dimensions

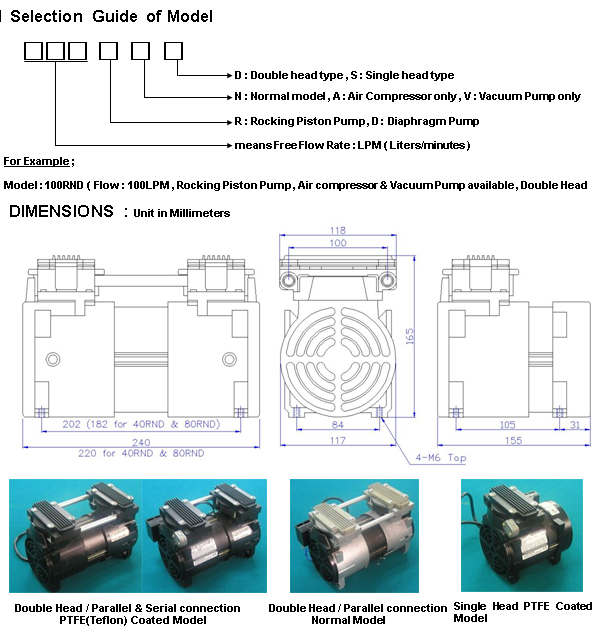

Selection Guide and Dimensions

Double Head Type - Specifications:

Description \ Model	DOUBLE HEAD
Description \ Model	140RND	120RND	100RND	80RND	70RVD	60RVD	50RVD	40RVD
HEAD CONNECTING	Parallel Connecting ( 1-STAGE )				Serial Connecting ( 2-STAGE )
HEAD CONFIGRATION	Vacuum / Pressure				Vacuum Only
FREE FLOW RATE	140 LPM	120 LPM	100 LPM	80 LPM	70 LPM	60 LPM	50 LPM	40 LPM
MAX. VACCUM	700mmHg	690mmHg	680mmHg	650mmHg	750mmHg	745mmHg	740mmHg	720mmHg
MAX.PRESSURE	2 bar	4 bar	7 bar	7 bar	N.A.
CONNECTING TYPE	Rc 1 / 4” ( PT 1/4” )
DIMENSIONS	240(L) x 157(H) x 118(W) mm [ 80RND, 40RVD : 220(L) x 157(H) x 118(W) mm ]
WEIGHT	7.1 kg [ 80RND, 40RVD : 6.2 kg ]
NOISE LEVEL	55 ~ 58 dB				51 ~ 53 dB
MOTOR TYPE	Capacitor Start Type, Equipped with Thermal Protector & Inner Cooling Fan
MOTOR POWER	200 W [80RND, 40RVD : 150W ]
POWER SOURCE	100 ~ 110 VAC (50/60 Hz), 200 ~ 220 VAC (50/60 Hz), 230 ~ 240 VAC (50 Hz)

Double Head Type - Performance Curves:

Single Head Type - Specifications:

Description \ Model	SINGLE HEAD
Description \ Model	70RVS	60RNS	50RNS	40RNS
HEAD CONFIGRATION	Vacuum Only	Vacuum / Pressure
FREE FLOW RATE	70 LPM	60 LPM	50 LPM	40 LPM
MAX. VACCUM	700mmHg	690mmHg	680mmHg	650mmHg
MAX.PRESSURE	N.A.	2 bar	4 bar	7 bar
CONNECTING TYPE	Rc 1 / 4” ( PT1/4” )
DIMENSIONS	155(L) x 157(H) x 118(W) mm / 165(L) x 157(H) x 118(W)
WEIGHT	4.2 kg / 4.8 kg
NOISE LEVEL	50 ~ 53 dB
MOTOR TYPE	Capacitor Start Type, Equipped with Thermal Protector & Inner Cooling Fan
MOTOR POWER	100 W ~ 150 W
POWER SOURCE	100 ~ 110 VAC (50/60 Hz), 200 ~ 220 VAC (50/60 Hz), 230 ~ 240 VAC (50 Hz)

Single Head Type - Performance Curves:

Accessories and Core Parts:

AL Die casting body muffler with filters. Provided as a standard accessory.

Other material & performance mufflers. Provided on request.

Stainless steel valve

Piston Ring (PTFE)

Permanently lubricated bearings. 6203ZZ for motor shaft. 6006ZZ for eccentric.

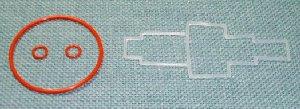

100% of silicon O-rings. We never use gasket made by paper or asbestos.

Ordering

Part No.	Description	est wt.	Quantity In Stock	Price
UOM=EA
double head
140RND115	1 STAGE DOUBLE HEAD 115V 140LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
140RND220	1 STAGE DOUBLE HEAD 220V 140LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
120RND115	1 STAGE DOUBLE HEAD 115V 120LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
120RND220	1 STAGE DOUBLE HEAD 220V 120LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
100RND115	1 STAGE DOUBLE HEAD 115V 100LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
100RND220	1 STAGE DOUBLE HEAD 220V 100LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
80RND115	1 STAGE DOUBLE HEAD 115V 80LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
80RND220	1 STAGE DOUBLE HEAD 220V 80LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
70RVD115	2 STAGE DOUBLE HEAD 115V 70LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
70RVD220	2 STAGE DOUBLE HEAD 220V 70LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
60RVD115	2 STAGE DOUBLE HEAD 115V 60LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
60RVD220	2 STAGE DOUBLE HEAD 220V 60LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
50RVD115	2 STAGE DOUBLE HEAD 115V 50LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
50RVD220	2 STAGE DOUBLE HEAD 220V 50LPM	0	3	$525.00
40RVD115	2 STAGE DOUBLE HEAD 115V 40LPM	0	6	$525.00
40RVD220	2 STAGE DOUBLE HEAD 220V 40LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
single head
70RVS115	SINGLE HEAD 115V 70LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
70RVS220	SINGLE HEAD 220V 70LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
60RNS115	SINGLE HEAD 115V 60LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
60RNS220	SINGLE HEAD 220V 60LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
50RNS115	SINGLE HEAD 115V 50LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
50RNS220	SINGLE HEAD 220V 50LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
40RNS115	SINGLE HEAD 115V 40LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
40RNS220	SINGLE HEAD 220V 40LPM	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$525.00
upgrade
RVDUPGRADE	RVD/RVS & RNS cord upgrade, 4 stabilizing feet & 1 pump noise muffler	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$150.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.
