Edwards Turbo Pump nEXT240D
Hover over image to zoom
Price: 0
Product ID : B81200101
B81200101 EDWARDS NEXT240D TURBO ISO 100 FLANGE INCLUDES CONTROLLER

Description

The nEXT is a hybrid bearing compound turbomolecular pump. nEXT pumps combine our proven bearing technology (oil lubricated ceramic lower bearing with dry permanent magnetic upper bearing), an improved rotor design with a new molecular drag stage to deliver improved pumping speed and compression ratios, and user serviceability. They feature 24 V to 48 V d.c. sensor less motors with a built in drive that is fully compatible with our range of TAG and TIC controllers. They are available pre-set for either 80 W or 160 W maximum power, the former enabling use with our 100 W TIC controllers are also recommended for pumping Argon, but with a longer ramp time to full operating speed.

Features

  • Value for money - exceptional pumping speeds and compression ratios
  • No unplanned downtime - field proven reliability in the most demanding environments
  • Easy integration - standard fit in many scientific instruments
  • Reliability for peace of mind - over 200,000 turbomolecular pumps installed
  • Low cost of ownership - end user serviceable

Specs

Technical Data
Inlet flange DN100ISO-K, DN100CF
Outlet flange DN25NW
Vent/purge port 1/8 inch BSP female
Pumping Speed
N2
He
H2

240 ls-1
230 ls-1
165 ls-1
Compression ratio:
N2
He
H2

>1 × 1011
3 x 105
1 x 104
Recommended backing pump* RV12/nXDS10i
Max continuous inlet flow (Nitrogen)†
  • water cooling (water at 15 °C, ambient temp at 40 °C)
  • forced air cooled, 35 °C ambient
  • 45 sccm
  • 30 sccm
Pump rotational speed
Nominal rotational speed 60000 rpm
Standby rotational speed Variable from 33000 to 60000 rpm
(42000 rpm default)
Programmable power limit settings Variable from 50-200W (160W default)
Analogue outputs Rotational speed; Power consumption; Pump temp; Controller temp
Start time to 90% speed 115 s ‡
Ultimate Pressure (ISO/CF)
RV backing pump

<6 x 10-8 / <5 x 10-10 mbar
Cooling method# Forced air / water
Ambient air temperature for forced air cooling 5 - 35 °C
Min cooling water flow rate (water 15 °C) 15 l h-1
Water temp range 10 - 20 °C
Max inlet flange temp 75 °C
Operating attitude Vertical and upright, through to Horizontal +/-2 °
Noise level at 1 metre <45 dB(A)
Max magnetic field pump can tolerate 5 mT
Recommended controller TIC200 turbo and instrument controller
Quiescent electrical power Typically 20 W

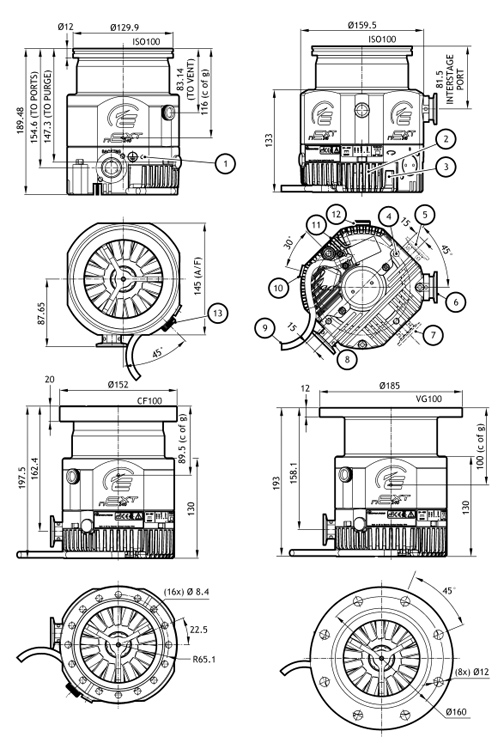

Dimensions
