Purge & Trap Glass Tubes

Purge and Trap Glassware

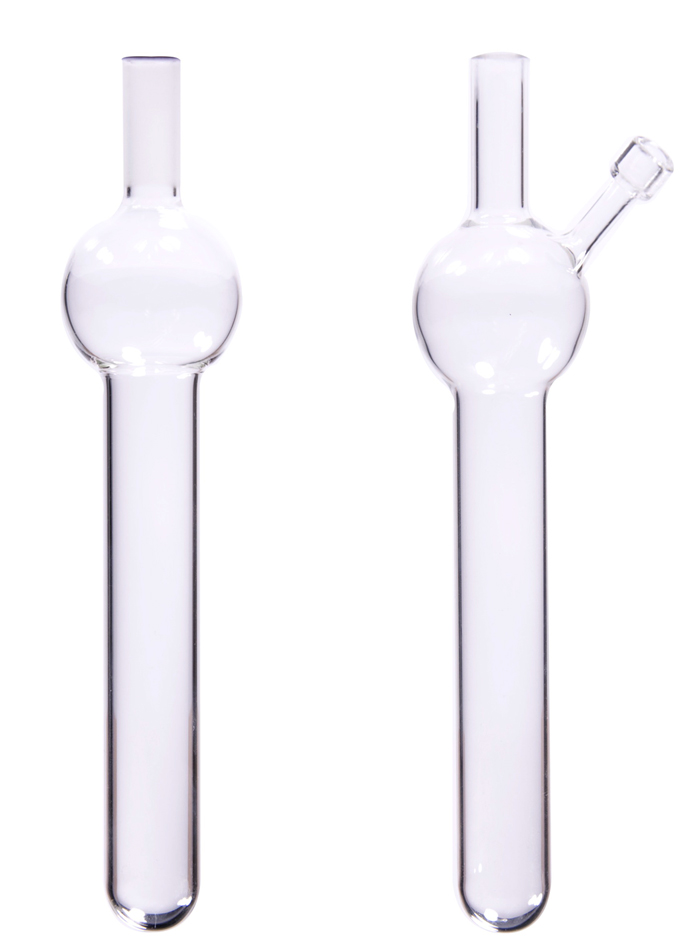

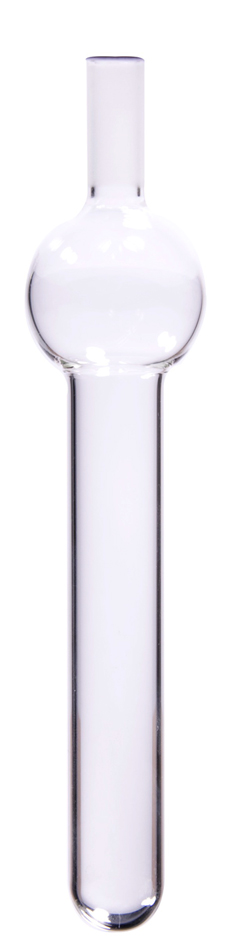

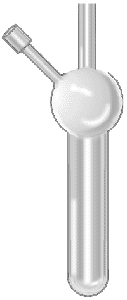

Purge Tube Purge Tube with Side Arm

The Purge & Trap Glass Sample Tubes are utilized with the S.I.S. Purge & Trap System and other manufacturers systems utilized for the analysis of liquid and solid samples. All tubes are constructed from borosilicate glass with 0.5" O.D. tube ends for mating with standard 1/2" fittings. The tubes incorporate a foam breaker usable for the purging of foaming samples.

Two sizes of tubes are available. The 5.0 ml glass tubes are 5.75 inches long with a 1.0 inch diameter foam breaker. The 25.0 ml glass tubes are 7.60 inches long with a 1.6 inch diameter foam breaker. The top connection on all tubes is 0.50 inch outside diameter.

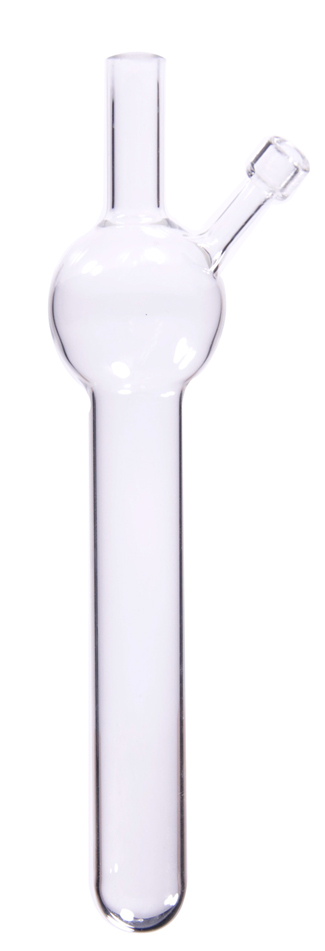

In addition, two styles of each tube size are available. The standard tubes are straight with no side arms and are used for most applications. The side arm style includes a standard glass septum holder side arm mounted on the foam breaker bulb. This septum side arm is routinely utilized for the injection of samples or internal standards into the sample tube during purging in order to assure complete entry of the sample to the sparge vessel with no loss to the atmosphere.

Part No.	Description	UOM	est wt.	Quantity In Stock	Price
805001	5 mL glass sample tube with foam breaker	EA	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$40.00^{[A][A] 10 or more: 5% off; 50 or more: 10% off.}
805003	25 mL glass sample tube with foam breaker	EA	0.412	12	$30.00^{[A][A] 10 or more: 5% off; 50 or more: 10% off.}
805002	5 mL glass Sample Tube with septa side arm	EA	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$41.50^{[A][A] 10 or more: 5% off; 50 or more: 10% off.}
805004	25 mL glass Sample Tube with septa side arm	EA	0.25	5	$41.50^{[A][A] 10 or more: 5% off; 50 or more: 10% off.}
774200	Septa for side arm tubes, pkg of 10	PK	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$43.00^{[A][A] 10 or more: 5% off; 50 or more: 10% off.}
Bulk quantity discounts on marked items: [*A] 10 or more: 5% off; 50 or more: 10% off.
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

Indicate # of packages.

Purge and Trap System Accessories

Plastic Safety Shields for Sample Purging System

Features

Two sizes available for 5 ml and 25 ml Purge Sampling Tubes
Two styles available for standard and side arm sample tubes
Constructed of tough clear acrylic plastic for visibility and safety
Outside Diameter of 2.0" fits in groove in liquid purging system base

The Plastic Safety Shields have been constructed for the S.I.S. Purge & Trap System. The Shields are designed to slide into the groove milled into the Purge & Trap System Base. Two heights of the safety shields are available. The 5.5" high shields are for use with the 5.0 ml sampling tube or other sample tubes of similar size. The 7.5" high safety shields are for use with the 25 ml sampling tubes. In addition to the standard straight safety shields, two additional models are available with slots in the top part of the back side for use with sampling tubes with septa side arm ports. Other sizes and styles can be custom manufactured by S.I.S. on request. Please call or write with your requirements.

Part No.	Description	est wt.	Quantity In Stock	Price
Safety Shield, UOM=EA
783012	5.5in high, for 5.0 mL tube	0.25	4	$40.00
783013	5.5in high, for 5.0 mL side arm tube	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$54.00
783014	7.5in high, for 25 mL tube	0.25	3	$47.00
783015	7.5in high, for 25 mL side arm tube	0.25	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$62.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

SIS Catalog Cross Reference
Page #	Part Numbers
C29 - Purge and Trap System Accessories	774200, 783012, 783013, 783014, 783015, 805001, 805002, 805003, 805004
