Purge and Trap System Stainless Steel Purge Heads

Purge and Trap Stainless Steel Purge Heads
Hover over image to zoom

Standard Purge Head

Tube Style Purge Head

Tube Style Purge Head

Description

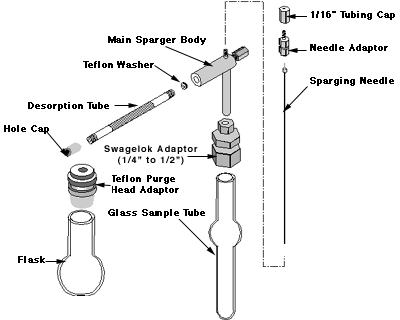

The Stainless Steel Purging Heads are designed for use with the S.I.S. Purge and Trap System (described on the previous page) and the S.I.S. thermal desorption tubes. In addition, optional fittings are available to adapt the purging heads for use with other manufacturers desorption or sampling tubes. Two styles of the Stainless Steel Purging Heads are available. The top fitting of both purge heads consists of a 1/16" fitting for the attachment of the sparging needle followed by needle adaptor to seal the needle in place and provide for the attachment of the purging gas line. The side gas line is for the use of a dry purge gas to aid in removing water from the desorption tube adsorbents or samples. When not required, this fitting is capped with the 1/16" plug cap provided. The desorption tubes are screwed into the end of the Stainless Steel Purging Head and leak tight seals are made with the standard 1/4" PTFE washers.

The Standard Purging Head is the system that is supplied with the Complete Purge and Trap System described previously. The bottom fitting consists of a 1/2" Swagelok fitting with PTFE ferrules for the attachment of standard 1/2" diameter sample tubes. An optional 12 mm Swagelok nut and 12 mm PTFE ferrule can be used with this fitting to adapt it for use with standard 12 mm sample tubes such as the disposable 12 mm tubes readily available from many suppliers.

The Tube Style Purging Head contains of a 1/4" outside diameter tube instead of the 1/2" fitting described above. This permits the use of other sampling tubes which the user can easily adapt to this fitting via standard 1/4" GC fittings, such as the 1/4" to 1/2" union included with this purge head.

Two optional adaptors screw into the purge head outlet to adapt both of the purging heads for other manufacturers sampling tubes. The 1/4" Tube Adaptor (783007) provides a standard 1/4" outside diameter tube which can easily be adapted to other fittings or hose. The 1/4" Swagelok Adaptor (783008) contains a 1/4" Swagelok nut for the attachment of 1/4" diameter sample tubes.

Purge & Trap Heads available for other manufacturers systems--call for availability and price.

Features

  • Two styles available
  • Adaptors available for other sample tubes
  • Dry purge gas inlet for drying samples
  • Stainless steel construction
  • Variety of sparging needle sizes available
Part No. OD (in)ID (in)Thickness (in)Cap SealTop SealNeedle SealAcc Sealspkg of Quantity
In Stock
UOM Price Order
783011 Standard Liquid Purge Head, Consists of Purge Head, Needle Adaptor, 1/16in Cap Plug, 1/2in PTFE Ferrule and S.S. Cap (order needle and sample tubes separately)
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$225.00
Qty
783009 Tube Style Purge Head, 0.25in Tube Style, Consists of Purge Head, Needle Adaptor,Swagelok 1/4in to 1/2in Union with Ferrules and 1/16in Cap Plug (order needle and sample tubes separately)
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$225.00
Qty
SS8121 Swagelok 1/2 in Nut
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$8.75
Qty
SS8141 Swagelok 1/2 in Back Ferrule
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$2.75
Qty
T8131 Swagelok 1/2 in PTFE Front Ferrule
------------------------ 11EA$5.02
Qty
SS12M21 Swagelok 12 mm Metric Nut
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$8.62
Qty
SS12M41 Swagelok 12 mm Metric Back Ferrule
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$4.31
Qty
T12M31 Swagelok 12 mm Metric Front Ferrule
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$5.75
Qty
S100P Swagelok 1/16in Stainless Steel Cap Plug
------------------------ 4EA$20.76
Qty
S1021 Swagelok 1/16in Stainless Steel Tubing Cap
------------------------ 5EA$5.21
Qty
SA1001 Needle Adaptor
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$43.00
Qty
781004 PTFE Washers
0.210.120.06YesYesYesYes10 99PK$9.75
Qty
783007 1/4 in Tube Adaptor
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$43.00
Qty
783008 1/4 in Swagelok Adaptor
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$47.00
Qty
781007 S.S. Desorption Tube Cap with 0.040in hole for conditioning Silco Coated tube
------------------------ 161EA$9.95
Qty
164372 Purge Head Adapter, PTFE 24/40 24/25 Liquid Purge Head, Tube style
------------------------ 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. EA$49.50
Qty
