Temperature Controller and Heater Sleeves for Purge and Trap Sampling

Bench Top Temperature Controller Model CT101

Compact Portable Temperature Controller with Thermocouple Feedback Control
Fully Wired with convenient Receptacles for Heater Output and Thermocouple
Single Heating Output with 10 Amp relay output capacity (110 Volt)
Uses Standard J Thermocouple
Double Fused Circuit

Temperature Controller

T he new Model CT101 is a compact bench top temperature controller that can be utilized to supply the heating and temperature controlling of a variety of laboratory accessories. The console is compact, only 5" high x 6" wide x 6" deep. It consists of a high quality Watlow controller with a 10 amp relay output. Feedback and temperature control can be accurately controlled via a standard J type thermocouple (iron-constantan). Temperature can be regulated and monitored via the LED display to +/- 1°C. The controller is normally set up to monitor in degrees C but can be modified for degrees F. A switch on the front panel controls the total power to the system and a separate switch turns off the heater power. Standard features include illuminated power switches, a 3-wire fused cord and a fused output receptacle.

The back panel of the controller contains two separate fuses, one for the total system and the second for the heater output. A 110 volt twist type receptacle provides the outlet for a wide variety of heater accessories. To modify existing heaters for this plug, a twist type plug is available. The thermocouple is attached via a standard thermocouple plug.

Accessory heater plugs & thermocouple plugs are available for connection of other heaters and J-Thermocouples.

Specifications

Power Input

110 Volt
10 amp
3 wire grounded circuit

Power Output

110 Volt
10 amp
fused output

Feedback Thermocouple

J Thermocouple

Part No.	Description	est wt.	Quantity In Stock	Price
UOM=EA
912000	Temperature Controller - Model CT101	10	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$875.00
912001	Accessory Twist Plug Connector	0.25	14	$34.00
912002	Thermocouple Connector	0.25	0^{[*L7]Lead time for this out-of-stock item is approximately 7 days.}	$22.00
[L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item. [L7] Lead time for this out-of-stock item is approximately 7 days.
Ordering information. International (non-US) prices available through your local dealer.

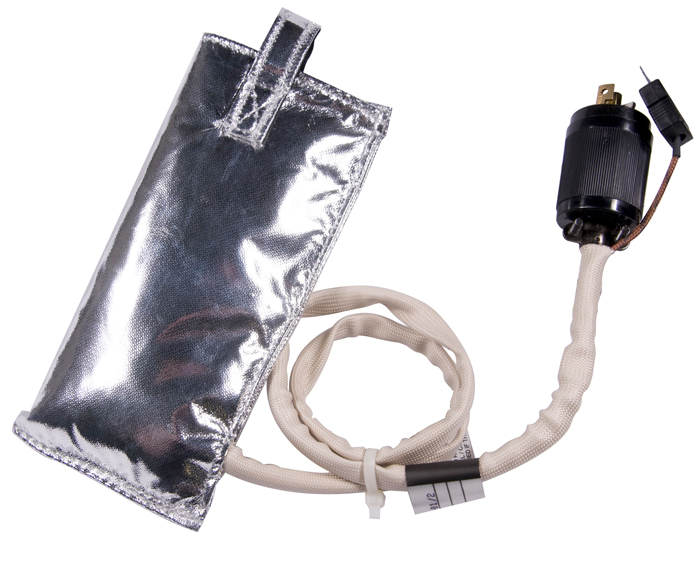

Heater Sleeves for Sample Purging System

Heater sleeve thoroughly surrounds sampling tube for total uniform heating
110 V heater and J thermocouple encased in insulated blanket
Aluminized fiberglass insulated blanket construction
Velcro hanging strap for attachment to purging systems
Two foot long leads terminate in 110V plug and thermocouple plug
Designed for use with the S.I.S. temperature controller
Available in two sizes for the 5.0 ml and 25.0 ml sparging sample vials

The Heater Sleeves for the Purge & Trap System are available in two sizes for the standard sample purging system tubes supplied by S.I.S. They are designed to fit these sampling tubes with the foam breakers. Other sampling tubes can be used, provided they fit tightly into the heater sleeves to provide good surface contact thereby providing for uniform sample heating. The outer facing of the case is constructed of a new aluminized fiberglass insulated material, for a professional appearance. The heating coils inside the blanket sleeve consist of durable, multi-stranded resistance wire that is insulated and knitted over a large surface area into the inner wall of the heater sleeve. In addition a J type thermocouple is encased inside the heater sleeve for accurate temperature measurement and for use in temperature control when used with S.I.S. temperature controller. Both the 24" heater leads and thermocouple leads are encased in a fiberglass sleeve and terminate in a 110 volt twist plug for the heater and a thermocouple plug for the thermocouple. Both of these fittings plug into the back of the S.I.S. temperature controller. A Velcro hanging strap is attached to the heater sleeve for use in attaching the blanket to the purging system. When used with the S.I.S. temperature controller temperatures can be maintained to within 2 degrees C from room temperature to 125 degrees C.

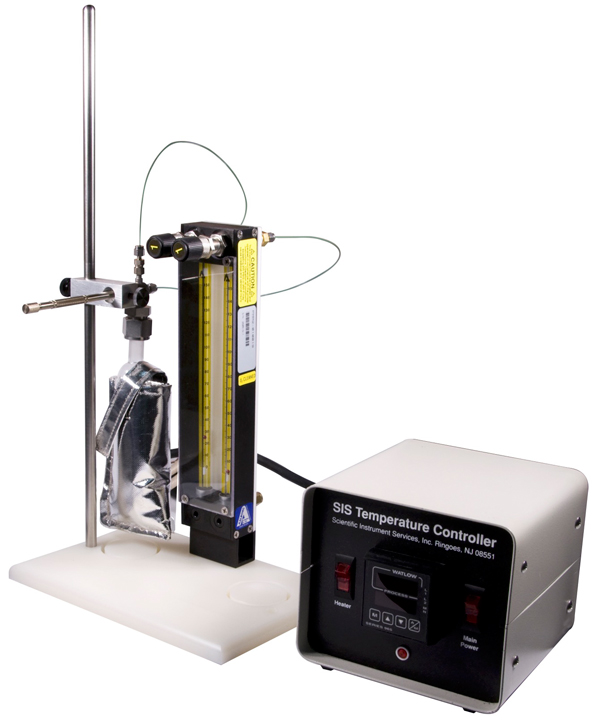

Controller System

Part No.	mL	Length (in)	Width (in)	Watts	Amps	est wt.	Quantity In Stock	Price
Heater Sleeve, VAC=110, UOM=EA
783016	5	5	2	45	0.39	1	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$280.00
783017	25	6.3	3	85	0.74	1	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$290.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.

SIS Catalog Cross Reference
Page #	Part Numbers
C21 - Heated Thermal Desorption Sampling Chambers	912000
C31 - Temperature Controller & Heater Sleeves	783016, 783017, 912000, 912001, 912002
