Desorption Tube Fittings

Desorption Tube Fittings
Hover over image to zoom

Description

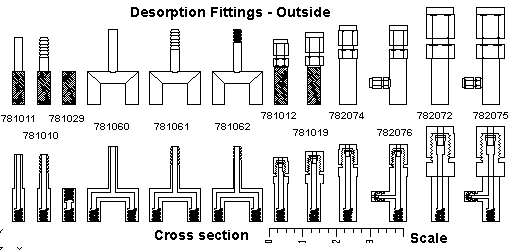

The following list of fittings will adapt our 1/4" O.D. GLT desorption tubes for your particular application.

The GLT desorption tubes are 1/4" O.D. and have a thread size of 1/4" x 48 threads per inch. PTFE seals (781004 ) are normally used at the base of the thread to ensure a seal.

Part No. Description Picture Quantity
In Stock
Price
EA
Order
781011 SS Desorption to 1/4in Tube Connector thumbnail 27$44.00
Qty
781010 S.S. Desorption Tube Hose Connector thumbnail 1$44.00
Qty
781029 S.S. Desorption Tube Union thumbnail 39$44.00
Qty

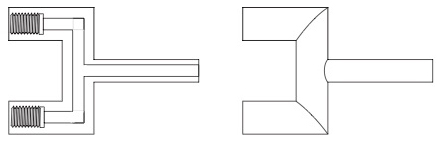

781060 Dual Desorption Tube to 1/4in Tube Connector thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $360.00
Qty

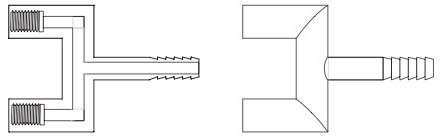

781061 Dual Desorption Tube to Hose Connector thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $360.00
Qty

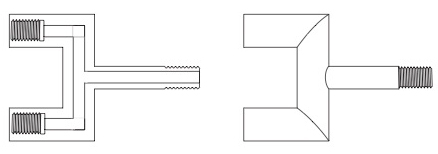

781062 Dual Desorption Tube to Male Desorption Thread thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $360.00
Qty
781012 SS Desorption Tube to 1/8 in Swagelok Connector thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.00
Qty
781019 SS Desorption Tube to 1/4in Swagelok Connector thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.00
Qty
782074 SS Desorption Tube to 0.25in Swagelok Connector thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.00
Qty
782076 SS Desorption Tube to 0.25in Swagelok Connector with 1/16in side purge port thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $178.00
Qty
782072 SS Desorption Tube to 0.5in Swagelok Connector thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $95.00
Qty
782075 SS Desorption Tube to 0.5in Swagelok Connector with 1/16in side purge port thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $173.00
Qty
